GENERATOR

GS500 2001 (K1) USA (E03)

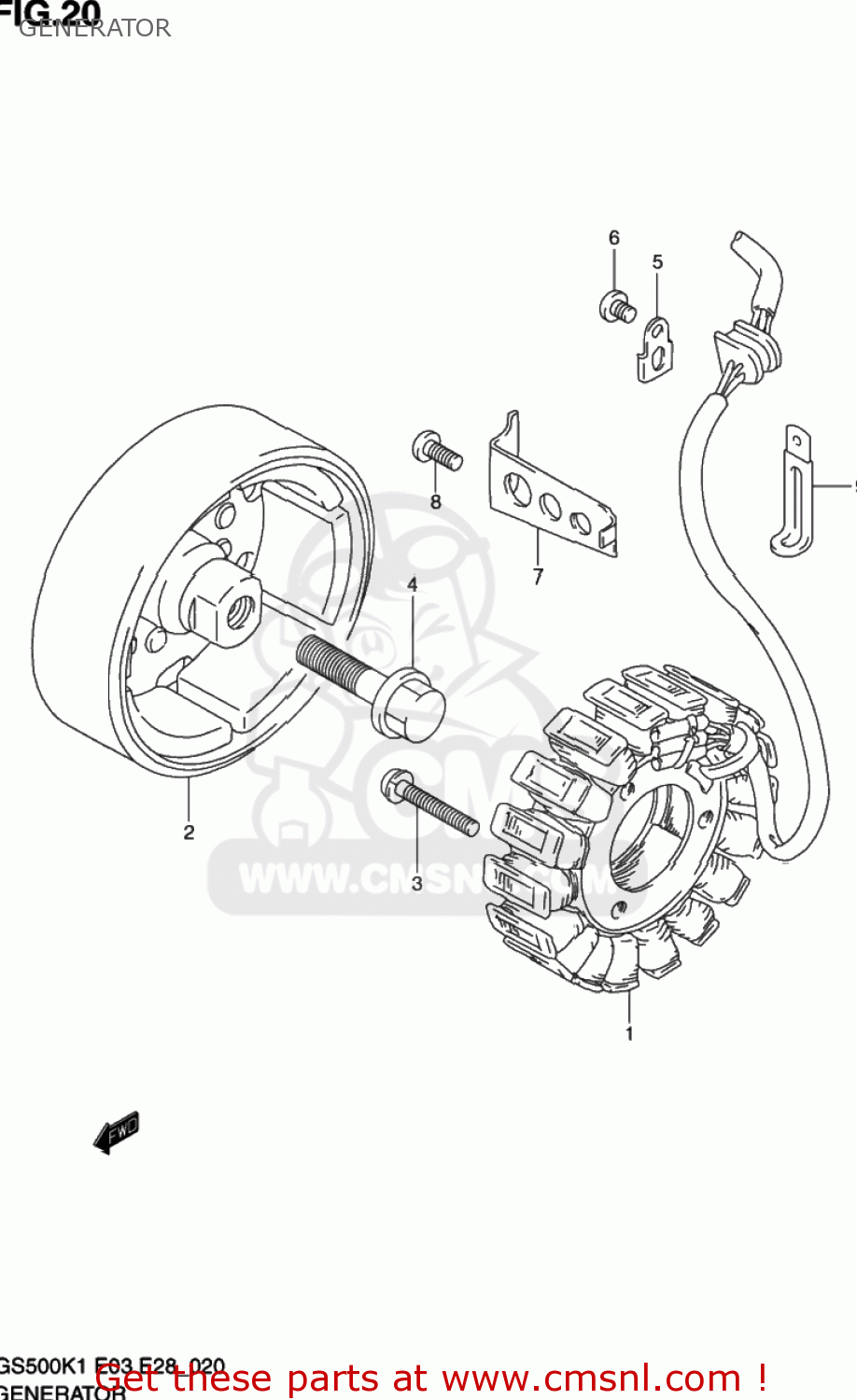

Generator diagram GS500 2001 (K1) USA (E03)

GENERATOR GS500 2001 (K1) USA (E03)

GENERATOR GS500 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3140101D10
ref: 1

STARTER ASSY

€ 405.00

2

3140201D00
ref: 2

ROTOR

€ 356.50

3

0211235303
ref: 3
02112-3530A

SCREW

€ 2.50

4

0910312004
ref: 4

BOLT(12X40)

€ 3.00

5

3149745000
ref: 5

CLAMP,GENERATOR LEAD WIRE

€ 1.50

6

0211205083
ref: 6
02112-0508A

SCREW

€ 2.00

7

3149845000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 2.00

8

0211206103
ref: 8
02112-0610B

SCREW

€ 1.50

9

0940406432
ref: 9

CLAMP(L:65)

€ 2.50
