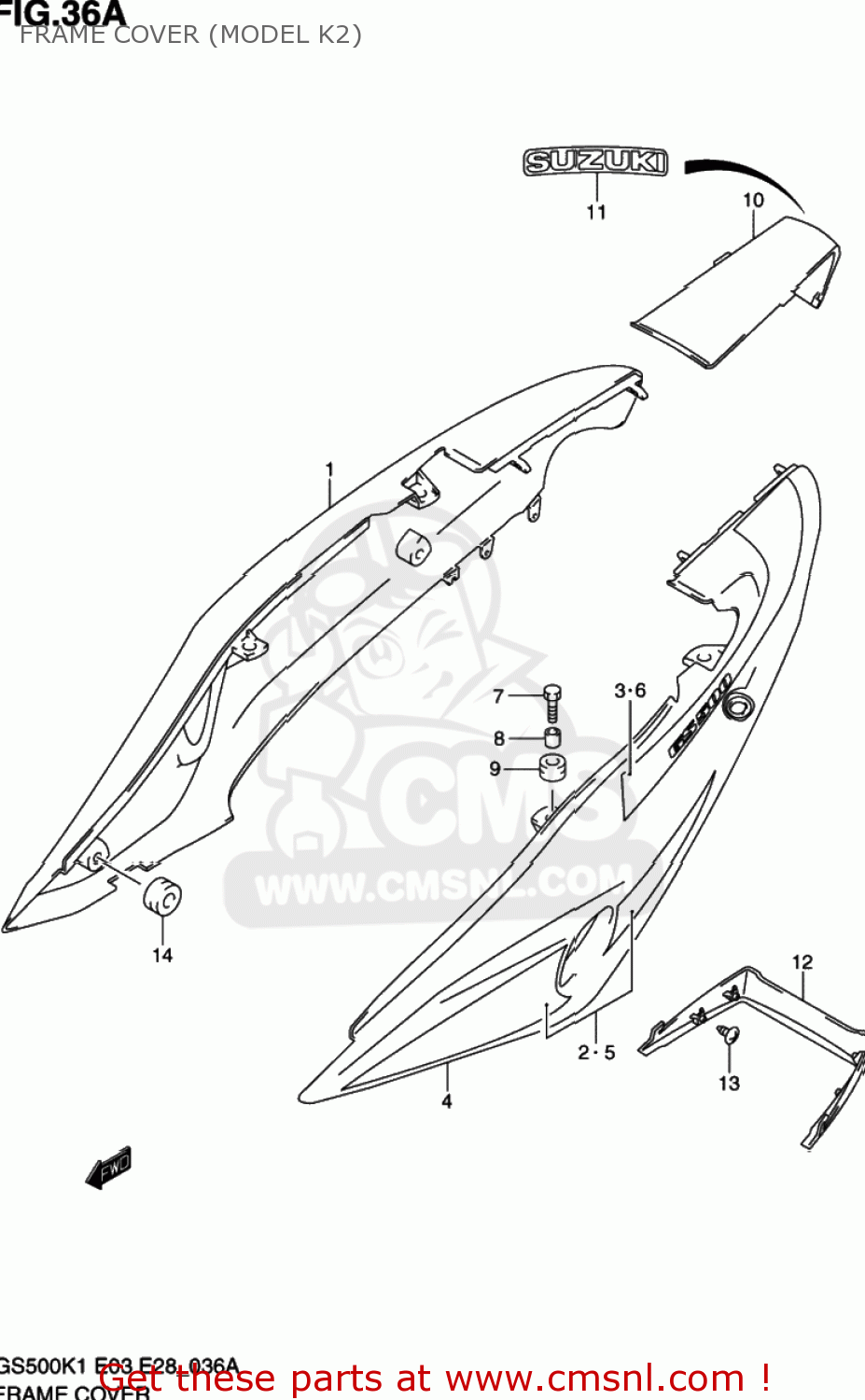

FRAME COVER (MODEL K2)

ref

part #

description

quantity

1-1

4711001DK0YD8
ref: 1-1

COVER,FRAME,R(SILVER)

€ 209.00

1-2

4711001DK0YUX
ref: 1-2

COVER,FRAME,R(SILVER)

€ 222.00

2-1

6813001D90FP2
ref: 2-1

TAPE SET,FRAME COVER,R

€ 29.00

2-2

6813001D90GZ8
ref: 2-2

TAPE SET,FRAME COVER,R

€ 34.00

3

6813501D40HJ5
ref: 3

TAPE,FRAME COVER,R

€ 31.00

4-1

4721001DK0YD8
ref: 4-1

COVER,FRAME,L(SILVER)

€ 186.00

4-2

4721001DKOYUX
ref: 4-2

COVER, FRAME LH (SILVER) FOR YC2

€ 0.00

5-1

6814001D90FP2
ref: 5-1

TAPE SET,FRAME COVER,L

€ 20.00

5-2

6814001D90GZ8
ref: 5-2

TAPE SET,FRAME COVER,L

€ 25.50

6

6814501D40HJ5
ref: 6

TAPE,FRAME COVER,L

€ 32.50

7

0911606010
ref: 7

BOLT(6X20)

€ 2.00

8

0918006263
ref: 8

SPACER(6.5X9X9)

€ 2.00

9

0932009016
ref: 9

CUSHION

€ 2.50

10

4731001D50YD8
ref: 10

COVER,FRAME CTR

€ 36.50

11

6816501D00Y7L
ref: 11

EMBLEM(BLACK)

€ 6.50

12

4732101DA0
ref: 12
47321-01DA0-NE2

COVER, FRAME LOWER

€ 31.00

13

0354104103
ref: 13
03541-0410A

SCREW

€ 1.50

14

0932008018
ref: 14

CUSHION

€ 4.00
