SIGNAL GENERATOR

GS500 2001 (K1) USA (E03)

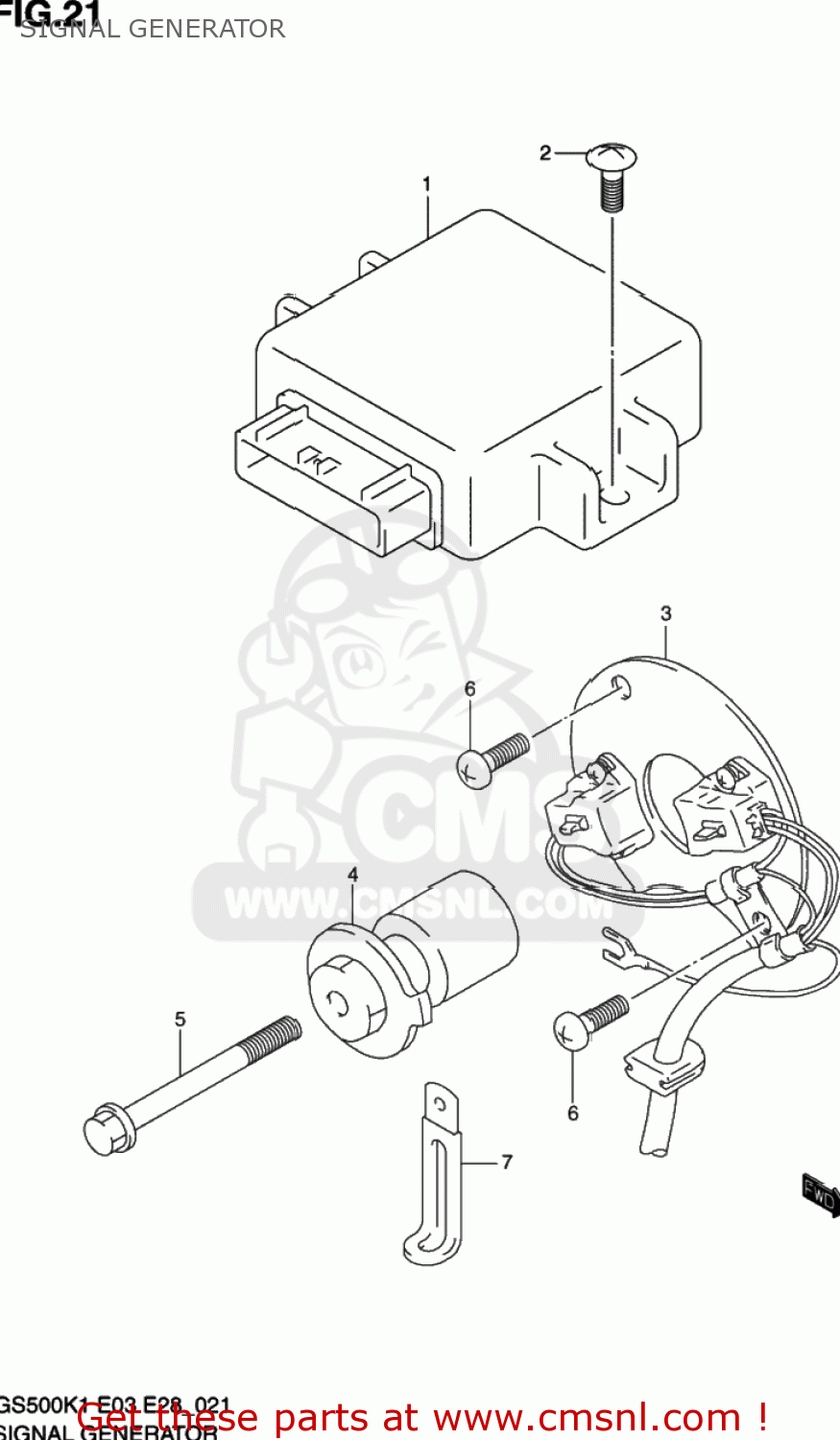

Signal generator diagram GS500 2001 (K1) USA (E03)

SIGNAL GENERATOR GS500 2001 (K1) USA (E03)

SIGNAL GENERATOR GS500 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3290001D10
ref: 1

IGNITER ASSEMBLY

€ 369.50

2

0214206163
ref: 2
02142-0616A

SCREW

€ 2.50

3

3311044420
ref: 3

SIGNAL GENERATOR ASSY

€ 292.50

4

3312001D10
ref: 4

ROTOR,SIGNAL

€ 68.50

5

0910306064
ref: 5

BOLT(6X60)

€ 2.50

6

0211205103
ref: 6
02112-0510A

SCREW

€ 2.00

7

0940406432
ref: 7

CLAMP(L:65)

€ 2.50
