HEADLAMP

GS500 2001 (K1) USA (E03)

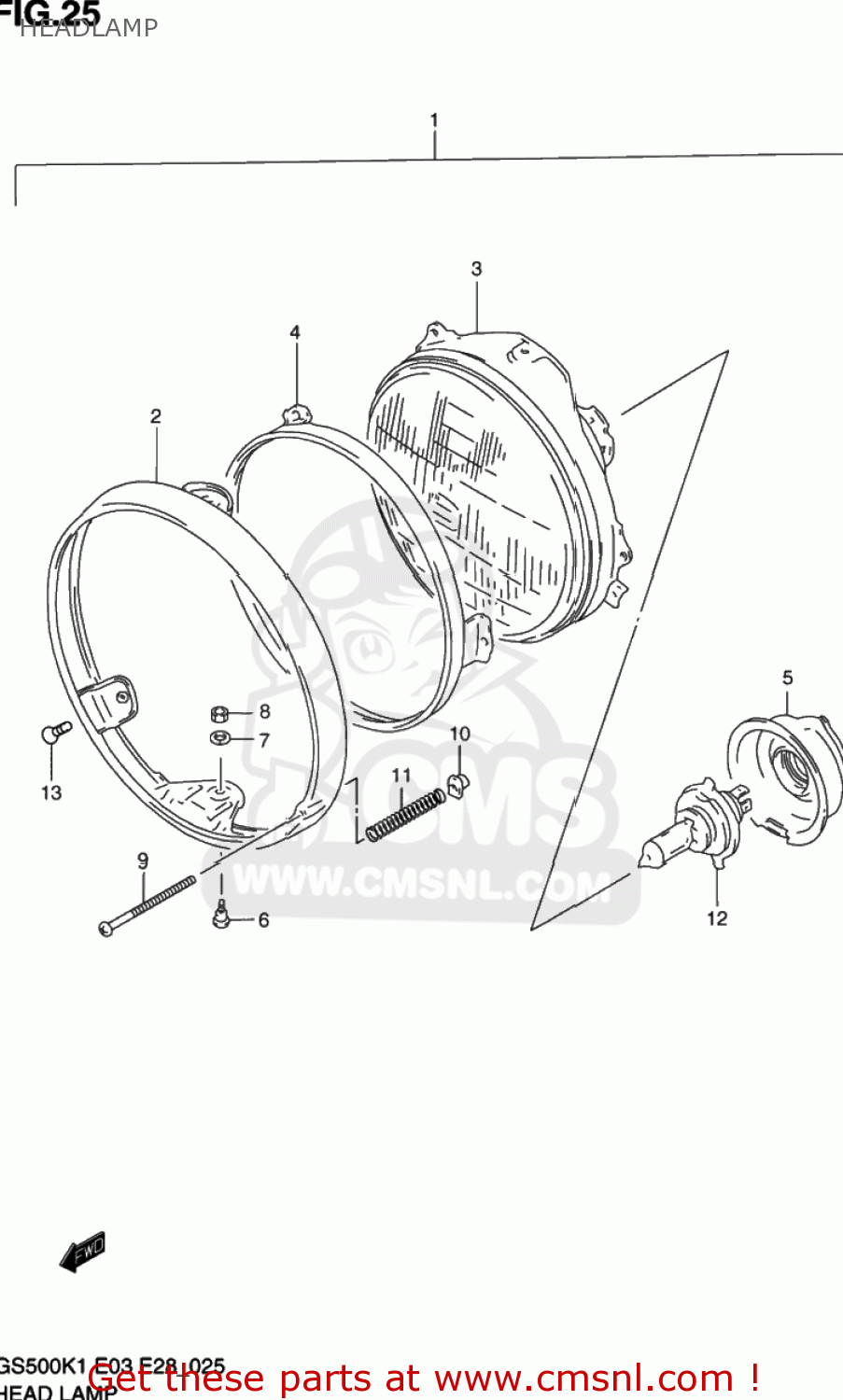

Headlamp diagram GS500 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

HEADLAMP ASSY

€ 244.00

3511101D20
ref: 2

RIM,HEADLAMP

€ 55.50

3512110D30
ref: 3

LAMP UNIT

€ 113.00

3512710D20
ref: 4

RING

€ 22.00

3517320A01
ref: 5

COVER,SOCKET

€ 14.50

3518115611
ref: 6

H/LAMP LENS UNIT FITING SCRE

€ 3.00

0832101057
ref: 7
08321-0105A

WASHER,LOCK

€ 2.00

0831000043
ref: 8
08310-0004A

NUT

€ 2.00

3515145900
ref: 9

SCREW

€ 4.00

3515215611
ref: 10

NUT

€ 3.50

3515431900
ref: 11

SPRING,ADJUSTING

€ 3.50

0947112060
ref: 12

BULB(12V60/55W,H4)

€ 8.00

0912605003
ref: 13

SCREW(5X12)

€ 2.50
