FUEL COCK

GS500 2001 (K1) USA (E03)

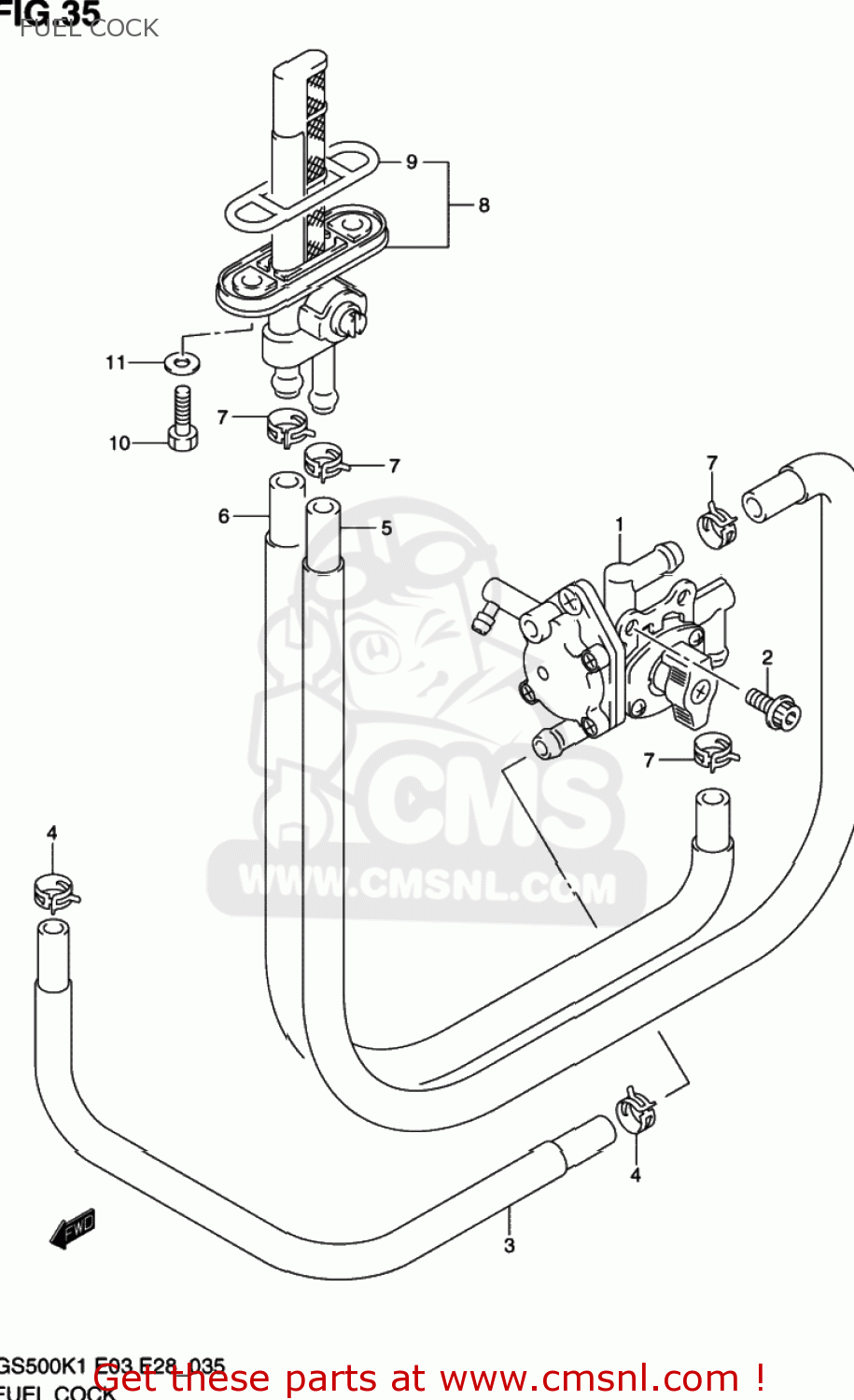

Fuel cock diagram GS500 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

4430001D30
ref: 1

COCK ASSY,FUEL NO.1

€ 146.50

0712006103
ref: 2
07120-0610B

BOLT

€ 2.00

4444301D10
ref: 3

HOSE,FUEL

€ 21.50

0940111407
ref: 4
09401-11415

CLIP

€ 2.50

4444201D20
ref: 5

HOSE,FUEL ON

€ 27.50

4444101D20
ref: 6

HOSE,FUEL RESERVE

€ 31.50

0940110409
ref: 7

CLIP

€ 2.50

4430001D10
ref: 8

COCK ASSY,FUEL NO.1

€ 129.50

4434828070
ref: 9

O RING,FUEL COCK

€ 4.50

10-1

3482603F00
ref: 10-1
09128-06086

BOLT,FUEL LEVEL GAUGE

€ 3.00

10-2

0912806086
ref: 10-2

BOLT(6X20)

€ 3.00

0916806026
ref: 11

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50
