FRAME
GS500 2001 (K1) USA (E03)

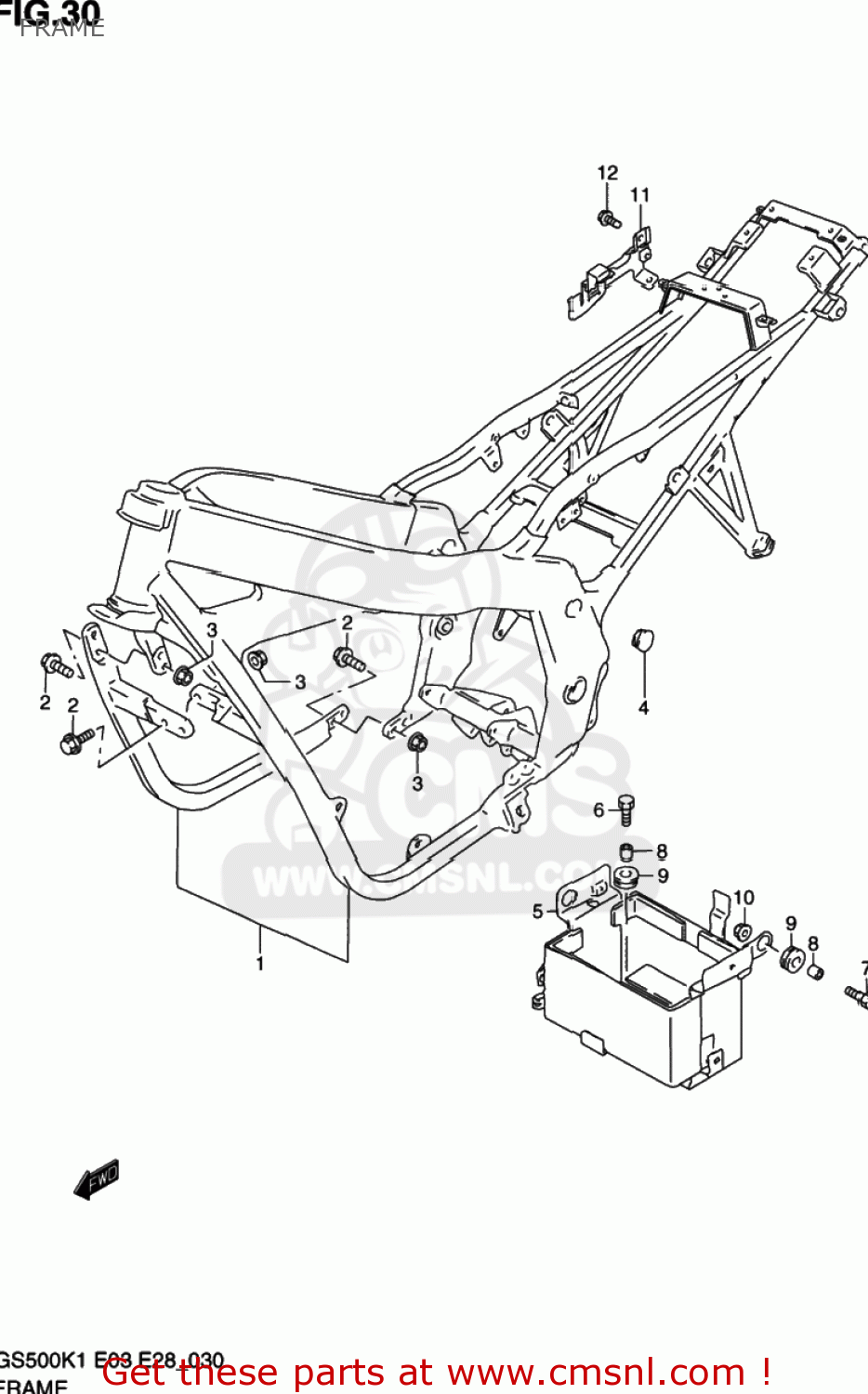

Frame diagram GS500 2001 (K1) USA (E03)
FRAME GS500 2001 (K1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
411020188013L
ref: 1
FRAME
€ 1,843.00
2
0910310334
ref: 2
BOLT(10X35)
€ 8.50
3
0831931107
ref: 3
NUT
€ 3.00
4
4358501D00
ref: 4
CAP,BODY FRAME
€ 5.00
5
4154001D31
ref: 5
HOLDER,BATTERY
€ 77.50
6
0911606167
ref: 6
BOLT(6X20)
€ 2.00
7
0911606168
ref: 7
BOLT(6X16)
€ 2.50
8
0918006038
ref: 8
SPACER(6.1X9X7.5)
€ 2.00
9
0932008021
ref: 9
CUSHION
€ 4.00
10
0831320063
ref: 10
08313-2006A
NUT
€ 2.00
11
4741001D10
ref: 11
HOLDER,ELECTRIC PARTS
€ 11.50
12
0155006163
ref: 12
01550-0616A
BOLT
€ 2.50
