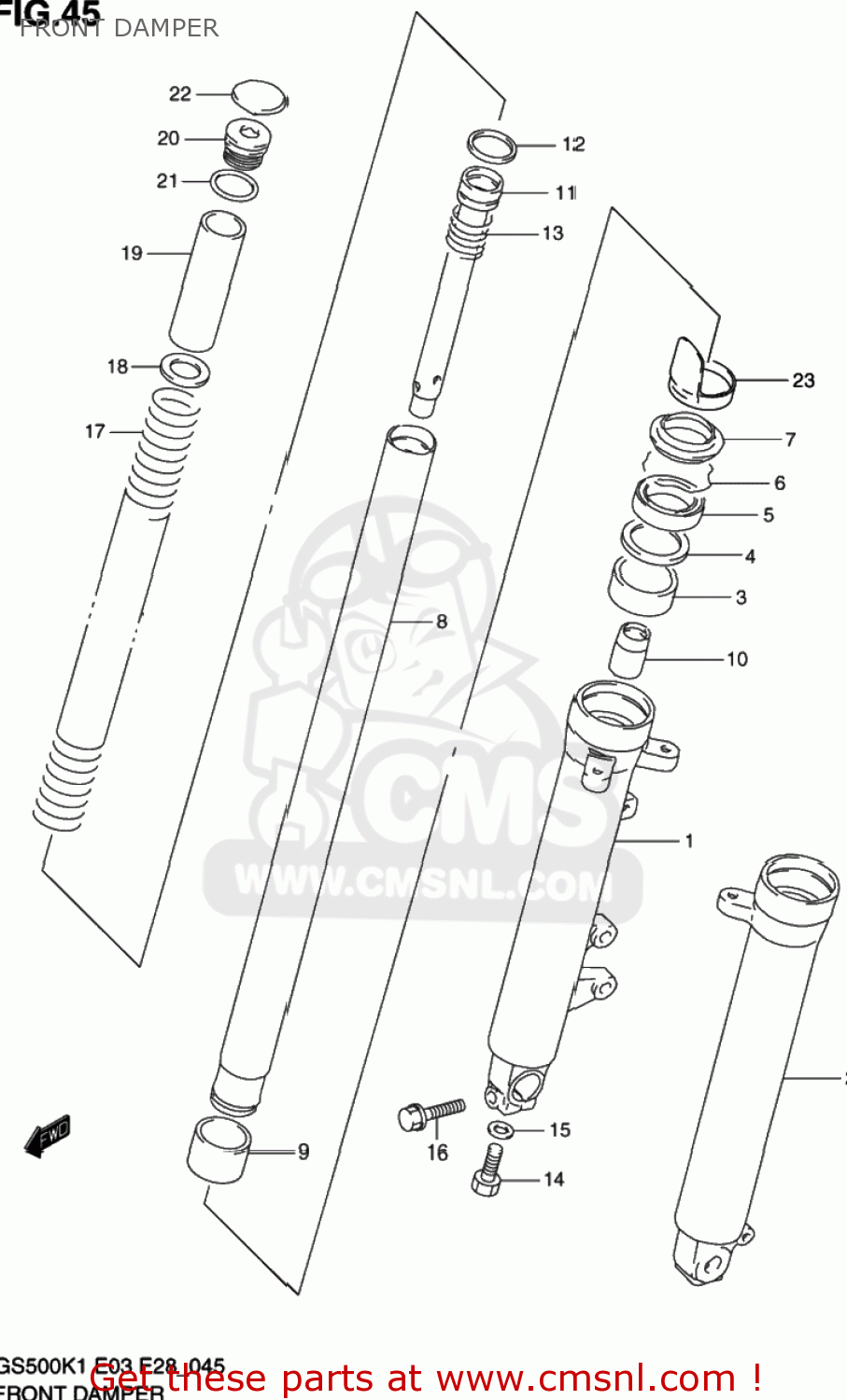

FRONT DAMPER

ref

part #

description

quantity

5110301DA0
ref:

DAMPER ASSY,FR FORK,R

€ 0.00

5110401DA0
ref:

DAMPER ASSY,FR FORK,L

€ 0.00

1

5113001DA0
ref: 1

TUBE,OUTER,R

€ 404.50

2

5114001DA0
ref: 2

TUBE,OUTER,L

€ 424.00

3

5116701D00
ref: 3

METAL,SLIDE

€ 10.50

4

5115849500
ref: 4

WASHER

€ 4.00

5

5115326F00
ref: 5

SEAL,OIL

€ 13.50

6

5115640301
ref: 6

RING,STOPPER

€ 4.50

7

5117326F00
ref: 7

SEAL,DUST

€ 17.50

8

5111001D00
ref: 8

TUBE,INNER

€ 372.00

9

5112101D00
ref: 9

PISTON

€ 11.50

10

5119501D00
ref: 10

PIECE,OIL LOCK

€ 16.50

11

5114601D00
ref: 11

CYLINDER

€ 102.50

12

5119613A10
ref: 12

RING,PISTON

€ 7.00

13

5117701D00
ref: 13

SPRING,REBOUND

€ 8.00

14

5114716510
ref: 14

BOLT,FORK CYLINDER(10X25)

€ 3.50

15

5114841310
ref: 15

GASKET (NAS)

€ 2.50

16

0155008407
ref: 16

BOLT

€ 3.50

17

5117101D00
ref: 17

SPRING

€ 64.00

18

5117201D00
ref: 18

WASHER

€ 5.00

19

5117601D00
ref: 19

SPACER

€ 11.50

20

5135101D30
ref: 20

BOLT,FORK

€ 37.00

21

5111740300
ref: 21

O RING

€ 2.50

22

5118930520
ref: 22

CAP,FR FORK

€ 11.50

23

5120101DA0
ref: 23

PROTECTOR,FR FORK

€ 19.50

all assemblies
