AIR CLEANER

GS500F 2007 (K7) USA (E03)

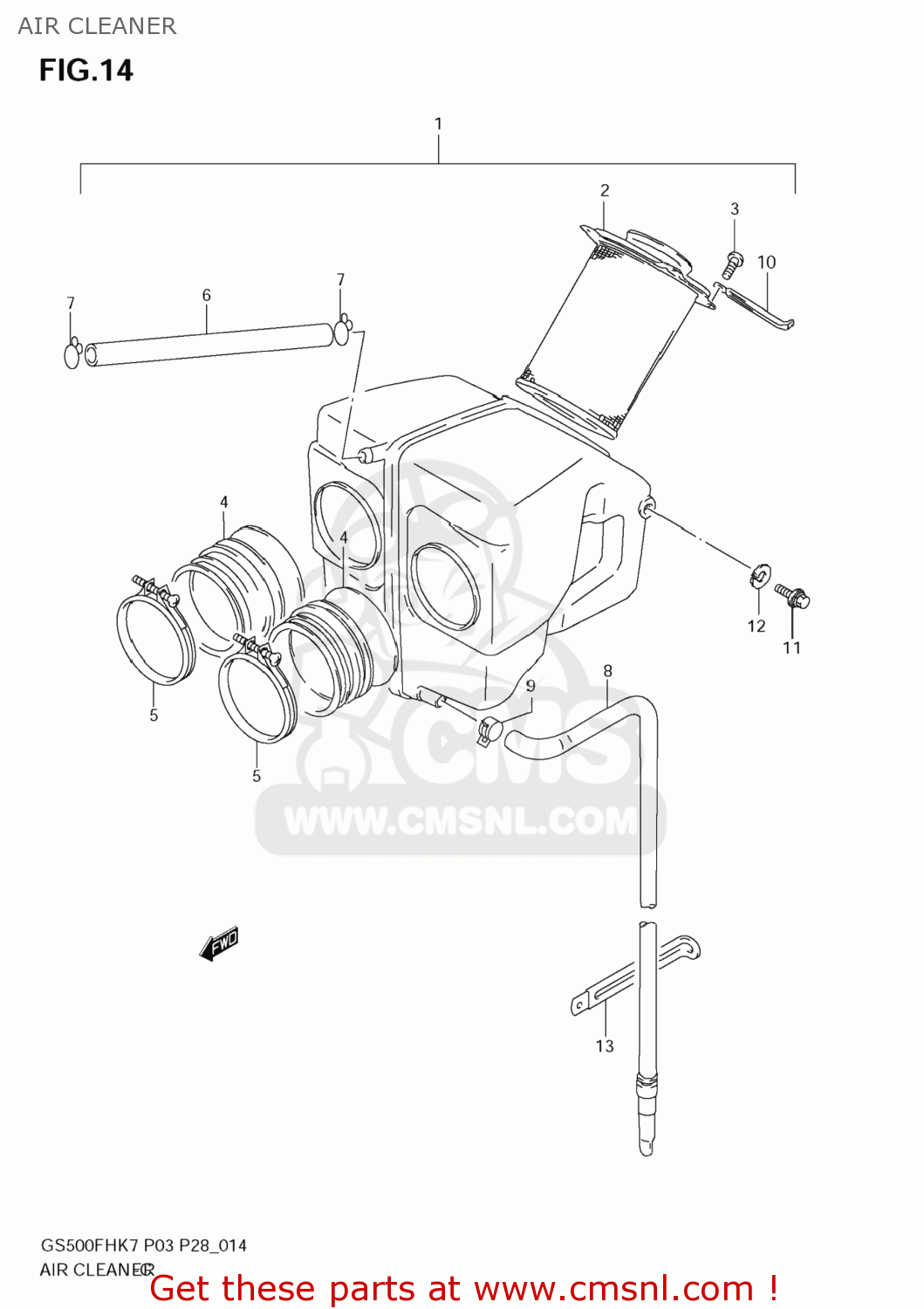

Air cleaner diagram GS500F 2007 (K7) USA (E03)

AIR CLEANER GS500F 2007 (K7) USA (E03)

AIR CLEANER GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1370001D90
ref: 1

CLEANER ASSY,AIR

€ 169.00

2

1378001D00
ref: 2

FILTER ASSY

€ 30.50

3

0214205087
ref: 3

SCREW

€ 2.00

4

1388101D60
ref: 4

TUBE,OUTLET

€ 18.50

5

0940264203
ref: 5

CLAMP

€ 6.00

6

0935211153600
ref: 6

HOSE(11X15X600)

€ 13.50

7

0940114301
ref: 7

CLIP

€ 2.00

8

1387021458
ref: 8

TUBE,DRAIN

€ 23.50

9

0940113409
ref: 9

CLIP

€ 2.50

10

0940406432
ref: 10

CLAMP(L:65)

€ 2.50

11

D15570616B
ref: 11

BOLT UH125&200

€ 1.00

12

D83215106B
ref: 12

WASHER

€ 3.00

13

0940406433
ref: 13

CLAMP(L:80)

€ 3.00
