SIGNAL GENERATOR

GS500F 2007 (K7) USA (E03)

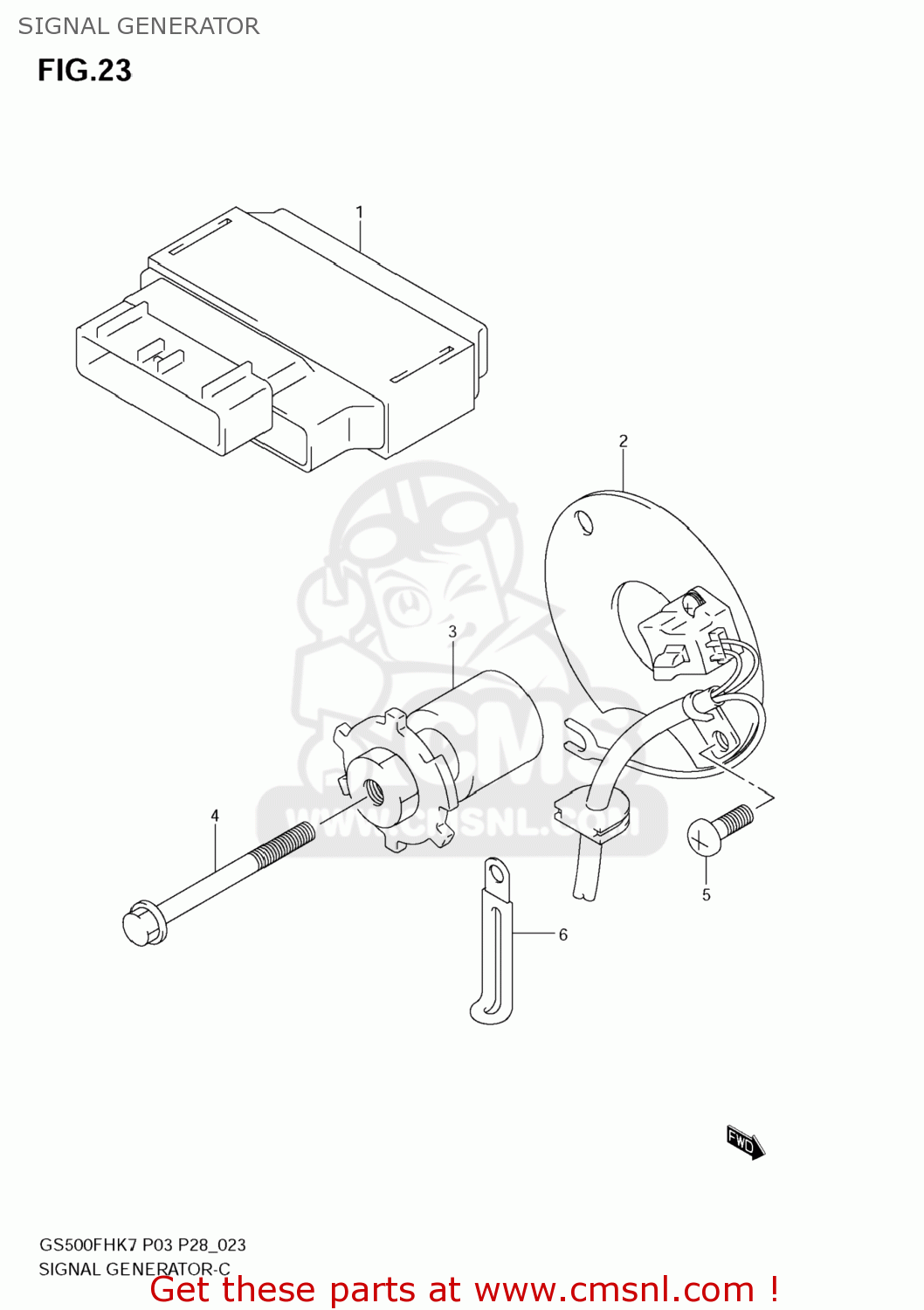

Signal generator diagram GS500F 2007 (K7) USA (E03)

SIGNAL GENERATOR GS500F 2007 (K7) USA (E03)
SIGNAL GENERATOR GS500F 2007 (K7) USA (E03)
SIGNAL GENERATOR GS500F 2007 (K7) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
3290001DB0
ref: 1
IGNITOR ASSY
€ 0.00
2
3311001D00
ref: 2
SIGNAL GENERATOR ASSY
€ 205.50
3
3312001D30
ref: 3
ROTOR,SIGNAL
€ 0.00
4
0910306064
ref: 4
BOLT(6X60)
0910306064
€ 2.50
5
021120510B
ref: 5
SCREW
021120510B
€ 2.00
6
0940406429
ref: 6
CLAMP(L:45)
€ 2.50
