UNDER COWLING INSTALLATION PARTS (WITH COWLING)

GS500F 2007 (K7) USA (E03)

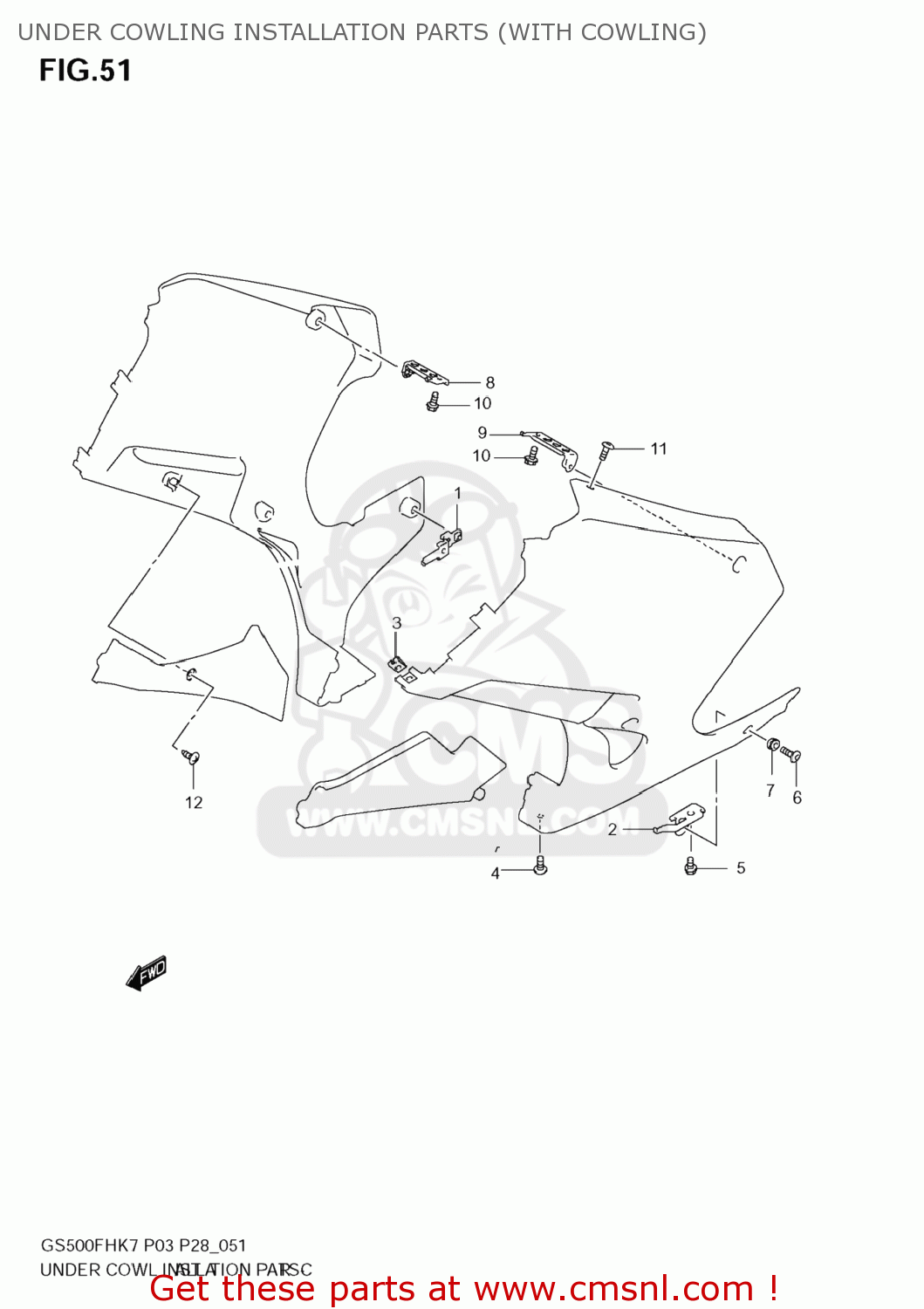

Under cowling installation parts (with cowling) diagram GS500F 2007 (K7) USA (E03)

UNDER COWLING INSTALLATION PARTS (WITH COWLING) GS500F 2007 (K7) USA (E03)

UNDER COWLING INSTALLATION PARTS (WITH COWLING) GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

9458001D00E0N
ref: 1

BRACKET,LOWER

€ 2.50

2

9459001D00E0N
ref: 2

BRACKET, LOWER

€ 2.50

3

0968924603
ref: 3

NUT

€ 1.00

4

9447935F00
ref: 4

CLIP

€ 3.50

5

D15570612B
ref: 5

BOLT

€ 1.00

6

0913906126
ref: 6

SCREW(6X20)

€ 4.00

7

0932009016
ref: 7

CUSHION

€ 2.50

8

9456001D00E0N
ref: 8

BRACKET,REAR R

€ 3.00

9

9457001D00E0N
ref: 9

BRACKET,REAR L

€ 3.00

10

D15570612B
ref: 10

BOLT

€ 1.00

11

0913905077
ref: 11

SCREW(5X16)

€ 3.50

12

035410516B
ref: 12

SCREW

€ 2.00
