BODY CWL INSTALLATION PARTS (WITH COWLING)

GS500F 2007 (K7) USA (E03)

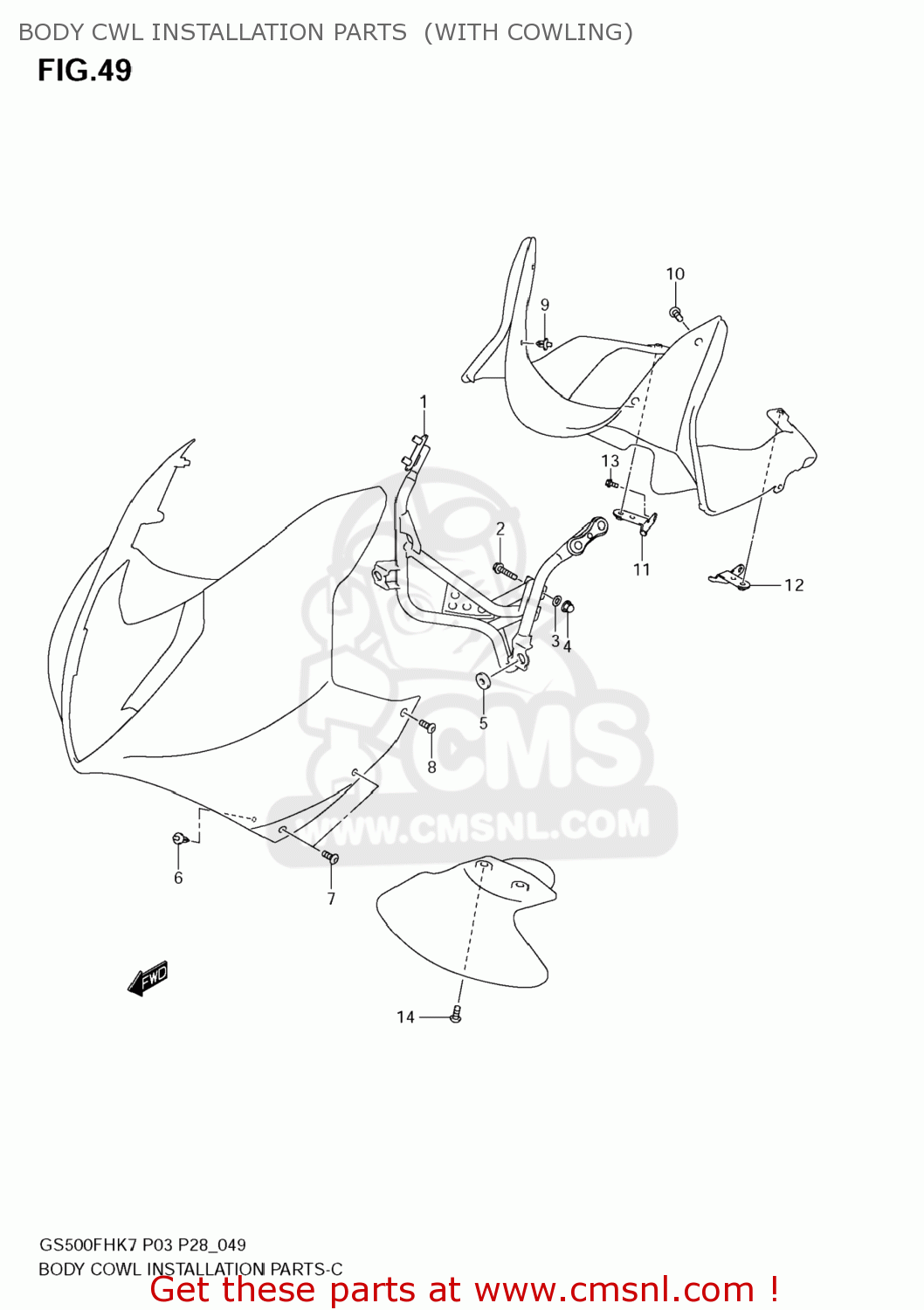

Body cwl installation parts (with cowling) diagram GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

9451001D00ENM
ref: 1

BRACE, COWLING

€ 133.00

015500835B
ref: 2

BOLT

€ 3.50

D83220108B
ref: 3

WASHER

€ 3.00

083132008B
ref: 4

NUT

€ 2.50

0932008028
ref: 5

CUSHION

€ 2.50

09409063145PK
ref: 6

CLIP(BLACK)

€ 3.50

0913905064
ref: 7

SCREW(5X13)

€ 2.50

0913905077
ref: 8

SCREW(5X16)

€ 3.50

09409063145PK
ref: 9

CLIP(BLACK)

€ 3.50

0913205053
ref: 10

SCREW(5X16)

€ 2.50

9442001D00E0N
ref: 11

BRACKET, UPPER RH

€ 2.00

9443001D00E0N
ref: 12

BRACKET,UPPER

€ 2.00

D15570612B
ref: 13

BOLT

€ 1.00

6316143E00
ref: 14

BOLT

€ 3.00
