CYLINDER HEAD
GS500F 2007 (K7) USA (E03)

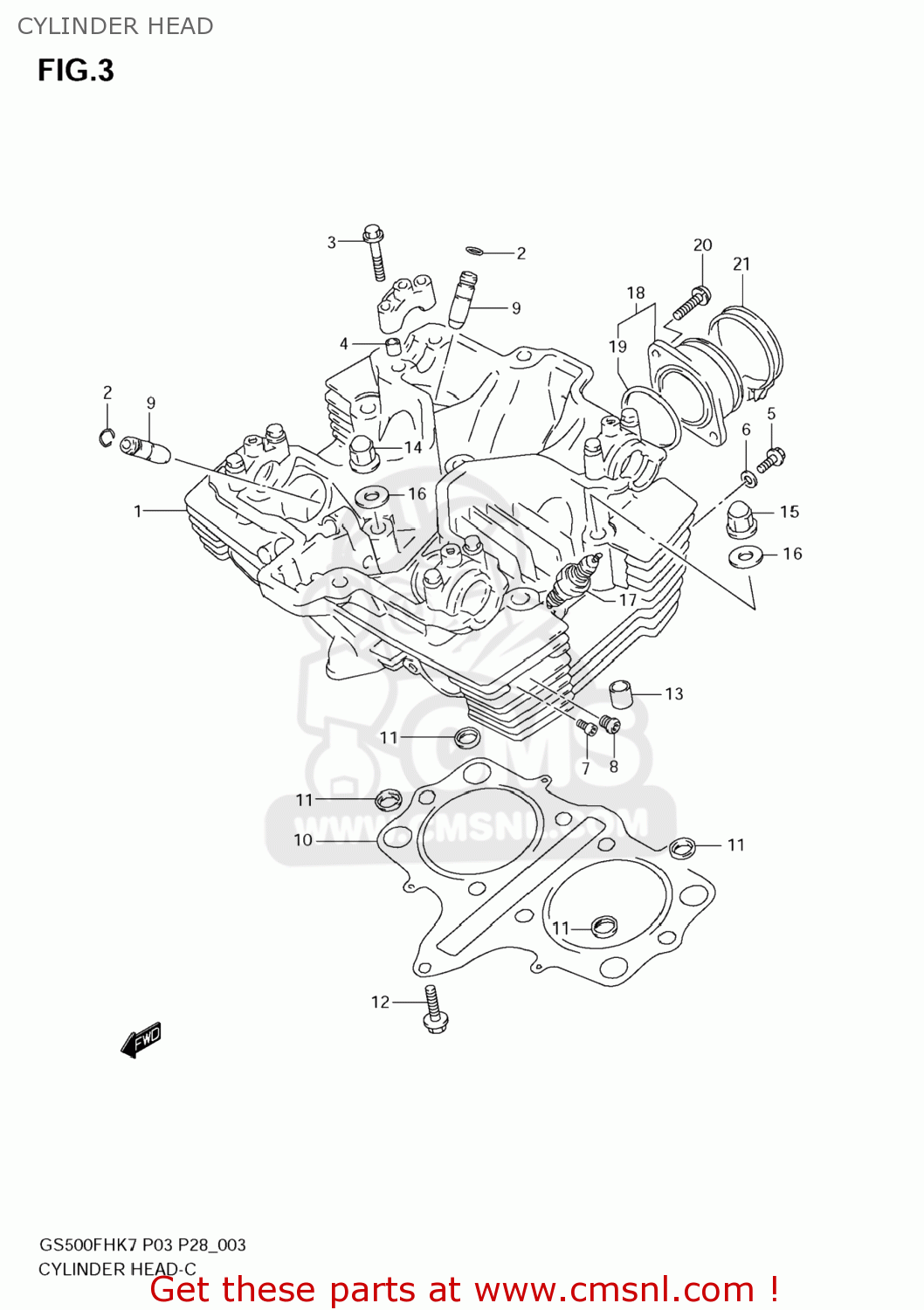

Cylinder head diagram GS500F 2007 (K7) USA (E03)
CYLINDER HEAD GS500F 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110001D60
ref: 1
HEAD ASSY,CYLINDER
€ 1,534.00
2
0938110003
ref: 2
RING,SNAP
€ 2.50
3
0910306026
ref: 3
BOLT(6X39)
€ 2.00
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
015500612B
ref: 5
BOLT
€ 2.50
6
0916806023
ref: 6
GASKET(5.8X13X1.2) (NAS)
€ 2.00
7
0910606075
ref: 7
BOLT(6X12)
€ 2.50
8
0924810010
ref: 8
PLUG(10X10)
€ 4.00
9
1111545740
ref: 9
GUIDE,INTAKE VALVE
€ 25.50
10
1114101D11
ref: 10
GASKET,CYLINDER HEAD (NAS)
€ 35.00
11
1114306B00
ref: 11
O RING,HEAD GASKET
€ 8.00
12
015500630B
ref: 12
BOLT
€ 2.00
13
0421111169
ref: 13
PIN
€ 2.00
14
0915910069
ref: 14
NUT
€ 5.00
15
0915910026
ref: 15
NUT
€ 6.00
16
0916810031
ref: 16
GASKET(10.2X20X2).3 (NAS)
€ 2.00
17-1
0948200334
ref: 17-1
PLUG,SPARK(DPR8EA-9)
€ 4.00
17-2
0948200335
ref: 17-2
PLUG,SPARK(X24EPR-U9)
€ 4.00
18
1310101D40
ref: 18
PIPE ASSY,INTAKE
€ 43.00
19
0928040010
ref: 19
O RING(D:2.4,ID:39.7)
€ 3.50
20
021121616B
ref: 20
SCREW
€ 2.50
21
0940254208
ref: 21
CLAMP
€ 5.00
