FRAME

GS500F 2007 (K7) USA (E03)

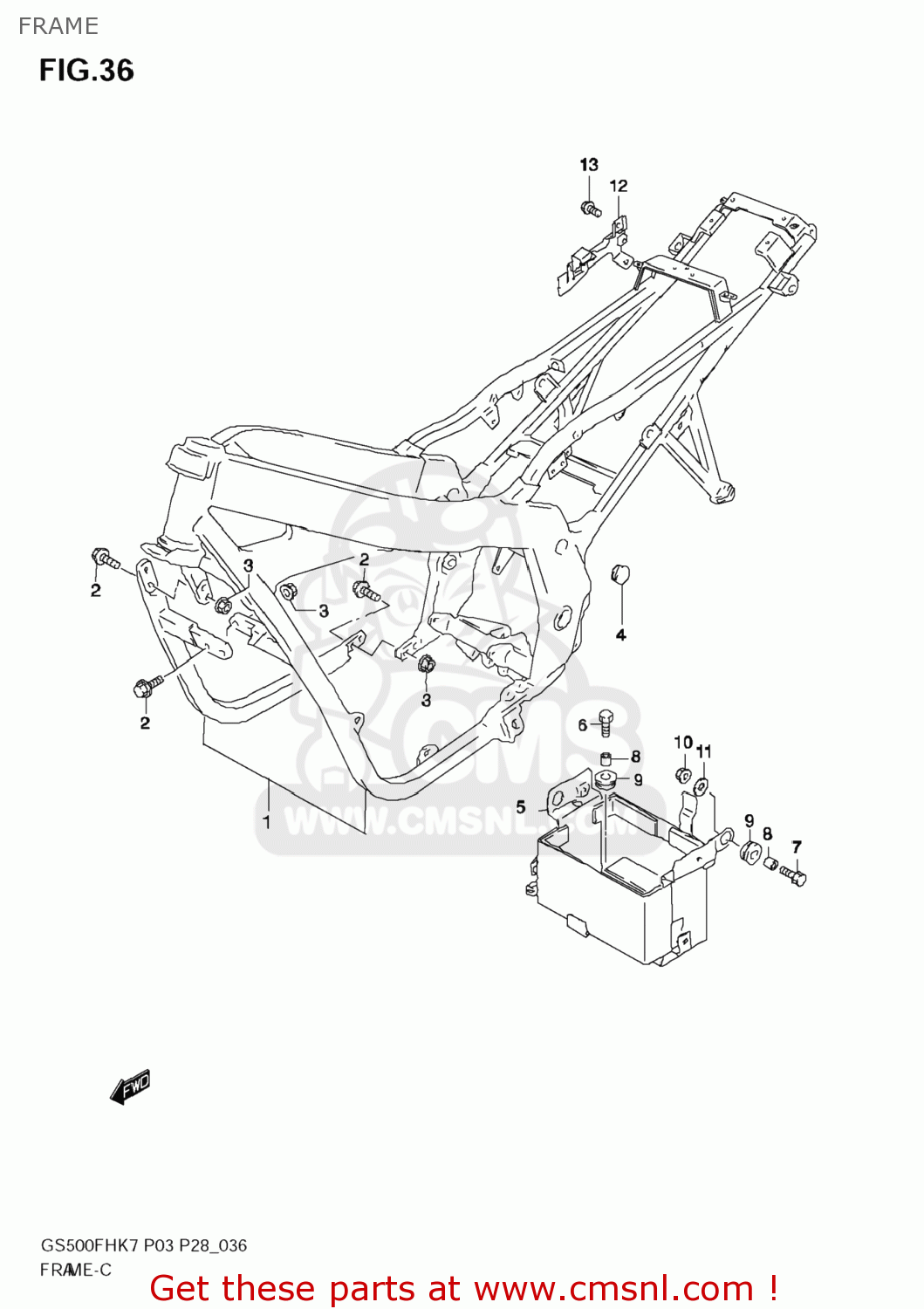

Frame diagram GS500F 2007 (K7) USA (E03)

FRAME GS500F 2007 (K7) USA (E03)

FRAME GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110001D80ENM
ref: 1-1

FRAME SET

€ 1,341.50

1-2

4110001D90ENM
ref: 1-2

FRAME SET

€ 1,164.00

2

015501035B
ref: 2

BOLT

€ 3.50

3

083193110B
ref: 3

NUT

€ 3.00

4

4358501D90
ref: 4

CAP,BODY FRAME

€ 4.50

5-1

4154001D50
ref: 5-1
41540-01D60

HOLDER, BATTERY

€ 40.50

5-2

4154001D60
ref: 5-2

HOLDER,BATTERY

€ 40.50

6

0911606008
ref: 6
09116-06168

BOLT 6X16

€ 2.50

7

0911606083
ref: 7
09116-06167

BOLT

€ 2.00

8

0918006038
ref: 8

SPACER(6.1X9X7.5)

€ 2.00

9

0932008007
ref: 9
09320-08021

CUSHION

€ 4.00

10

D83133006B
ref: 10

NUT

€ 3.00

11

D83220106B
ref: 11

WASHER GS500/K

€ 2.00

12

4741001D11
ref: 12

HOLDER,ELECTRIC PARTS

€ 17.50

13

D15570616B
ref: 13

BOLT UH125&200

€ 1.00
