CYLINDER HEAD COVER

GS500F 2007 (K7) USA (E03)

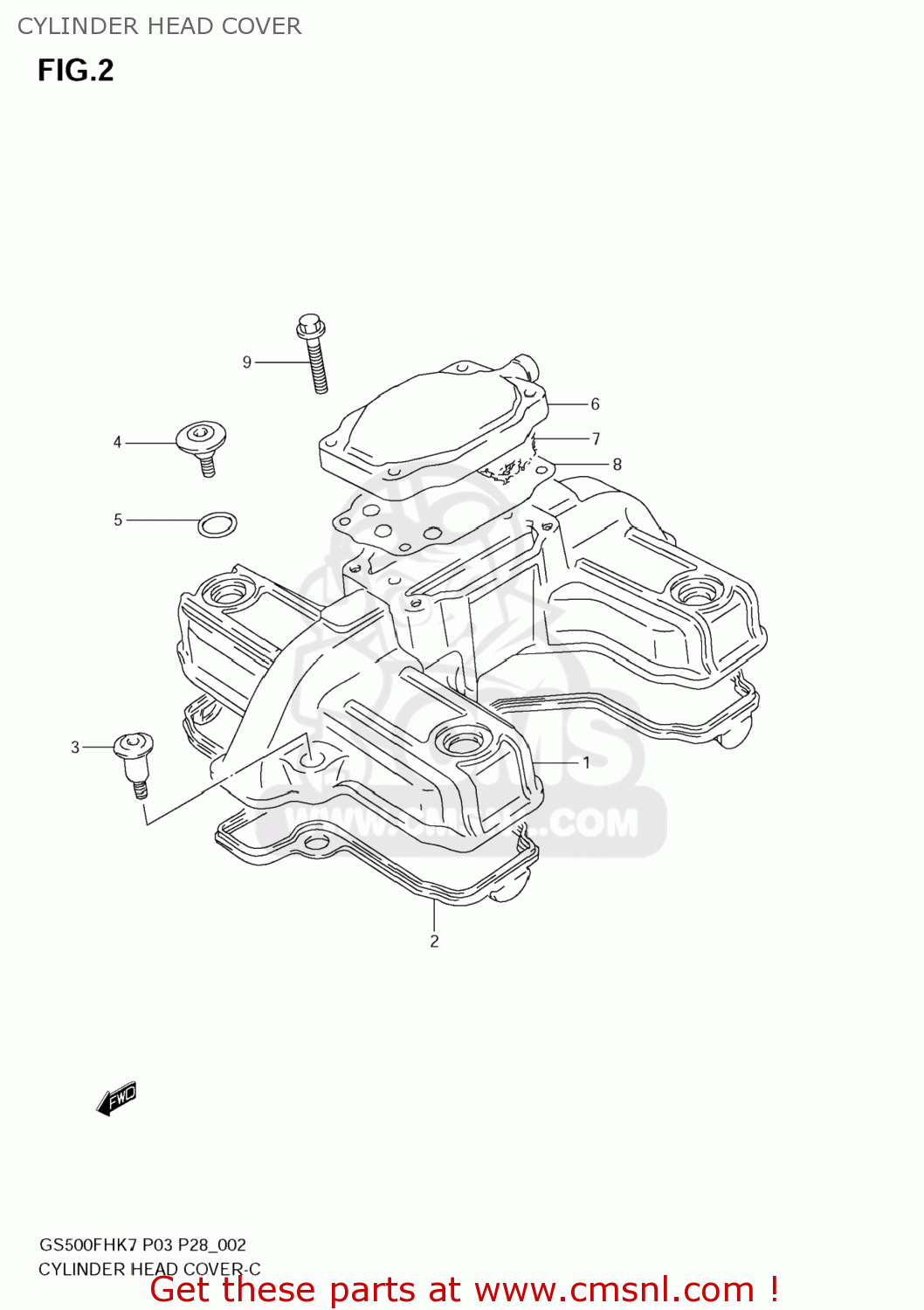

Cylinder head cover diagram GS500F 2007 (K7) USA (E03)

CYLINDER HEAD COVER GS500F 2007 (K7) USA (E03)

CYLINDER HEAD COVER GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1117101D02
ref: 1

COVER,CYLINDER HEAD

€ 201.00

2

1117301D00
ref: 2

GASKET,CYL HEAD COVER (NAS)

€ 32.50

3

0910607010
ref: 3

BOLT(7X31)

€ 4.50

4

0910607009
ref: 4

BOLT(7X17.5)

€ 4.50

5

0928015006
ref: 5

O RING(D:1.9,ID:14.5)

€ 3.00

6

1117633201
ref: 6

COVER,BREATHER

€ 25.50

7

1118615501
ref: 7

SEPARATOR,OIL BREATHER COVER

€ 6.00

8

1117715510H17
ref: 8

GASKET,BREATHER COVER (NAS)

€ 7.50

9

015500625B
ref: 9

BOLT

€ 2.50
