HEADLAMP (GS500H E28

GS500F 2007 (K7) USA (E03)

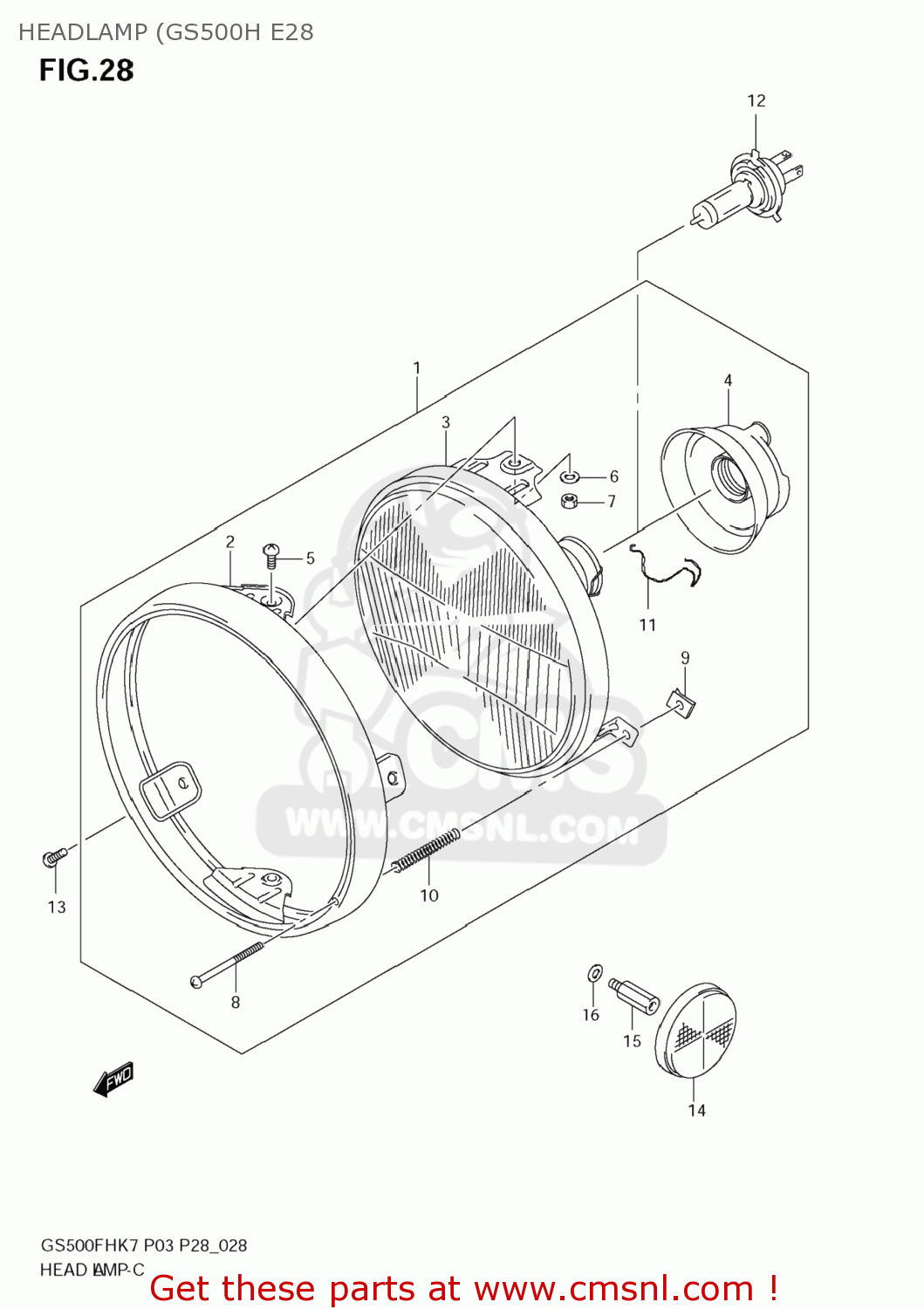

Headlamp (gs500h e28 diagram GS500F 2007 (K7) USA (E03)

HEADLAMP (GS500H E28 GS500F 2007 (K7) USA (E03)

HEADLAMP (GS500H E28 GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3510001D80999
ref: 1

HEADLAMP ASSY

€ 129.50

2

351110BE00
ref: 2

RIM

€ 45.50

3

351210BE00
ref: 3

LAMP UNIT

€ 95.00

4

351730BE00
ref: 4

COVER, SOCKET

€ 3.50

5

351810BE00
ref: 5

SCREW

€ 1.00

6

D83210104B
ref: 6

LOCK WASHER

€ 0.00

7

D83100004B
ref: 7

NUT

€ 0.00

8

351510BE00
ref: 8

SCREW,ADJUSTIN

€ 3.00

9

351520BE00
ref: 9

NUT

€ 1.00

10

351540BE00
ref: 10

SPRING

€ 3.00

11

351740BE00
ref: 11

SPRING

€ 19.00

12

0947112060
ref: 12

BULB(12V60/55W,H4)

€ 8.00

13

D21160512B
ref: 13

SCREW 5X12

€ 1.00

14

3595014A10
ref: 14
35950-14A11

REFLECTOR,REFLEX

€ 11.00

15

0911905023
ref: 15

BOLT(5X10)

€ 7.50

16

D83220105B
ref: 16

WASHER

€ 0.00
