CAM CHAIN

GS500F 2007 (K7) USA (E03)

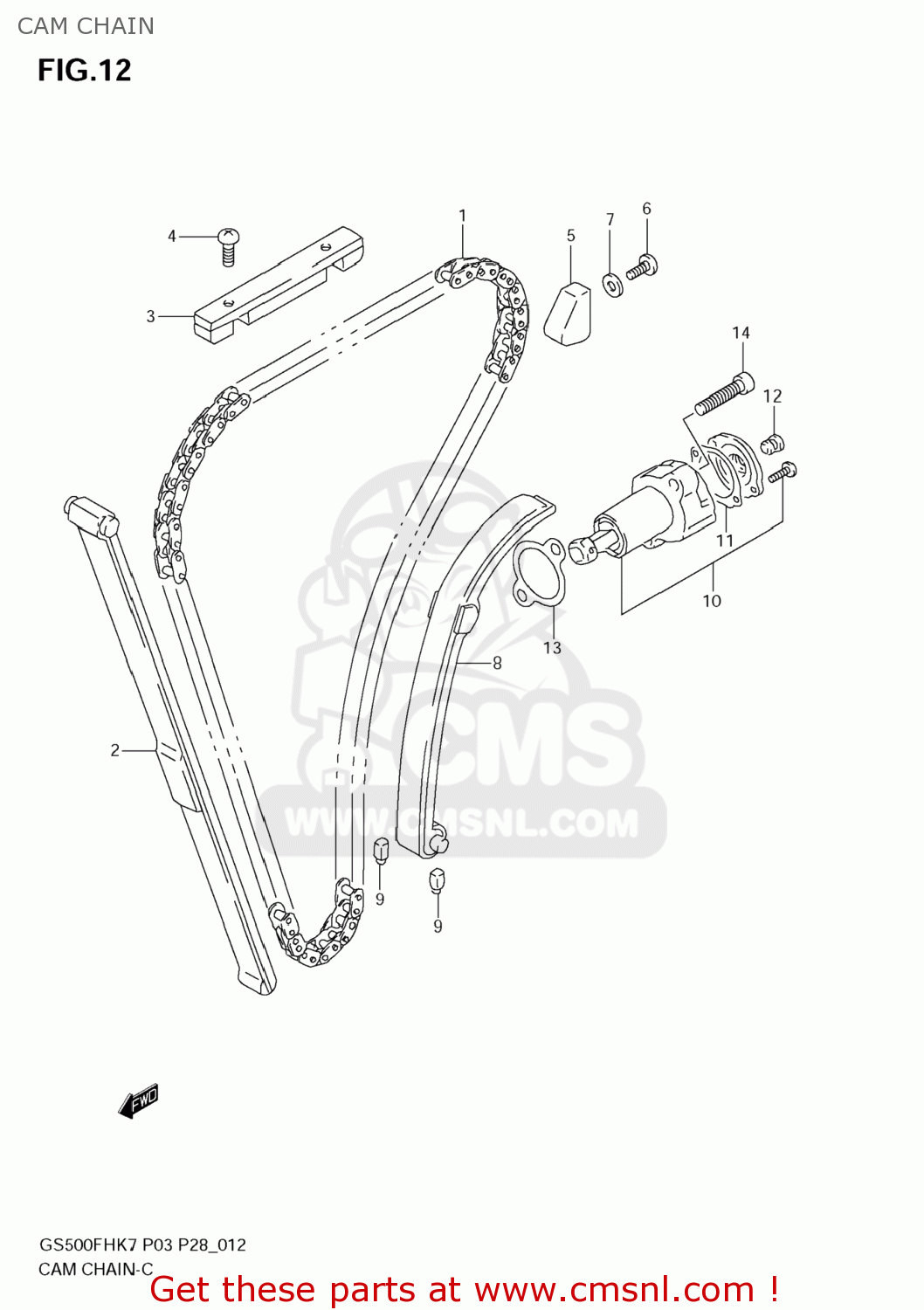

Cam chain diagram GS500F 2007 (K7) USA (E03)

CAM CHAIN GS500F 2007 (K7) USA (E03)

CAM CHAIN GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1276045040
ref: 1

CHAIN,CAMSHAFT DRIVE(120L)

€ 112.00

2

1277145052
ref: 2

GUIDE,CAM CHAIN NO.1

€ 33.50

3

1278249200
ref: 3

GUIDE,CAM CHAIN

€ 33.50

4

021120510B
ref: 4

SCREW

€ 2.00

5

1279145040
ref: 5

GUIDE,CAM CHAIN

€ 8.50

6

015500612B
ref: 6

BOLT

€ 2.50

7

0916806023
ref: 7

GASKET(5.8X13X1.2) (NAS)

€ 2.00

8

1281001D00
ref: 8

TENSIONER,CAM CHAIN

€ 54.50

9

1281444101
ref: 9

CUSHION,CAM CHAIN TENSIONER

€ 8.50

10

1283001D12
ref: 10

ADJUSTER ASSY,TENSIONER

€ 77.50

11

1283838200H17
ref: 11

GASKET,ADJUSTER CAP (NAS)

€ 3.00

12

1283938200
ref: 12

PLUG,ADJUSTER

€ 2.00

13

1283724A10
ref: 13

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

14

071300625B
ref: 14

BOLT

€ 3.00
