HANDLE SWITCH

GS500F 2007 (K7) USA (E03)

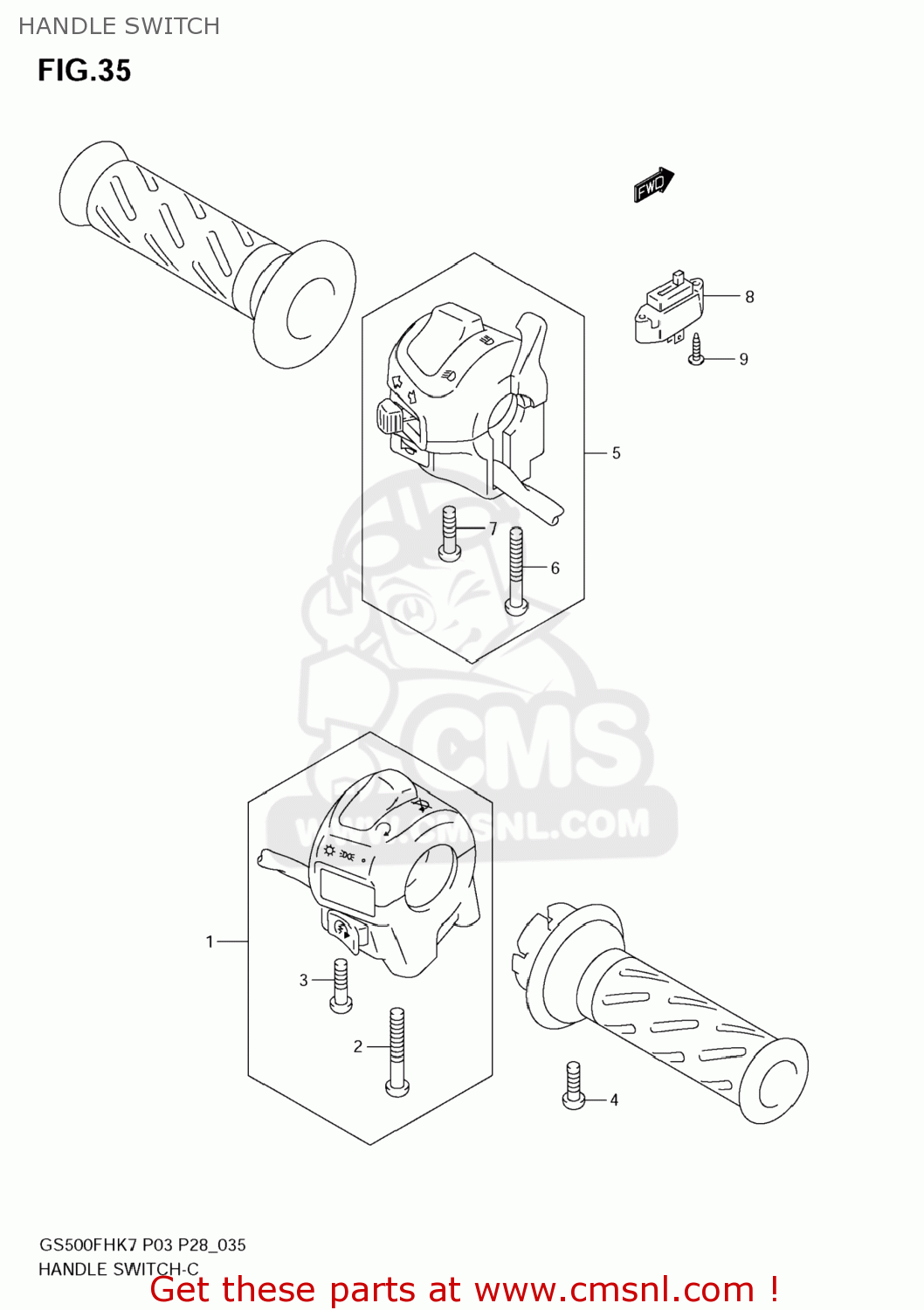

Handle switch diagram GS500F 2007 (K7) USA (E03)

HANDLE SWITCH GS500F 2007 (K7) USA (E03)

HANDLE SWITCH GS500F 2007 (K7) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720025DA0
ref: 1

SWITCH ASSY,HA

€ 110.00

2

021120550B
ref: 2

SCREW

€ 2.00

3

021120530B
ref: 3

SCREW

€ 1.50

4

D21160510B
ref: 4

SCREW, THROTTLE CABLE

€ 3.00

5

3740023E30
ref: 5

SWITCH ASSY,HANDLE,L

€ 0.00

6

021120545B
ref: 6

SCREW

€ 4.00

7

0912505066
ref: 7

SCREW(5X25)

€ 2.00

8

3756031F00
ref: 8

SWITCH ASSY,CLUTCH

€ 20.00

9

0913203017
ref: 9

SCREW(3X14)

€ 3.00

10

D83234103A
ref: 10

WASHER

€ 3.00
