CARBURETOR
GS500F 2009 (K9) USA (E03)

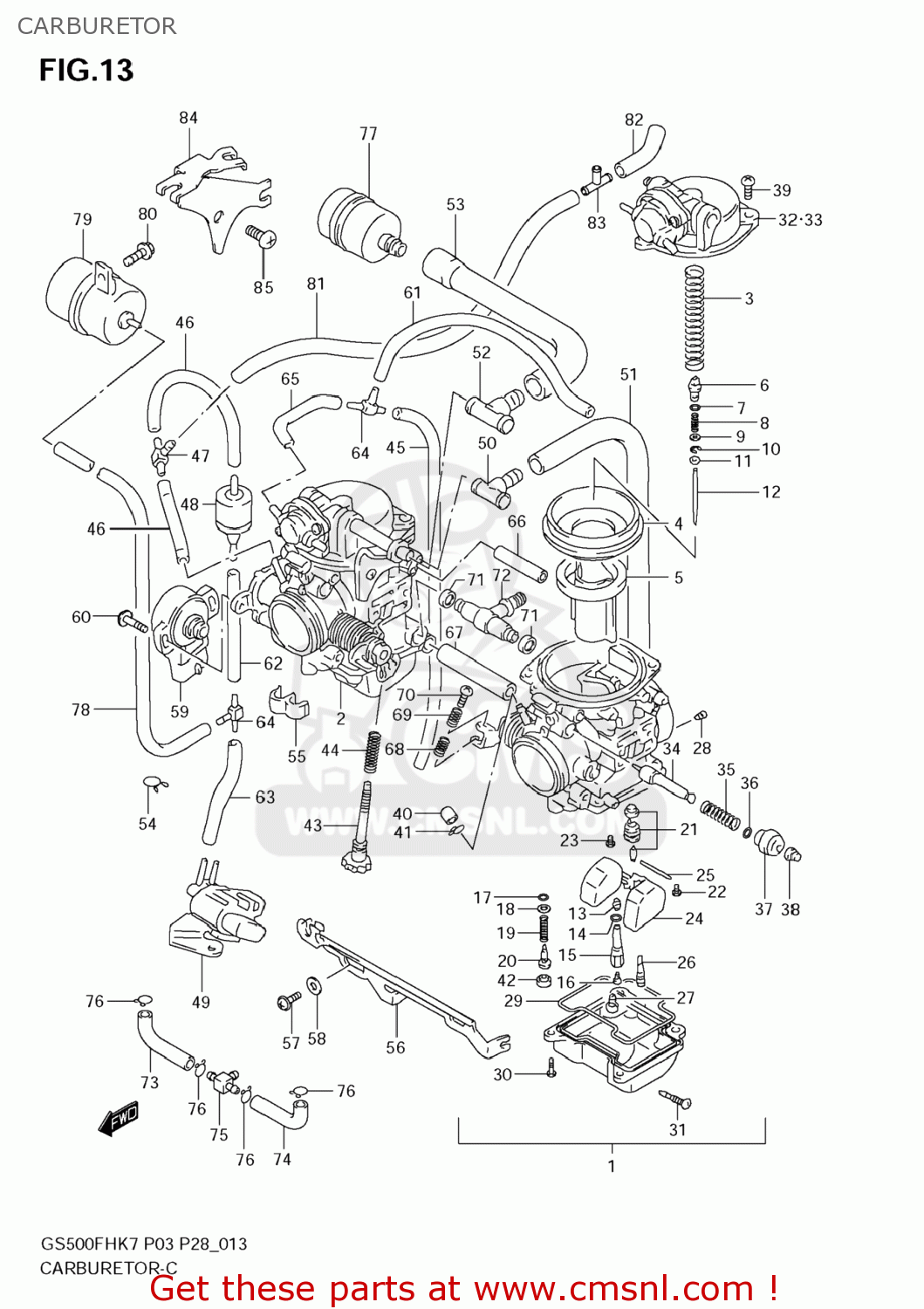

Carburetor diagram GS500F 2009 (K9) USA (E03)
CARBURETOR GS500F 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1320101DQ0
ref: 1-1
CARBURETOR,L
€ 0.00
1-2
1320101DU0
ref: 1-2
CARBURETOR ASSY, LH
€ 0.00
2-1
1320201DQ0
ref: 2-1
CARBURETOR,R
€ 0.00
2-2
1320201DU0
ref: 2-2
CARBURETOR ASSY, RH
€ 0.00
3
1357319E00
ref: 3
SPRING
€ 7.50
4
1350717C01
ref: 4
DIAPHRAGM
€ 24.50
5
1350129FA0
ref: 5
VALVE,PISTON
€ 57.50
6-1
1341833E00
ref: 6-1
HOLDER
€ 4.50
6-2
1341844080
ref: 6-2
GUIDE SCREW,PLUNGER
€ 8.00
7
0928005004
ref: 7
O RING(D:1.9,ID:4.8)
€ 2.00
8
1348113F00
ref: 8
SPRING
€ 4.00
9
1338219E00
ref: 9
WASHER
€ 3.00
10
1339417E60
ref: 10
E RING,MULTIPLE JET NOZZLE
€ 1.50
11
1338713F00
ref: 11
RING
€ 6.00
12
1338301DU0
ref: 12
NEEDLE, JET (5DH60-1) (E33MODEL K6 E3, E28)
€ 0.00
13
1334101DN0
ref: 13
JET,NEEDLE(P-5M)
€ 16.00
14
1324643010
ref: 14
O RING
€ 4.00
15
1338507F00
ref: 15
HOLDER,JET
€ 29.00
16
0949126016
ref: 16
JET,MAIN(130)
€ 16.50
17
1329529900
ref: 17
O RING,PILOT AIR SCREW
€ 4.00
18
1329129900
ref: 18
WASHER
€ 2.00
19
1326848700
ref: 19
SPRING,THROTTLE SCREW
€ 3.50
20
1327901DN0
ref: 20
ADJUSTER
€ 6.00
21
1337004F00
ref: 21
VALVE ASSY,NEEDLE
€ 67.50
22
0211204083
ref: 22
02112-0408A
SCREW
€ 2.00
23
1360205A10
ref: 23
SCREW
€ 4.00
24
1325004F00
ref: 24
FLOAT ASSY
€ 27.50
25
1325401010
ref: 25
PIN,FLOAT
€ 3.00
26
0949217016
ref: 26
JET,PILOT(17.5)
€ 15.50
27
0949160010
ref: 27
JET,MAIN(60)
€ 16.00
28
0949334003
ref: 28
JET,PILOT AIR(170)
€ 10.50
29
1325804F00
ref: 29
GASKET (NAS)
€ 9.00
30
0211204107
ref: 30
SCREW
€ 2.00
31
1324713A00
ref: 31
13247-02340
SCREW,DRAIN
€ 5.50
32
1350201DB0
ref: 32
COVER ASSY,DIAPHRAGM,L
€ 111.50
33
1350201DC0
ref: 33
COVER ASSY,DIAPHRAGM,R
€ 111.50
34
1341105300
ref: 34
PLUNGER
€ 23.50
35
1341726D00
ref: 35
SPRING
€ 5.50
36
1327847090
ref: 36
O RING
€ 2.00
37
1341844080
ref: 37
GUIDE SCREW,PLUNGER
€ 8.00
38
1368231210
ref: 38
CAP,STARTER VALVE
€ 5.00
39
0211205127
ref: 39
SCREW
€ 2.50
40
1327484000
ref: 40
CAP
€ 5.50
41
0940106101
ref: 41
CLIP
€ 2.50
42
1328105A00
ref: 42
PLUG
€ 3.50
43
1326713F00
ref: 43
SCREW,ADJUST
€ 12.50
44
1327133C00
ref: 44
SPRING
€ 4.50
45
0935535755600
ref: 45
HOSE(3.5X7.5X600)
€ 10.00
46
0935535755600
ref: 46
HOSE(3.5X7.5X600)
€ 10.00
47
1368504F10
ref: 47
NIPPLE
€ 6.50
48-1
9556801DN0
ref: 48-1
CHECK VALVE ASSY
€ 0.00
48-2
9556901DN0
ref: 48-2
VALVE CHECK AS
€ 26.00
49
1811570G10
ref: 49
VALVE ASSY,3WAY SOLENOID
€ 73.50
50
1368301DB0
ref: 50
HOSE
€ 15.00
51
1368301DN0
ref: 51
HOSE
€ 11.00
52
1368301DP0
ref: 52
3 WAY
€ 21.00
53
1368301DC1
ref: 53
HOSE
€ 18.00
54
0940116401
ref: 54
CLIP
€ 3.00
55
0940800200
ref: 55
CLIP
€ 2.00
56
1341301DE0
ref: 56
PLATE
€ 33.00
57
1360204F00
ref: 57
SCREW
€ 3.50
58
1355733E00
ref: 58
PACKING
€ 3.00
59
1355013D60
ref: 59
SENSOR ASSY,THROTTLE
€ 129.50
60
1360520C00
ref: 60
SCREW,SENSOR
€ 3.00
61
0935535755600
ref: 61
HOSE(3.5X7.5X600)
€ 10.00
62
0935535755600
ref: 62
HOSE(3.5X7.5X600)
€ 10.00
63
0935535755600
ref: 63
HOSE(3.5X7.5X600)
€ 10.00
64
0936704007
ref: 64
3 WAY
€ 3.50
65
0935535755600
ref: 65
HOSE(3.5X7.5X600)
€ 10.00
66
1368501DC0
ref: 66
ROD
€ 12.50
67
1368501DB0
ref: 67
PIPE
€ 11.00
68
1326896111
ref: 68
SPRING,THROTTLE SCREW
€ 4.50
69
1327144B00
ref: 69
SPRING
€ 4.00
70
1326744B00
ref: 70
SCREW
€ 3.50
71
1367344B00
ref: 71
SEAL
€ 6.00
72
1368533EQ0
ref: 72
NIPPLE
€ 22.50
73
1368401D21
ref: 73
HOSE E33
€ 0.00
74
1368448B01
ref: 74
HOSE E33
€ 0.00
75
1368548B00
ref: 75
NIPPLE
€ 9.00
76
0940110410
ref: 76
09401-10401
CLIP
€ 1.50
77
1878032E00
ref: 77
FILTER,2ND AIR CLEANER
€ 21.00
78
0935535755600
ref: 78
HOSE(3.5X7.5X600)
€ 10.00
79
1371504F00
ref: 79
CHAMBER,VACUUM
€ 20.00
80
D15570620B
ref: 80
BOLT
€ 2.50
81
0935550105600
ref: 81
44421-13ER0
HOSE(5X10X600)
€ 7.50
82
0935550105600
ref: 82
44421-13ER0
HOSE(5X10X600)
€ 7.50
83
0936706002
ref: 83
JOINT,3 WAY
€ 3.00
84
1356501DE0
ref: 84
BRACKET
€ 13.50
85
0211205103
ref: 85
02112-0510A
SCREW
€ 2.00
