REAR CALIPER

GS500F 2009 (K9) USA (E03)

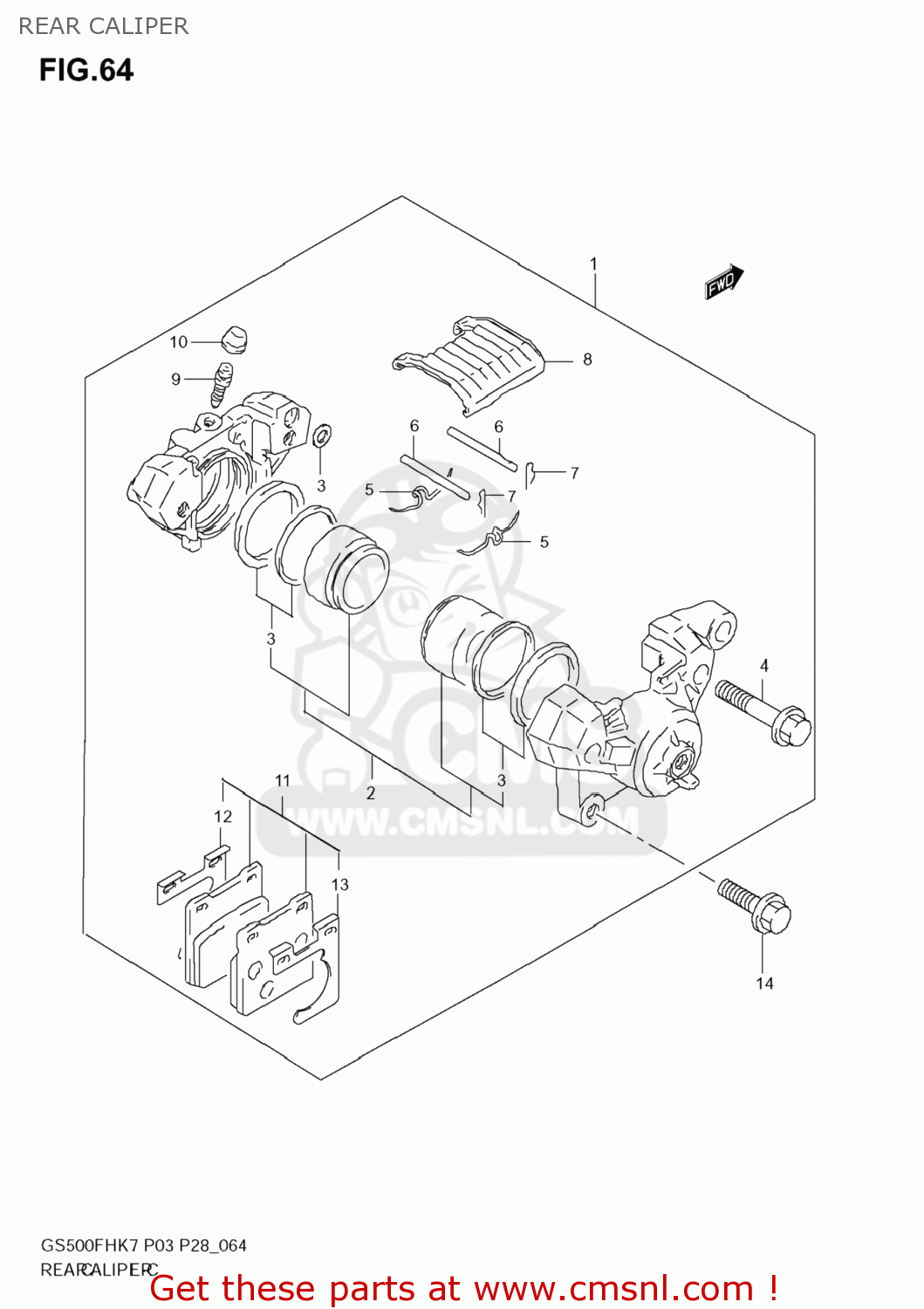

Rear caliper diagram GS500F 2009 (K9) USA (E03)

REAR CALIPER GS500F 2009 (K9) USA (E03)

REAR CALIPER GS500F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

6910001DA0
ref: 1

CALIPER ASSY

€ 209.00

2

691000BE10
ref: 2

PISTONSET

€ 48.00

3

691010BE00
ref: 3

SEAL SET PIST.

€ 25.50

4

593460BE00
ref: 4

BOLT

€ 1.50

5

591430BE00
ref: 5

SPRING

€ 2.50

6

691410BE00
ref: 6

PIN

€ 6.50

7

691420BE00
ref: 7

CLIP

€ 9.00

8

591510BE00
ref: 8

COVER

€ 13.50

9

591210AE00
ref: 9
59121-01A00

BLEEDER

€ 8.50

10

591220AE00
ref: 10

CAP

€ 4.50

11

691000BE00
ref: 11

PAD/SHIMSET

€ 45.50

12

593710BE00
ref: 12

SIM PAD

€ 2.50

13

593810BE00
ref: 13

SHIM, OUTER

€ 2.50

14

015500830B
ref: 14

BOLT

€ 3.00
