CYLINDER
GS500F 2009 (K9) USA (E03)

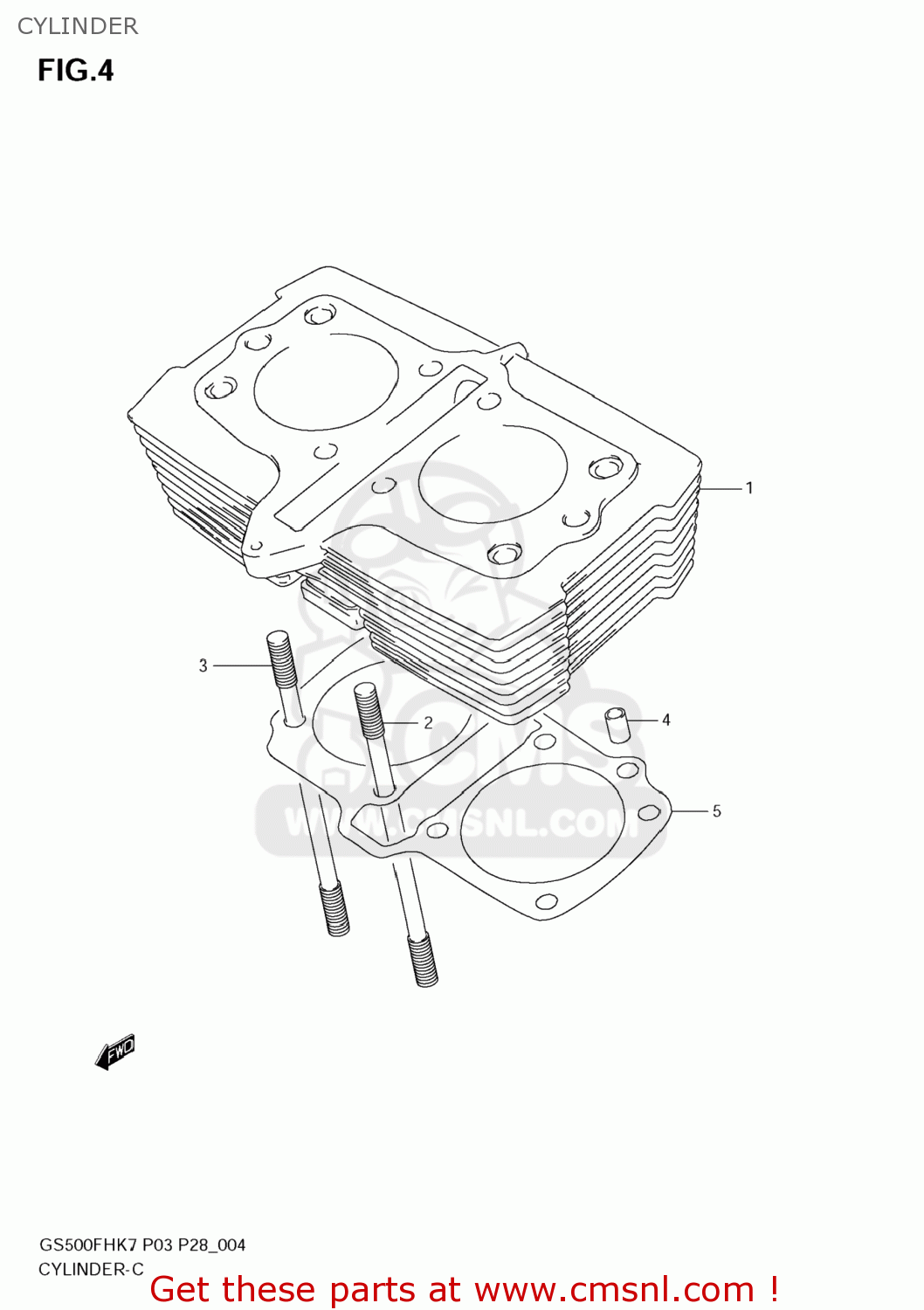

Cylinder diagram GS500F 2009 (K9) USA (E03)
CYLINDER GS500F 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121001D300F0
ref: 1
CYLINDER
€ 860.50
2
0910810112
ref: 2
BOLT,STUD
€ 9.00
3
0910810041
ref: 3
BOLT,STUD
€ 9.00
4
0421111169
ref: 4
PIN
€ 2.00
5
1124101D00
ref: 5
GASKET,CYLINDER (NAS)
€ 9.50
