FRONT FENDER

GS500F 2009 (K9) USA (E03)

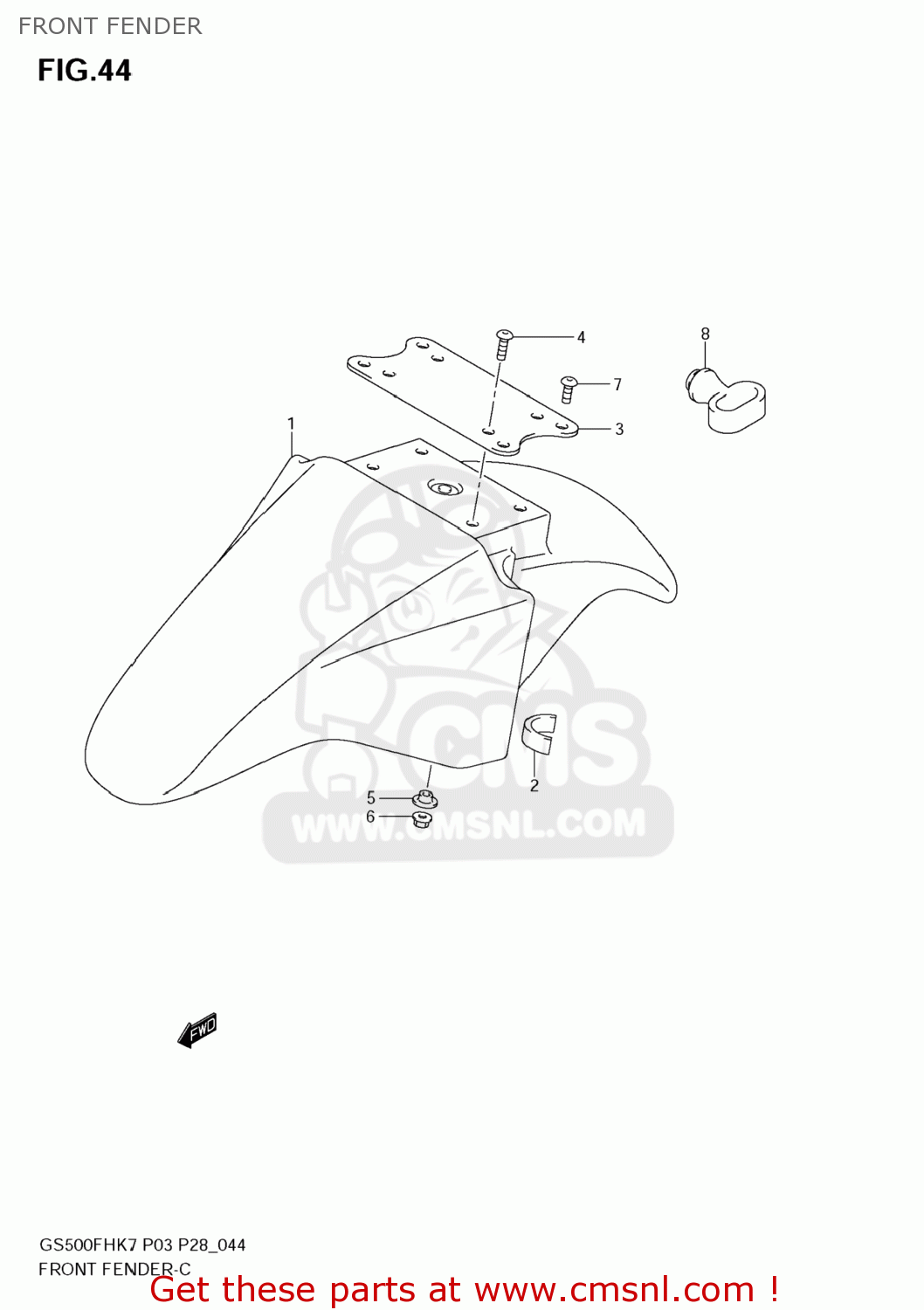

Front fender diagram GS500F 2009 (K9) USA (E03)

FRONT FENDER GS500F 2009 (K9) USA (E03)

FRONT FENDER GS500F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

5311101D40YAY
ref: 1-1

FENDER, FRONT (BLACK) NOT FOR US MARKET

€ 58.00

1-2

5311101D40YKY
ref: 1-2

FENDER,FRONT G

€ 51.50

1-3

5311101D50YAY
ref: 1-3

FENDER,FRONT

€ 79.00

1-4

5311101D40YAY
ref: 1-4

FENDER, FRONT (BLACK) NOT FOR US MARKET

€ 58.00

1-5

5311101D40YKY
ref: 1-5

FENDER,FRONT G

€ 51.50

1-6

5311101D50YAY
ref: 1-6

FENDER,FRONT

€ 79.00

1-7

5311101D50YKY
ref: 1-7

FENDER,FRONT(BL

€ 108.00

2

53145C32B00J000
ref: 2
53145-30B00

CUSHION

€ 2.00

3

53114C01D10JENM
ref: 3

BRACE, FRONT FENDER (BLACK)

€ 23.00

4

0913905032
ref: 4

SCREW(5X18)

€ 2.50

5

0916905010
ref: 5

WASHER

€ 3.00

6

0915905043
ref: 6

NUT

€ 2.50

7

0913906027
ref: 7

SCREW(6X12)

€ 3.00

8

5862121204
ref: 8

GUIDE,CABLE

€ 7.50
