CRANKSHAFT BALANCER

GS500F 2009 (K9) USA (E03)

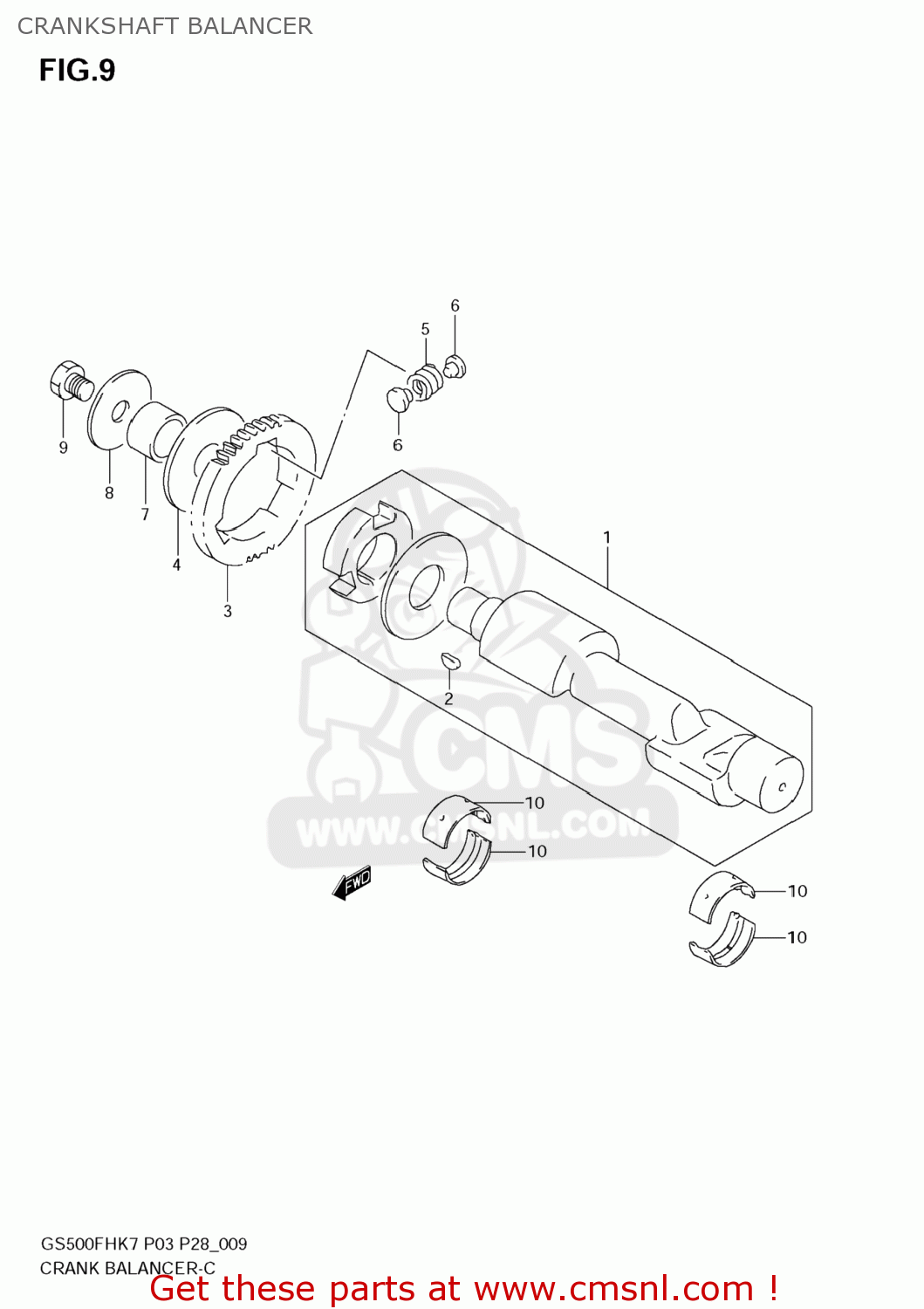

Crankshaft balancer diagram GS500F 2009 (K9) USA (E03)

CRANKSHAFT BALANCER GS500F 2009 (K9) USA (E03)

CRANKSHAFT BALANCER GS500F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1265001D01
ref: 1

BALANCER,CRANK

€ 223.00

2

0942004008
ref: 2

KEY

€ 3.50

3

1266644001
ref: 3

RACE,CRK BAL DRIVEN GEAR INNER

€ 128.00

4

0916024026
ref: 4

WASHER(24X70X3)

€ 12.00

5

0944015007
ref: 5

SPRING

€ 23.50

6

0920108001
ref: 6

PIN

€ 3.50

7

0918024009
ref: 7

SPACER(24X30.5X12.5)

€ 7.00

8

0916012039
ref: 8

WASHER(12X50X3)

€ 8.00

9

015001220B
ref: 9

BOLT

€ 3.00

10-1

1222901D010A0
ref: 10-1

BEARING,CRANKSHAFT(GREEN)

€ 10.50

10-2

1222901D010B0
ref: 10-2

BEARING,CRANKSHAFT(BLACK)

€ 11.00

10-3

1222901D010C0
ref: 10-3

BEARING,CRANKSHAFT(BROWN)

€ 11.00

10-4

1222901D010D0
ref: 10-4

BEARING,CRANKSHAFT(YELLOW)

€ 11.00
