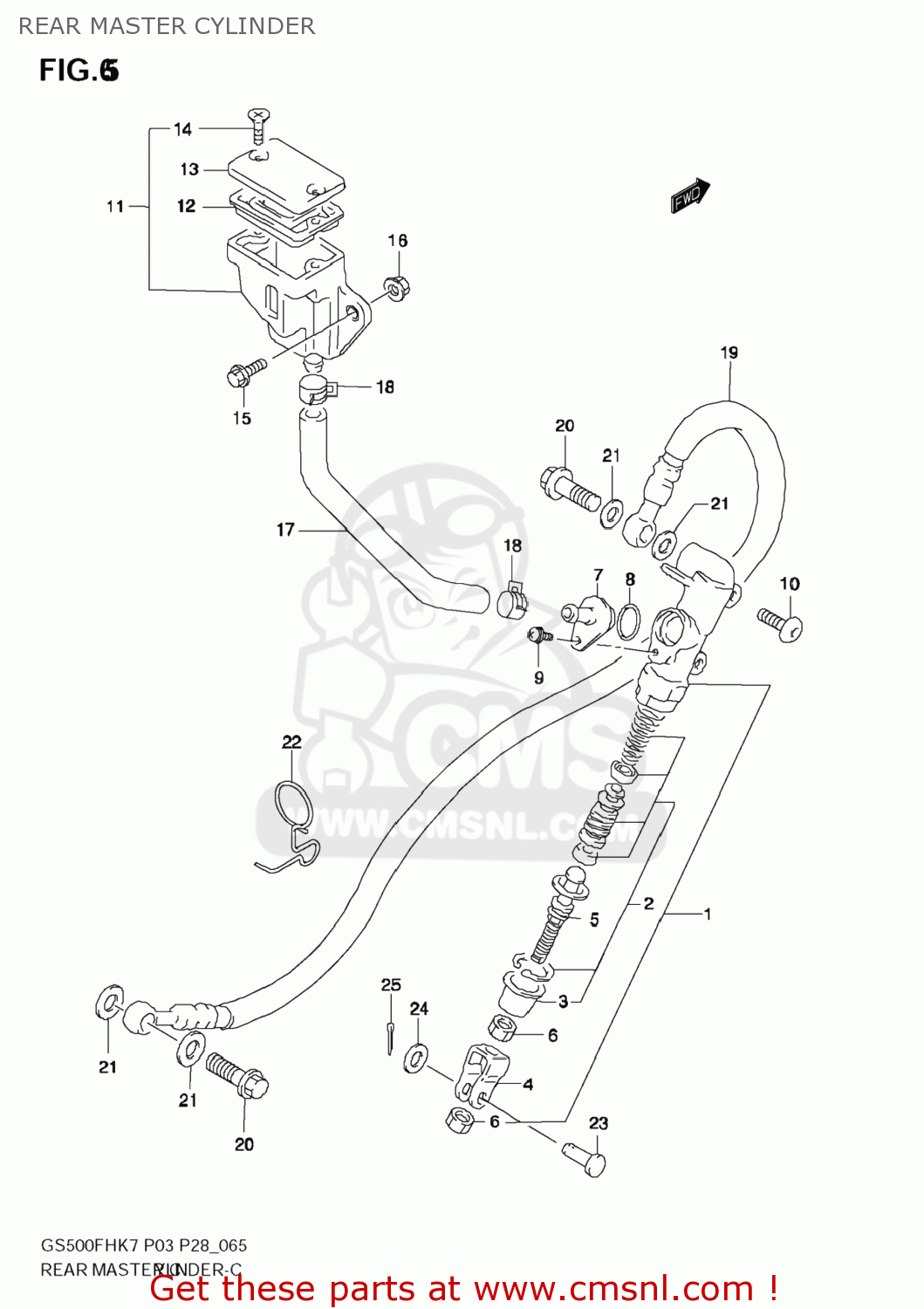

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960001DA0
ref: 1

CYLINDER ASS R

€ 29.50

2

696000BE00
ref: 2

PISTON/CAP SET

€ 23.00

3

696910BE00
ref: 3

BOOT

€ 2.00

4

696920BE00
ref: 4

YOKE

€ 3.50

5

696700BE00
ref: 5

ROD, PUSH

€ 7.00

6

696930BE00
ref: 6

NUT

€ 1.00

7

696720BE00
ref: 7

CONNECTOR

€ 0.50

8

696860BE00
ref: 8

O-RING

€ 1.00

9

021120BE00
ref: 9

SCREW

€ 2.50

10

0913906057
ref: 10

SCREW(6X25)

€ 2.50

11

6974001DA0
ref: 11

TANK ASSY REAR

€ 7.50

12

596670BE00
ref: 12

DIAPHRAGM

€ 8.00

13

596690BE00
ref: 13

CAP

€ 7.00

14

696890BE00
ref: 14

SCREW

€ 2.00

15

D15570616B
ref: 15

BOLT UH125&200

€ 1.00

16

D83201006B
ref: 16

NUT

€ 3.00

17

6973101D02
ref: 17

HOSE,RESERVOIR TANK

€ 19.50

18

0940113417
ref: 18

CLIP

€ 2.50

19

6948001DA0
ref: 19

HOSE,RR BRAKE

€ 99.00

20

0936010061
ref: 20

BOLT UNION

€ 6.50

21

0916110009
ref: 21

WASHER(10X15X1.5)

€ 2.00

22

6924301D20
ref: 22

GUIDE,RR BRAKE HOSE

€ 5.50

23

0920006037
ref: 23
09200-06068

PIN

€ 5.00

24

D83220106B
ref: 24

WASHER GS500/K

€ 2.00

25

D41112015A
ref: 25

PIN, COTTER

€ 3.00

all assemblies
