STAND

GS500F 2009 (K9) USA (E03)

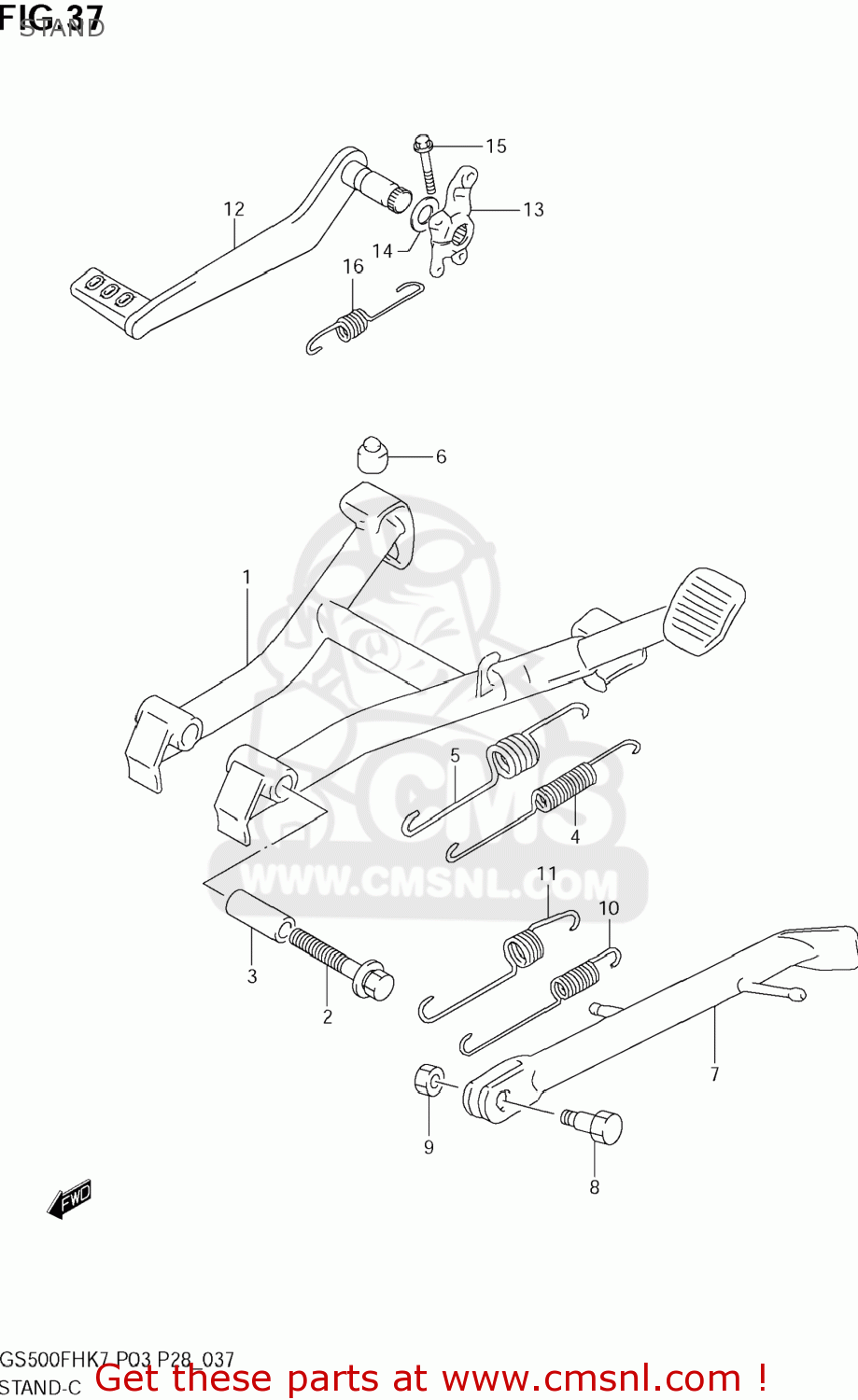

Stand diagram GS500F 2009 (K9) USA (E03)

STAND GS500F 2009 (K9) USA (E03)

STAND GS500F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4210001D90ENM
ref: 1

STAND, CENTER

€ 62.00

2

015801060B
ref: 2

BOLT

€ 3.50

3

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

4

0944314059
ref: 4

SPRING

€ 9.50

5

0944322013
ref: 5

SPRING OUTER

€ 7.00

6

0932110017
ref: 6

CUSHION

€ 5.50

7

4231001D20019
ref: 7

STAND,PROP

€ 99.00

8

0911110027
ref: 8

BOLT(10X34)

€ 3.50

9

083192110B
ref: 9

NUT

€ 2.00

10

0944315046
ref: 10

SPRING

€ 7.50

11

0944322017
ref: 11

SPRING

€ 7.00

12

43110C01D20J000
ref: 12

PEDAL, BRAKE

43110C01D20J000

€ 36.50

13

431210BE00
ref: 13

ARM, BRAKE ROD

€ 30.50

14

4321204700
ref: 14
43212-04A00

WASHER

€ 2.00

15

D15570625B
ref: 15

BOLT

€ 0.50

16

0944313028
ref: 16

SPRING

€ 20.50
