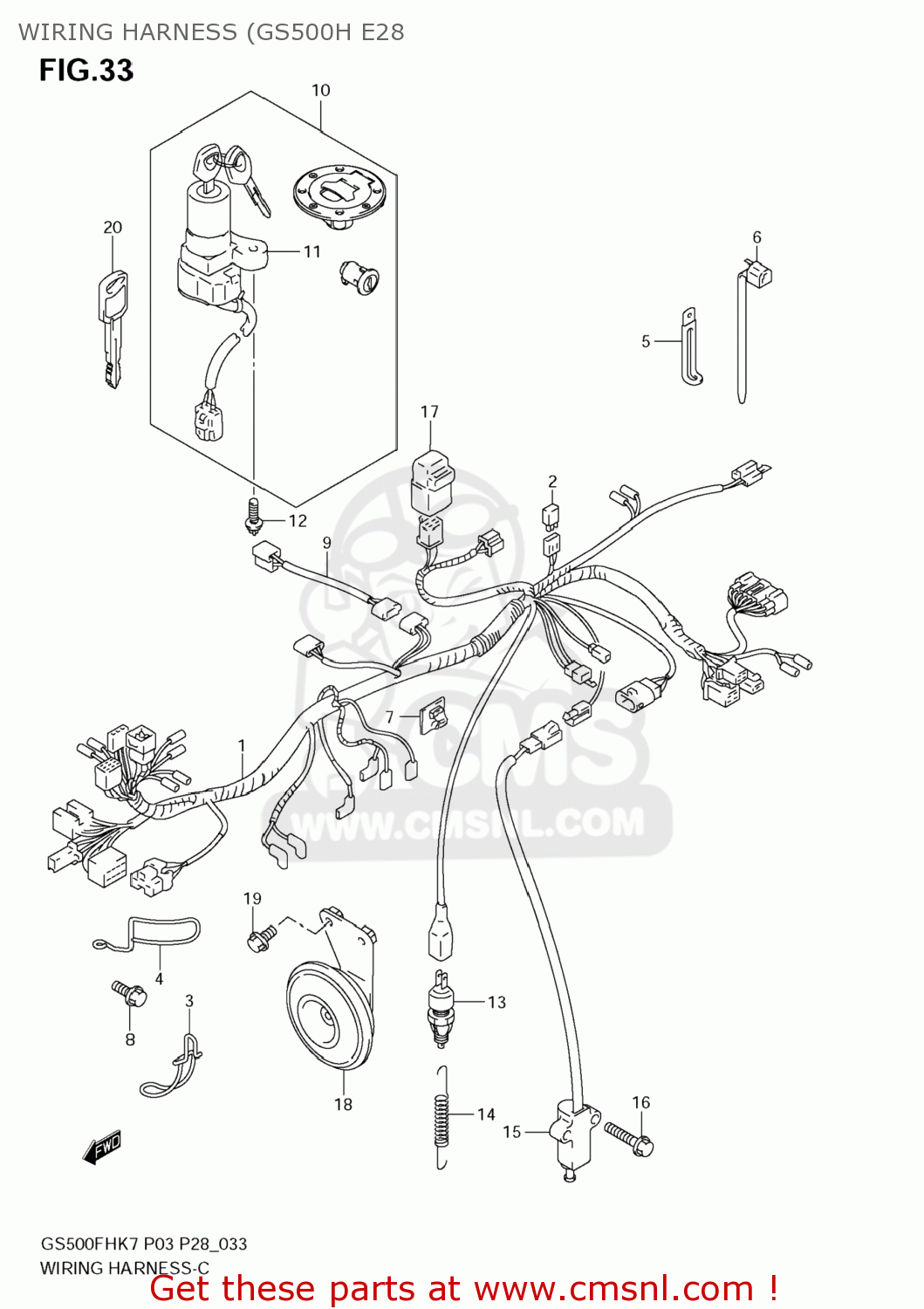

WIRING HARNESS (GS500H E28

ref

part #

description

quantity

1

36610C0BEP0J000
ref: 1

HARNESS, WIRING

€ 158.50

2

3661102E01
ref: 2

DIODE

€ 11.50

3

3661101D00
ref: 3

PROTECTOR

€ 11.50

4

3661101D10
ref: 4

PROTECTOR

€ 11.50

5-1

0940406429
ref: 5-1

CLAMP(L:45)

€ 2.50

5-2

0940406431
ref: 5-2
09404-06432

CLAMP(L:65)

€ 2.50

5-3

0940406434
ref: 5-3

CLAMP(L:80 T:1.0)

€ 3.00

5-4

0940408419
ref: 5-4

CLAMP(L:80)

€ 2.00

6-1

D943601425
ref: 6-1

CLAMP

€ 0.50

6-2

D944801885
ref: 6-2
D9448-02875

CLAMP

€ 1.00

6-3

0940719401
ref: 6-3

CLAMP(L:190)

€ 2.00

7

0940306310
ref: 7

CLAMP

€ 3.00

8

D15570616B
ref: 8

BOLT UH125&200

€ 1.00

9

3685201D40
ref: 9

WIRE,AIR SOLENOID

€ 10.00

10

3700001870
ref: 10

LOCK SET

€ 439.50

11

3710001D40
ref: 11

LOCK ASSY,STEERING

€ 107.50

12

0913906026
ref: 12

SCREW(6X18)

€ 2.50

13

3774024A00
ref: 13

SWITCH ASSY,STOP LAMP

€ 20.50

14

0944306042
ref: 14

SPRING

€ 3.00

15

3784026D00
ref: 15
37840-26X50

SWITCH ASSY,SI

€ 100.50

16

D15570630B
ref: 16
01550-0630B

BOLT

€ 2.00

17

3874024B00
ref: 17
38740-24X50

RELAY ASSEMBLY

€ 37.50

18

38500C01D20J000
ref: 18
38500-01D10

HORN ASSY

€ 19.00

19

D15570612B
ref: 19

BOLT

€ 1.00

20

3714633E00
ref: 20

KEY,BLANK

€ 13.00
