STARTING MOTOR
GS500F 2009 (K9) USA (E03)

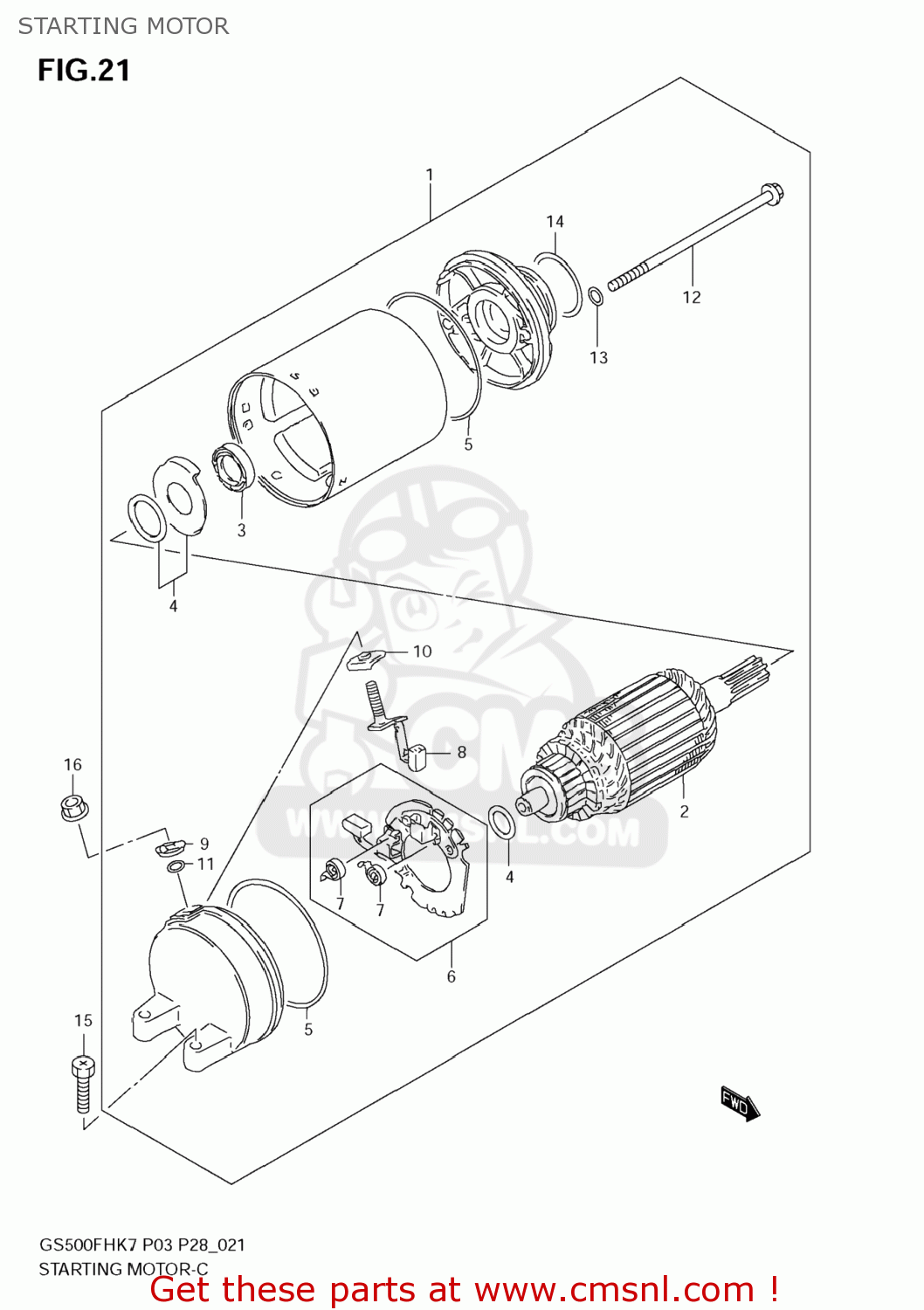

Starting motor diagram GS500F 2009 (K9) USA (E03)
STARTING MOTOR GS500F 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3110020C00
ref: 1-1
31100-20C01
MOTOR ASSEMBLY,STARTING
€ 530.00
1-2
3110020C01
ref: 1-2
MOTOR ASSY,STARTING
€ 530.00
2
3131027A01H17
ref: 2
ARMATURE
€ 222.00
3
3115343400
ref: 3
SEAL,OIL
€ 19.50
4
3117043400
ref: 4
SHIM SET,STARTING MOTOR
€ 3.50
5
3126444110
ref: 5
O RING
€ 8.00
6
3113227A01
ref: 6
HOLDER,BRUSH
€ 47.00
7
3113565010
ref: 7
SPRING
€ 3.00
8
3113038300
ref: 8
BRUSH SUB ASSY,STARTING MOTOR
€ 12.50
9
3117238300
ref: 9
BUSHING
€ 4.00
10
3117138300
ref: 10
BUSH,B
€ 5.50
11
3114338300
ref: 11
O RING
€ 3.50
12
3128188C00
ref: 12
BOLT
€ 8.50
13
3115638300
ref: 13
O RING
€ 3.00
14
0928024003
ref: 14
O RING(D:3,ID:24.5)
€ 2.00
15
0910306212
ref: 15
BOLT(6X25)
€ 2.50
16
083613506A
ref: 16
NUT
€ 2.00
