TURNSIGNAL LAMP (GS500H E28

GS500F 2009 (K9) USA (E03)

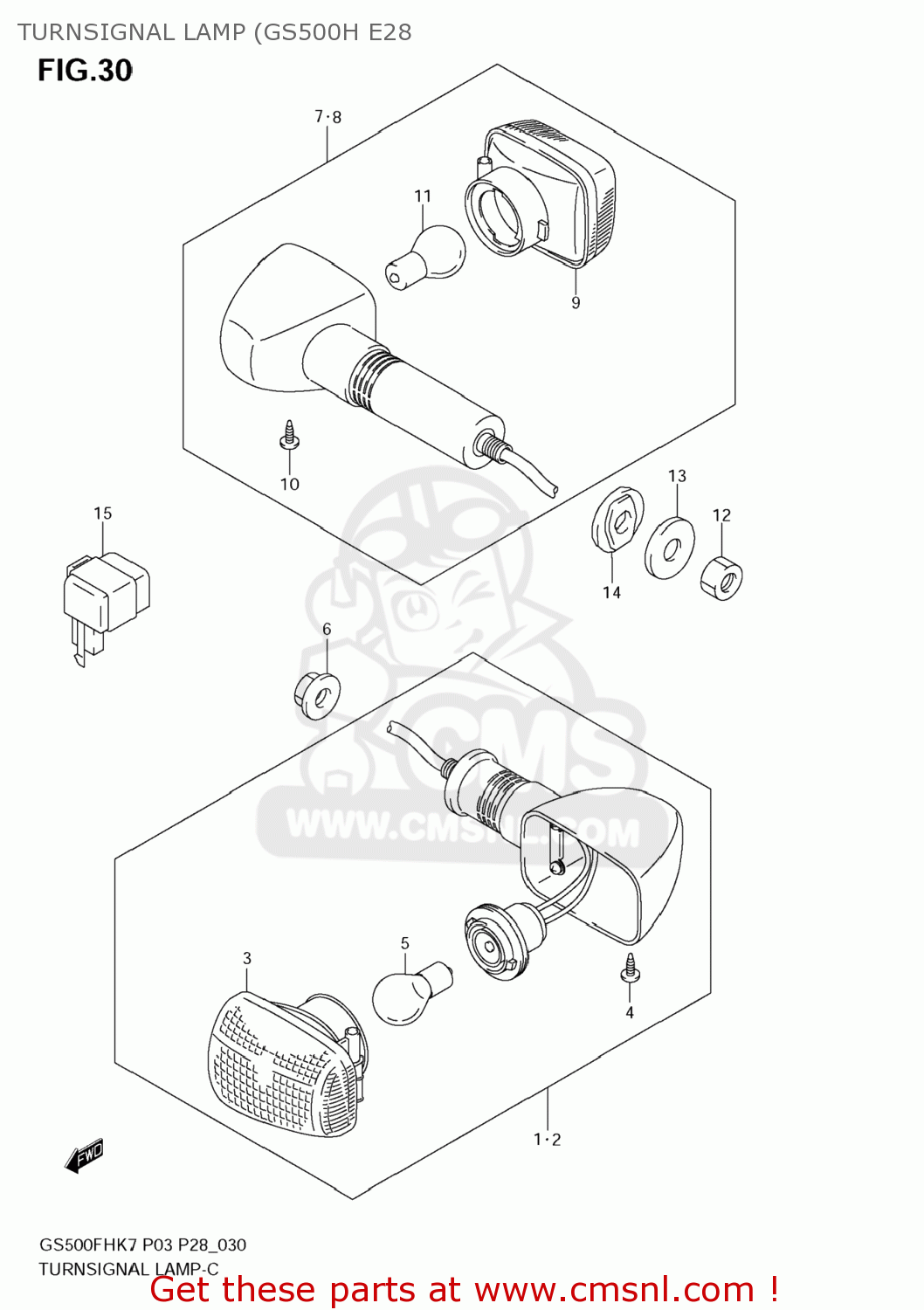

Turnsignal lamp (gs500h e28 diagram GS500F 2009 (K9) USA (E03)

TURNSIGNAL LAMP (GS500H E28 GS500F 2009 (K9) USA (E03)

TURNSIGNAL LAMP (GS500H E28 GS500F 2009 (K9) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3560101D20
ref: 1

TURNSIGN FR RH

€ 46.50

2

3560201D20
ref: 2

LAMP ASSY, FRONT LH

€ 45.50

3

3561001D20
ref: 3

LAMP UNIT

€ 12.50

4

032410412B
ref: 4

SCREW

€ 1.00

5

0947112045
ref: 5

BULB(12V21W)

€ 5.00

6

083161010B
ref: 6

NUT

€ 2.00

7

3560301D20
ref: 7

LAMP ASSY REAR

€ 47.00

8

3560401D20
ref: 8

LAMP ASSY REAR

€ 47.00

9

3561001D20
ref: 9

LAMP UNIT

€ 12.50

10

0324104123
ref: 10

SCREW

€ 2.50

11

0947112045
ref: 11

BULB(12V21W)

€ 5.00

12

D83101010B
ref: 12

NUT

€ 3.00

13

0916010501
ref: 13

WASHER(10.5X30X2.3)

€ 2.50

14

3569517C00
ref: 14

SPACER,RR TURNSIGNAL

€ 3.00

15

38610C01D10J000
ref: 15

RELAY ASSY, TURNSIGNAL

38610C01D10J000

€ 34.50
