FOOTREST
GS500F 2009 (K9) USA (E03)

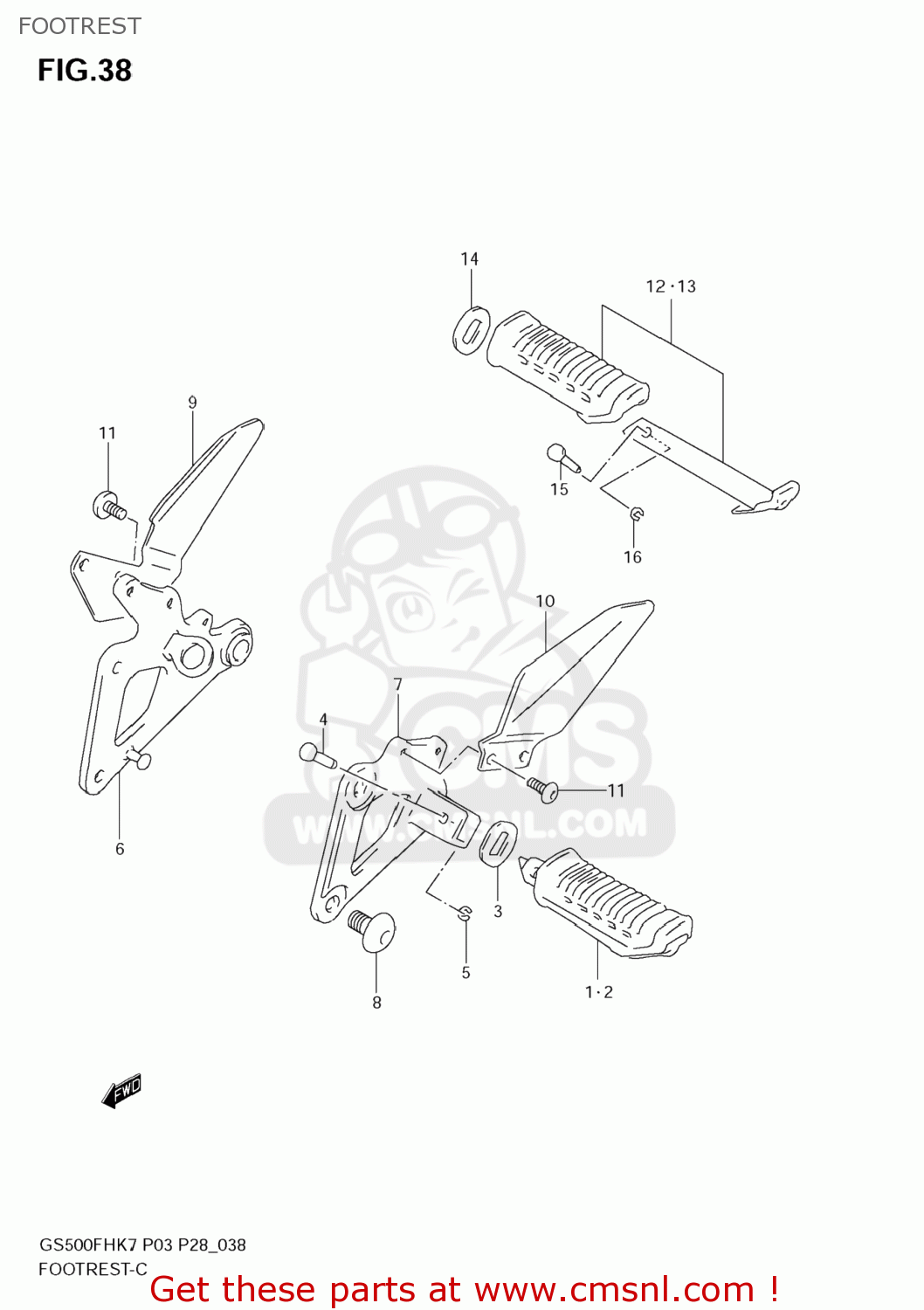

Footrest diagram GS500F 2009 (K9) USA (E03)
FOOTREST GS500F 2009 (K9) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
43550C01D00JE0Z
ref: 1
43550-01D00
RUBBER ASSY, FRONT RH
€ 29.50
2
43560C01D00JE0Z
ref: 2
43560-01D00
RUBBER ASSY, FRONT LH
€ 33.50
3
4363134A01
ref: 3
WASHER,FOOTREST RUBBER
€ 6.50
4
0920806008
ref: 4
PIN(6X29.5)
€ 2.50
5
D83321104A
ref: 5
E RING
€ 0.00
6
4351001D00ENM
ref: 6
BRACKET, FRONT RH (BLACK)
€ 39.00
7
4352001D00ENM
ref: 7
BRACKET, FRONT LH (BLACK)
€ 36.50
8
0910608094
ref: 8
BOLT(8X20)
€ 8.00
9
4358601D10
ref: 9
GUARD,FR FOOTREST,R
€ 44.00
10
4359601D10
ref: 10
GUARD,FR FOOTREST,L
€ 44.00
11
0913906062
ref: 11
SCREW(6X12)
€ 3.00
12
4360012B00
ref: 12
FOOTREST ASSY,PILLION,R
€ 20.00
13
4370012B00
ref: 13
FOOTREST ASSY,PILLION,L
€ 22.00
14
4363134A01
ref: 14
WASHER,FOOTREST RUBBER
€ 6.50
15
0920806008
ref: 15
PIN(6X29.5)
€ 2.50
16
D83321104A
ref: 16
E RING
€ 0.00
