CRANKCASE COVER
GS850G 1982 (Z) USA (E03)

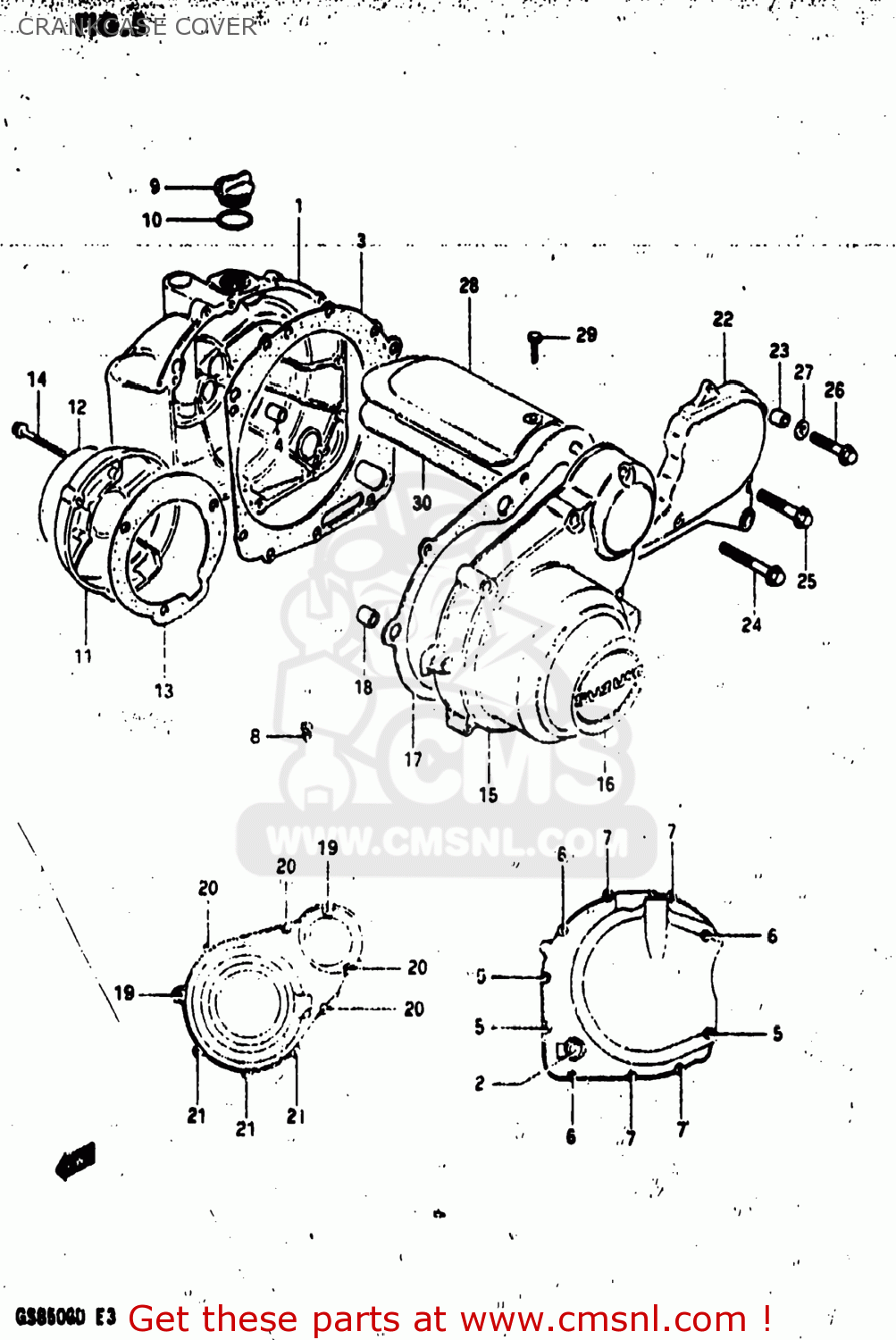

Crankcase cover diagram GS850G 1982 (Z) USA (E03)
CRANKCASE COVER GS850G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1134049101
ref: 1
COVER,CLUTCH
€ 179.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148249100
ref: 3
11482-49100-H17
GASKET,MAGNETO COVER (N (MCA)
€ 20.50
4
0920209004
ref: 4
PIN
€ 2.50
5
0154706358
ref: 5
01547-06357
BOLT (6X35)
€ 2.50
6
0154706308
ref: 6
01547-06307
BOLT (6X30)
€ 2.50
7
0154706258
ref: 7
01547-06257
BOLT
€ 2.50
8
0949322009
ref: 8
JET
€ 0.00
9
0925930001
ref: 9
09200-30810
CAP
€ 8.50
10
0928032005
ref: 10
O RING(D:2.2,ID:32)
€ 2.00
11
1138149002
ref: 11
COVER,CONTACT BREAKER
€ 57.00
12
6823534200
ref: 12
EMBLEM,CONTACT BREAKER COVER
€ 22.50
13
1149145000
ref: 13
GASKET,CONTACT BREAKER COVER (NAS)
€ 5.50
14
0154705308
ref: 14
01547-05307
BOLT (5X30)
€ 2.00
15
1135145001
ref: 15
COVER,MAGNETO
€ 204.00
16
6823334200
ref: 16
EMBLEM,MAGNETO COVER
€ 28.50
17
1148345000
ref: 17
11483-45000-H17
GASKET,MAGNETO COVER (MCA)
€ 12.50
18
0920613001
ref: 18
04211-13189
PIN
€ 2.50
19
0154706458
ref: 19
01547-06457
BOLT
€ 2.50
20
0154706408
ref: 20
01547-06407
BOLT (6X40)
€ 2.50
21
0154706358
ref: 21
01547-06357
BOLT (6X35)
€ 2.50
22
1136045102
ref: 22
11360-49101
COVER,SPROCKET
€ 99.00
23
0421109129
ref: 23
PIN
€ 2.00
24
0154706308
ref: 24
01547-06307
BOLT (6X30)
€ 2.50
25
0154706208
ref: 25
01547-06207
BOLT (6X20)
€ 2.50
26
0154706258
ref: 26
01547-06257
BOLT
€ 2.50
27
0832221068
ref: 27
08322-01067
WASHER
€ 2.00
28-1
1138249002
ref: 28-1
COVER,STARTER MOTOR
€ 43.00
28-2
1138245410
ref: 28-2
COVER,STARTER MOTOR
€ 35.00
29
0154705088
ref: 29
01547-05087
BOLT
€ 2.00
30
1149345001
ref: 30
11493-45002
GASKET,STARTER MOTOR COVER (MCA)
€ 10.50
