STAND
GS850G 1982 (Z) USA (E03)

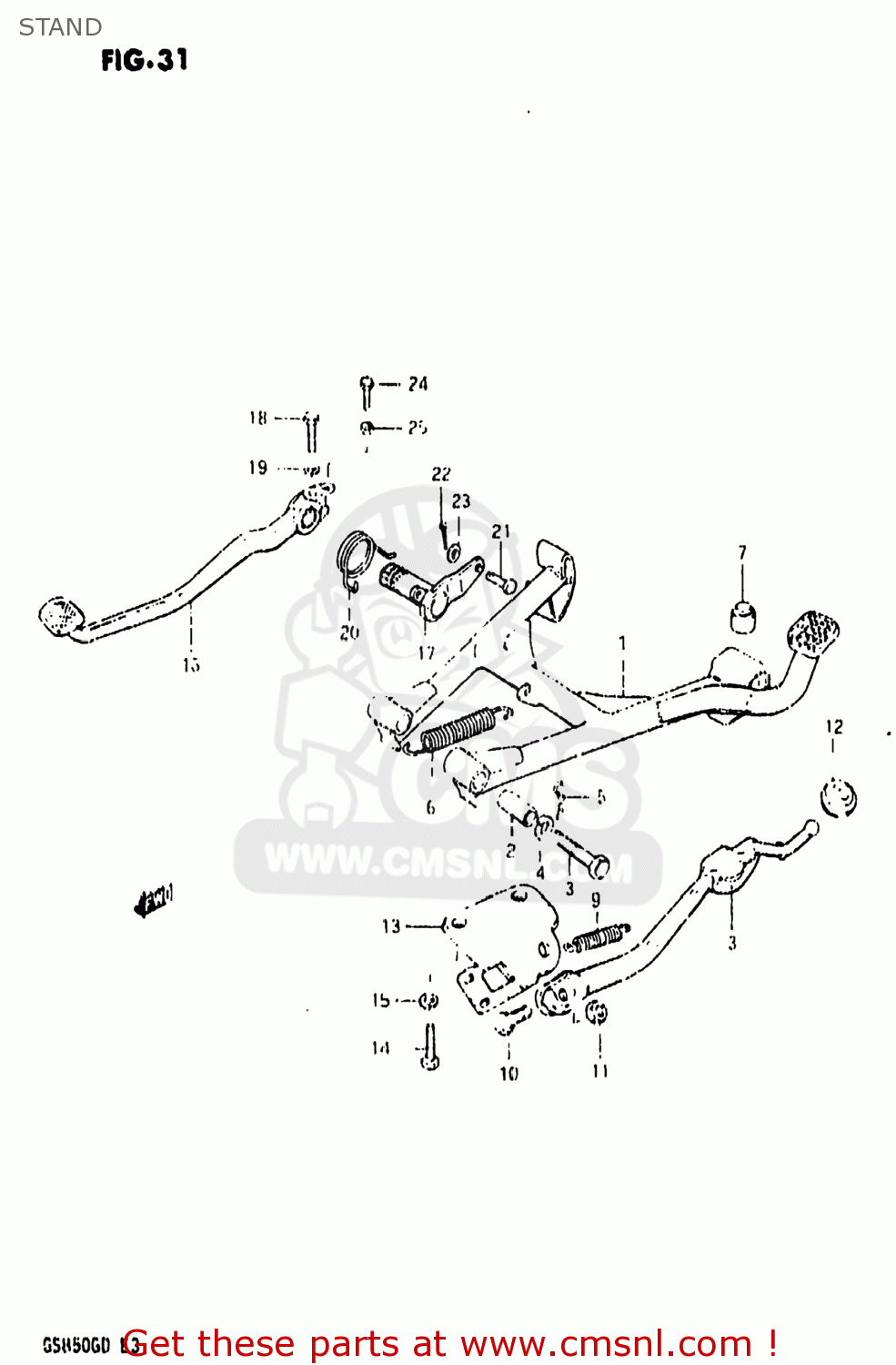

Stand diagram GS850G 1982 (Z) USA (E03)
STAND GS850G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
4210049400
ref: 1-1
42100-49401
STAND,CENTER
€ 76.00
1-2
4210049401
ref: 1-2
STAND,CENTER
€ 76.00
2
0918010040
ref: 2
SPACER(10X16X38.8)
€ 3.00
3
0910110018
ref: 3
09101-10030
BOLT
€ 5.50
4
0832121108
ref: 4
08321-01107
LOCK WASHER
€ 2.00
5
0938510001
ref: 5
09385-10005
CLIP
€ 1.50
6
0944320002
ref: 6
SPRING
€ 9.50
7
0932110001
ref: 7
CUSHION
€ 2.50
8-1
4231049400
ref: 8-1
STAND,SIDE
€ 72.50
8-2
4231049251
ref: 8-2
STAND,PROP
€ 72.50
9
0944317005
ref: 9
09443-17008-XC0
SPRING
€ 11.50
10
0910010067
ref: 10
BOLT(10X30)
€ 3.50
11
0831022108
ref: 11
08310-00107
NUT
€ 2.50
12
0932007001
ref: 12
CUSHION
€ 4.00
13-1
4233049400
ref: 13-1
BRACKET,SIDE STAND
€ 0.00
13-2
4233049251
ref: 13-2
BRACKET,SIDE STAND
€ 0.00
14
0910010007
ref: 14
09100-10287
BOLT
€ 4.50
15
0832121108
ref: 15
08321-01107
LOCK WASHER
€ 2.00
16
4311045351
ref: 16
PEDAL,BRAKE
€ 23.00
17
4312045350
ref: 17
ARM,BRAKE PEDAL ROD
€ 30.50
18
0110708308
ref: 18
01500-08307
BOLT (8X30)
€ 2.50
19
0832121088
ref: 19
08321-01087
LOCK WASHER
€ 2.00
20
0944837017
ref: 20
SPRING
€ 4.00
21
0920006029
ref: 21
PIN
€ 1.50
22
0411120158
ref: 22
04111-2015A
PIN
€ 1.50
23
0832221068
ref: 23
08322-01067
WASHER
€ 2.00
24
0110706208
ref: 24
01500-06207
BOLT
€ 2.00
25
0831011068
ref: 25
08310-00067
NUT
€ 2.50
