MUFFLER (MODEL D)

GS850G 1982 (Z) USA (E03)

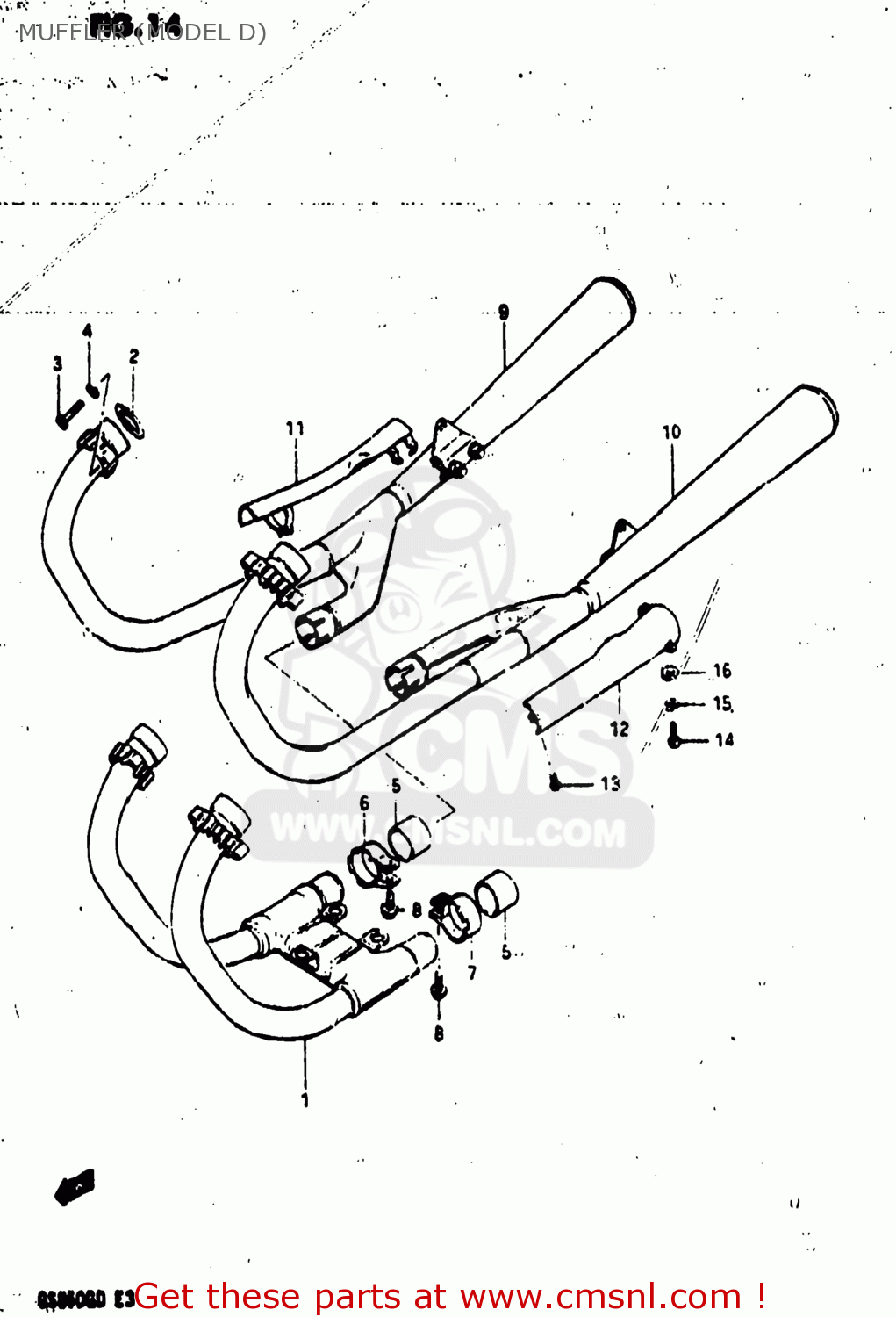

Muffler (model d) diagram GS850G 1982 (Z) USA (E03)

MUFFLER (MODEL D) GS850G 1982 (Z) USA (E03)

MUFFLER (MODEL D) GS850G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1410045100
ref: 1
14100-45101-H01

PIPE,EXHAUST

€ 219.50

2

1418111020
ref: 2
14181-01D00

GASKET,EXHAUST PIPE (NAS)

€ 8.00

3

0110708408
ref: 3
01500-0840A

BOLT 8X40

€ 3.00

4

0832121088
ref: 4
08321-01087

LOCK WASHER

€ 2.00

5

1477144020
ref: 5
14771-44030

CONNECTOR,MUFFLER

€ 35.00

6

1445944000
ref: 6

CLAMP,MUFFLER CONNECTOR,R

€ 14.00

7

1446944000
ref: 7

CLAMP,MUFFLER CONNECTOR,L

€ 13.00

8

0151708258
ref: 8
01550-08257

BOLT

€ 2.50

9

1430145121
ref: 9
14301-45140-H01

MUFFLER ASSEMBLY

€ 333.00

10

1430245121
ref: 10
14302-45140-H01

MUFFLER ASSEMBLY

€ 341.50

11

1478045010
ref: 11
14780-49400

COVER,MUFFLER

€ 44.00

12

1479045010
ref: 12

COVER,MUFFLER,LEFT

€ 31.50

13

0211205168
ref: 13
02112-05167

SCREW

€ 2.50

14

0211206108
ref: 14
02112-06107

SCREW

€ 1.50

15

0832121068
ref: 15
08321-01067

LOCK WASHER

€ 2.50

16

0832221068
ref: 16
08322-01067

WASHER

€ 2.00
