FRONT CALIPERS (MODEL D)
GS850G 1982 (Z) USA (E03)

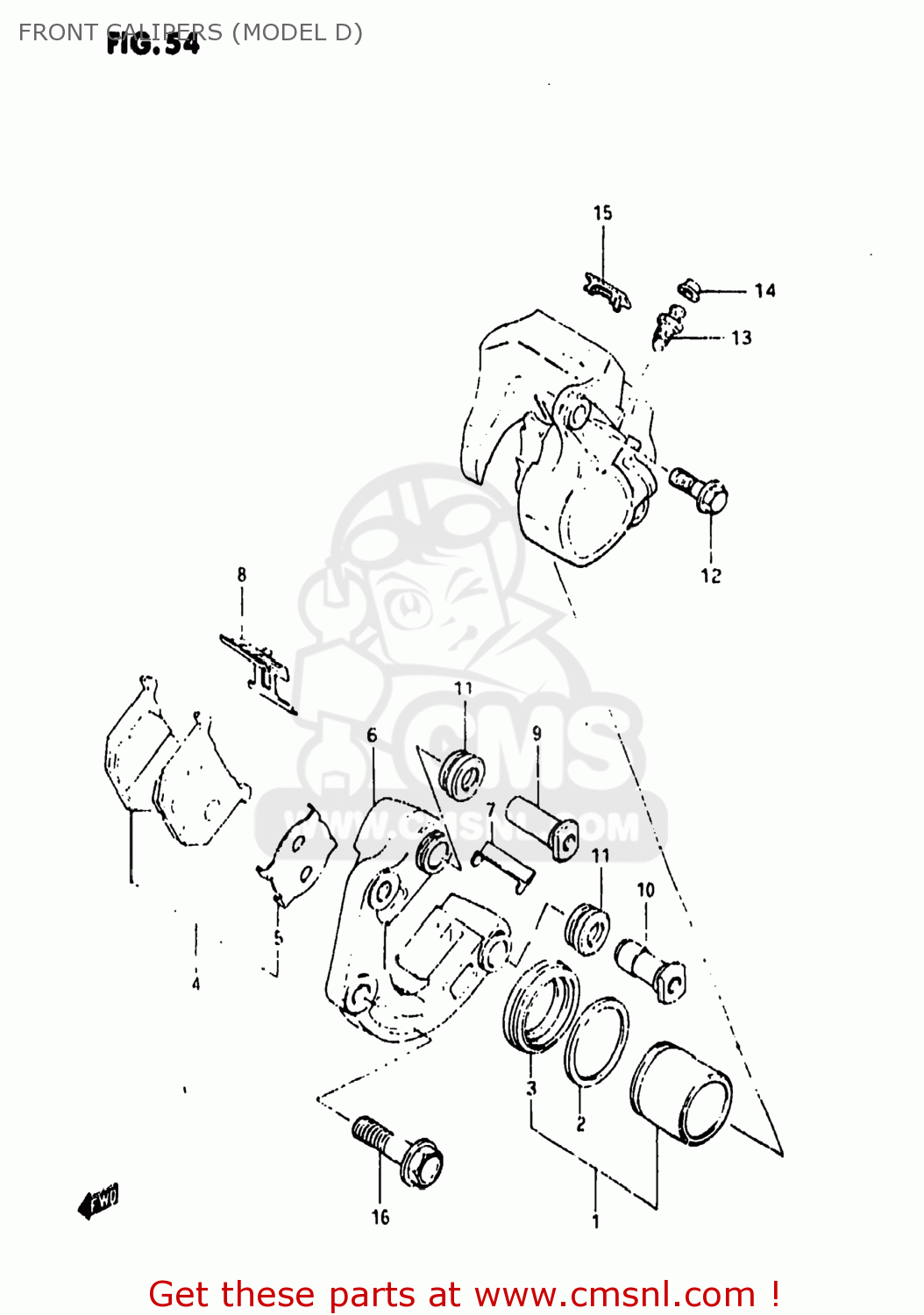

Front calipers (model d) diagram GS850G 1982 (Z) USA (E03)
FRONT CALIPERS (MODEL D) GS850G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5910045204
ref: 0
59100-45280
CALIPERS ASSY, FRONT RH
€ 408.00
0-1
5930045204
ref: 0-1
59300-45280
CALIPER ASSEMBLY,FRONT,LEFT
€ 232.00
1
5930145820
ref: 1
59301-45822
PISTON SET
€ 117.00
2
5910718410
ref: 2
69107-05CF0
SEAL,PISTON
€ 17.00
3
5930845200
ref: 3
BOOT,PISTON
€ 13.00
4
5930145811
ref: 4
59302-45850-XNA
PAD SET,BRAKE (MCA)
€ 72.50
5
5937145200
ref: 5
SHIM,PAD
€ 12.50
6-1
5910045881
ref: 6-1
59100-45882
CARRIER,CALIPER,RIGHT
€ 114.00
6-2
5930145841
ref: 6-2
CARRIER,CALIPER,LEFT
€ 67.00
7
5931645201
ref: 7
GUIDE,PAD
€ 19.00
8
5931545200
ref: 8
SPRING,PAD
€ 29.00
9
5930545200
ref: 9
AXLE NO.1
€ 15.00
10
5930645200
ref: 10
AXLE NO.2
€ 13.50
11
5931245200
ref: 11
BOOT,AXLE
€ 10.50
12
5931445201
ref: 12
BOLT
€ 12.00
13
5912118410
ref: 13
BLEEDER
€ 8.00
14
5912218410
ref: 14
55156-66310
CAP,BREATHER
€ 6.00
15
5932445201
ref: 15
COVER
€ 5.00
16
0910310019
ref: 16
BOLT(10X37)
€ 2.50
