STARTING MOTOR

GS850G 1982 (Z) USA (E03)

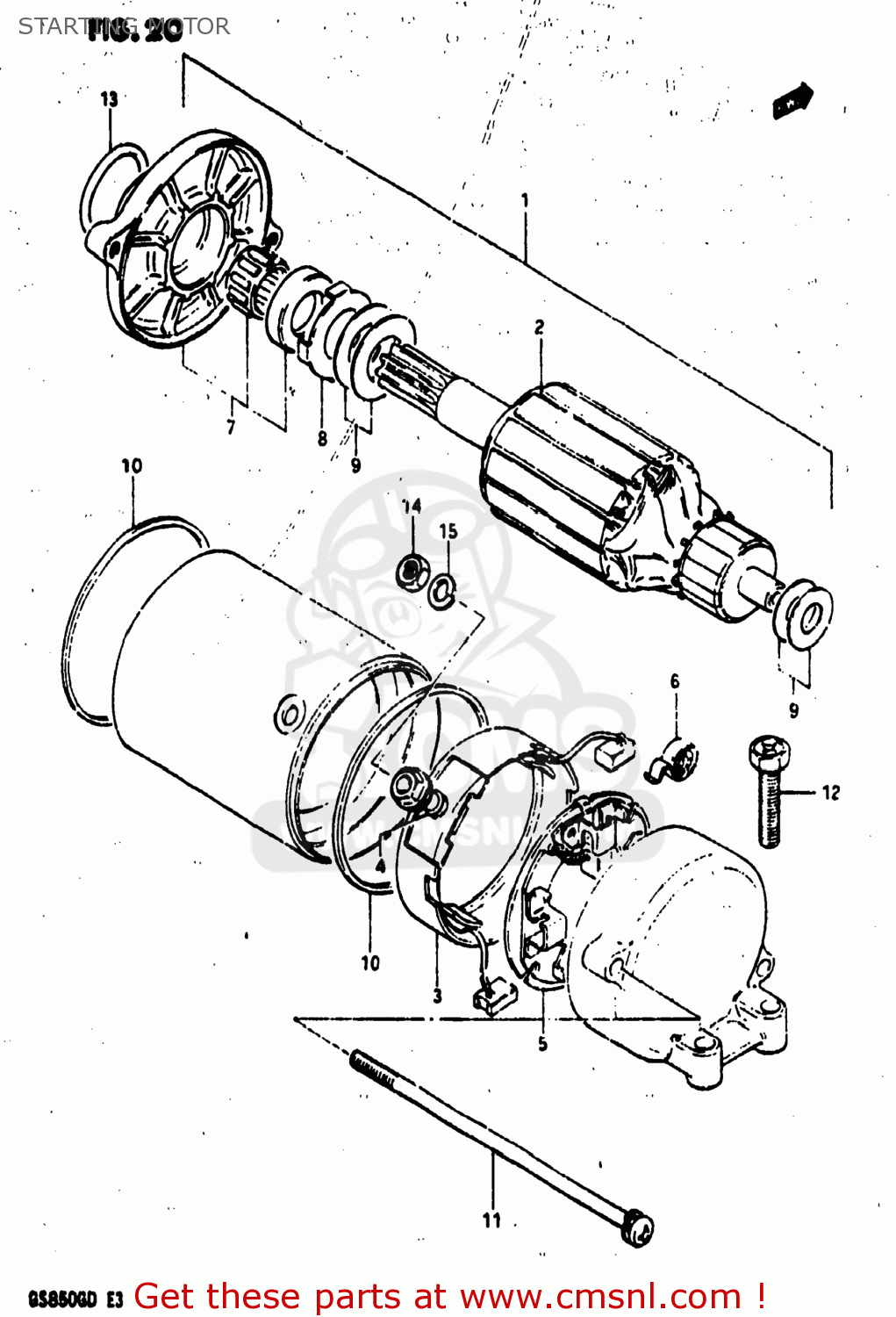

Starting motor diagram GS850G 1982 (Z) USA (E03)

STARTING MOTOR GS850G 1982 (Z) USA (E03)

STARTING MOTOR GS850G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3110049040
ref: 1
31100-49050

MOTOR ASSEMBLY,STARTING

€ 873.50

2

3131149040
ref: 2

ARMATURE

€ 118.50

3

3113049040
ref: 3
31130-06B00

BRUSH TERMINAL SET (+)

€ 54.00

4

3114349040
ref: 4

O RING

€ 3.00

5

3113249040
ref: 5
31132-06B00

HOLDER,BRUSH

€ 35.50

6

3113549040
ref: 6

SPRING,BRUSH

€ 5.00

7

3110049810
ref: 7

HOUSING SET,STARTING MOTOR

€ 80.50

8

3136049240
ref: 8
31170-31300

SHIM SET

€ 10.50

9

3136049040
ref: 9
31170-31300

SHIM SET

€ 10.50

10

3126449040
ref: 10

SEAL,RING

€ 7.50

11

3128149040
ref: 11

BOLT,STARTING MOTOR HOUSING

€ 7.00

12

0912806024
ref: 12
09103-06212

SCREW (6X25)

€ 2.50

13

0928024001
ref: 13

O RING(D:2,ID:24.5)

€ 2.00

14

0831022068
ref: 14
08310-00067

NUT 6MM

€ 2.50

15

0832121068
ref: 15
08321-01067

LOCK WASHER

€ 2.50
