CYLINDER HEAD
GS850G 1982 (Z) USA (E03)

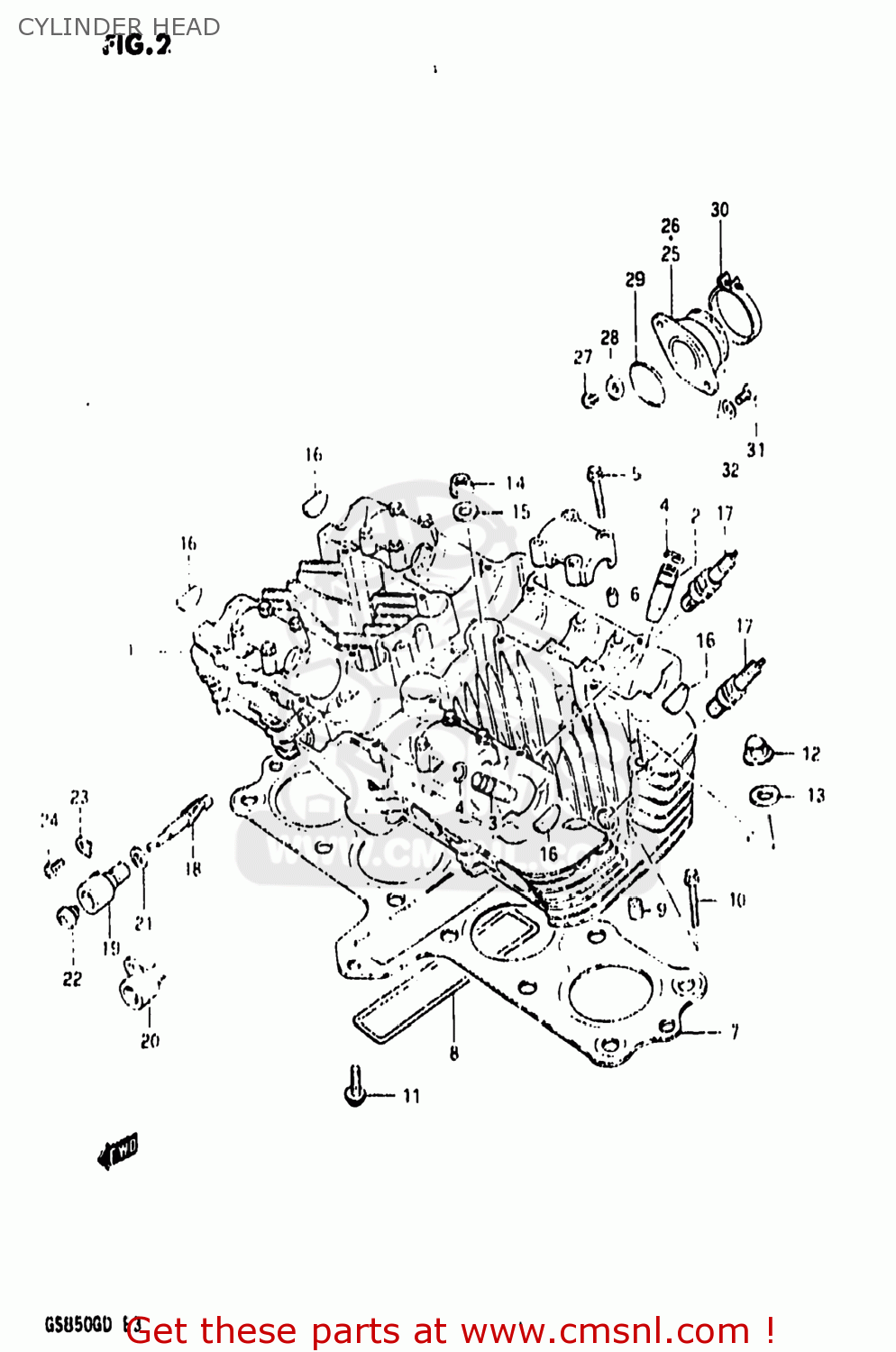

Cylinder head diagram GS850G 1982 (Z) USA (E03)
CYLINDER HEAD GS850G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110045120
ref: 1-1
11100-45121
HEAD ASSEMBLY,CYLINDER
€ 468.50
1-2
1110045130
ref: 1-2
11100-45131
HEAD ASSEMBLY,CYLINDER
€ 286.00
2
1111545740
ref: 2
GUIDE,INTAKE VALVE
€ 25.50
3
1111645740
ref: 3
GUIDE,EXHAUST VALVE
€ 27.00
4
0938110003
ref: 4
RING,SNAP
€ 2.50
5
0910306026
ref: 5
BOLT(6X39)
€ 2.00
6
0920608001
ref: 6
PIN(6.2X8X11)
€ 2.00
7-1
1114149003
ref: 7-1
11141-49410
GASKET,CYLINDER HEAD (MCA)
€ 102.50
7-2
1114149004
ref: 7-2
11141-49410
GASKET,CYLINDER HEAD (MCA)
€ 102.50
8
0928099003
ref: 8
O RING(D:3,ID:26X157)
€ 34.00
9
0421111189
ref: 9
PIN
€ 2.00
10
0151706458
ref: 10
01550-06457
BOLT,UNDER
€ 2.50
11
0151706308
ref: 11
01550-06307
BOLT
€ 2.00
12
0915910026
ref: 12
NUT
€ 6.00
13
0916810017
ref: 13
GASKET(10.5X22X2) (NAS)
€ 3.50
14
0831616108
ref: 14
08316-10107
NUT
€ 2.00
15
0916010039
ref: 15
WASHER(10.5X22X2.3)
€ 2.50
16
0924123002
ref: 16
PLUG
€ 8.50
17-1
0948200056
ref: 17-1
09482-00091
SPARK PLUG
€ 3.00
17-2
0948200196
ref: 17-2
09482-00247-111
SPARK PLUG W24ES-U
€ 3.50
18
2643145001
ref: 18
26431-45002
GEAR,TACHOMETER DRIVEN
€ 43.00
19
2644145000
ref: 19
26441-49000
SLEEVE,TACHOMETER DRIVE
€ 18.00
20
2644149000
ref: 20
SLEEVE,TACHOMETER DRIVE GEAR
€ 18.00
21
2645145000A
ref: 21
SEAL,TACHOMETER DRIVEN
€ 4.50
22
0928905002
ref: 22
SEAL,OIL(5X12X8)
€ 11.00
23
2644933000
ref: 23
PLATE,TACH DRIVE GEAR SLEEVE
€ 3.50
24
0912805101
ref: 24
SCREW(5X12)
€ 1.50
25
1311045100
ref: 25
PIPE,INTAKE,R
€ 42.00
26
1312045100
ref: 26
PIPE,INTAKE,L
€ 42.00
27
0910605006
ref: 27
07130-0510B
BOLT
€ 2.00
28
0916805010
ref: 28
GASKET(5.3X9.3X1.2) (NAS)
€ 2.00
29
0928038003
ref: 29
09280-38004
O-RING
€ 4.50
30
0940250306
ref: 30
CLAMP
€ 6.00
31
0211206208
ref: 31
02112-06207
SCREW
€ 2.00
32
0832221068
ref: 32
08322-01067
WASHER
€ 2.00
