WIRING HARNESS
GS850G 1982 (Z) USA (E03)

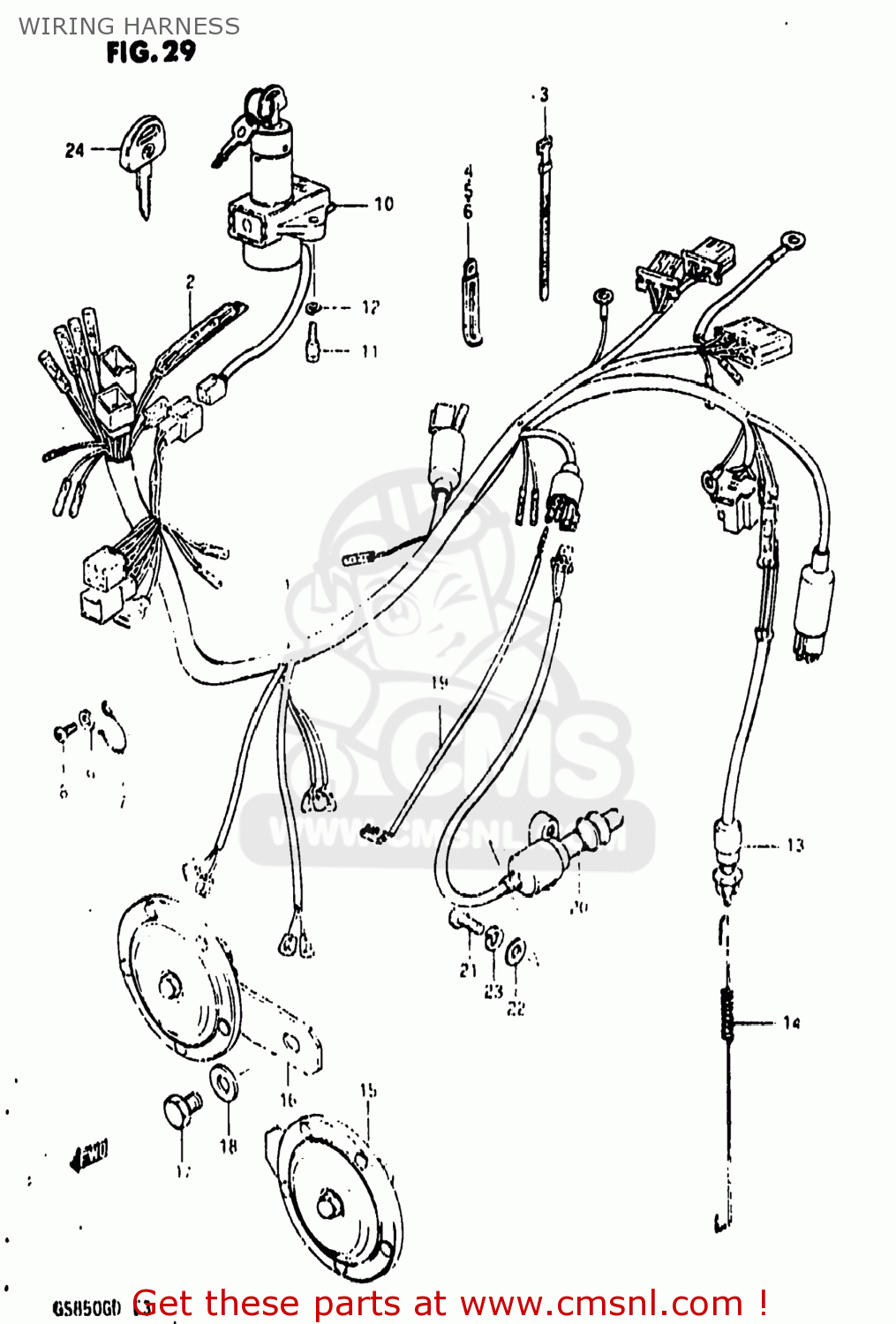

Wiring harness diagram GS850G 1982 (Z) USA (E03)
WIRING HARNESS GS850G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661049410
ref: 1-1
36610-494K0
HARNESS,WIRING
€ 149.50
1-2
3661045190
ref: 1-2
HARNESS,WIRING
€ 0.00
2
3661102100
ref: 2
DIODE
€ 6.00
3
0940712402
ref: 3
CLAMP(L:120)
€ 3.00
4
0940406419
ref: 4
09404-06435
CLAMP
€ 2.50
5
0940406414
ref: 5
09404-06433
CLAMP
€ 3.00
6
0940406415
ref: 6
09404-06433
CLAMP
€ 3.00
7
3661944000
ref: 7
36619-44002
GUIDE,WIRING HARNESS
€ 2.50
8
0211206128
ref: 8
02112-06127
SCREW 6X12
€ 2.00
9
0832221068
ref: 9
08322-01067
WASHER
€ 2.00
10
3710049201
ref: 10
SWITCH ASSY,IGNITION
€ 141.00
11
3715247010
ref: 11
07130-0616B
BOLT
€ 3.00
12
0832121068
ref: 12
08321-01067
LOCK WASHER
€ 2.50
13
3774004571
ref: 13
37740-48071
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
14
0944306018
ref: 14
09443-06018-XC0
SPRING
€ 4.50
15
3850249410
ref: 15
38502-49420
HORN ASSEMBLY,LOW PITCH
€ 52.50
16
3850149410
ref: 16
38501-49420
HORN ASSEMBLY,HIGH PITCH
€ 52.50
17
0110708168
ref: 17
01500-0816B
BOLT
€ 2.00
18
0832211088
ref: 18
08322-01087
WASHER
€ 2.00
19
3685345000
ref: 19
36853-45001
WIRE
€ 9.50
20
3784049400
ref: 20
37840-14A01
SWITCH ASSEMBLY,SIDE STAND
€ 75.00
21
0110705168
ref: 21
01500-0516B
BOLT
€ 1.50
22
0832221058
ref: 22
08322-01057
WASHER
€ 2.50
23
0832121058
ref: 23
08321-0105A
LOCK WASHER
€ 2.00
24
3714647010
ref: 24
KEY,BLANK
€ 15.00
