LEFT HANDLE SWITCH (MODEL Z)
GS850G 1982 (Z) USA (E03)

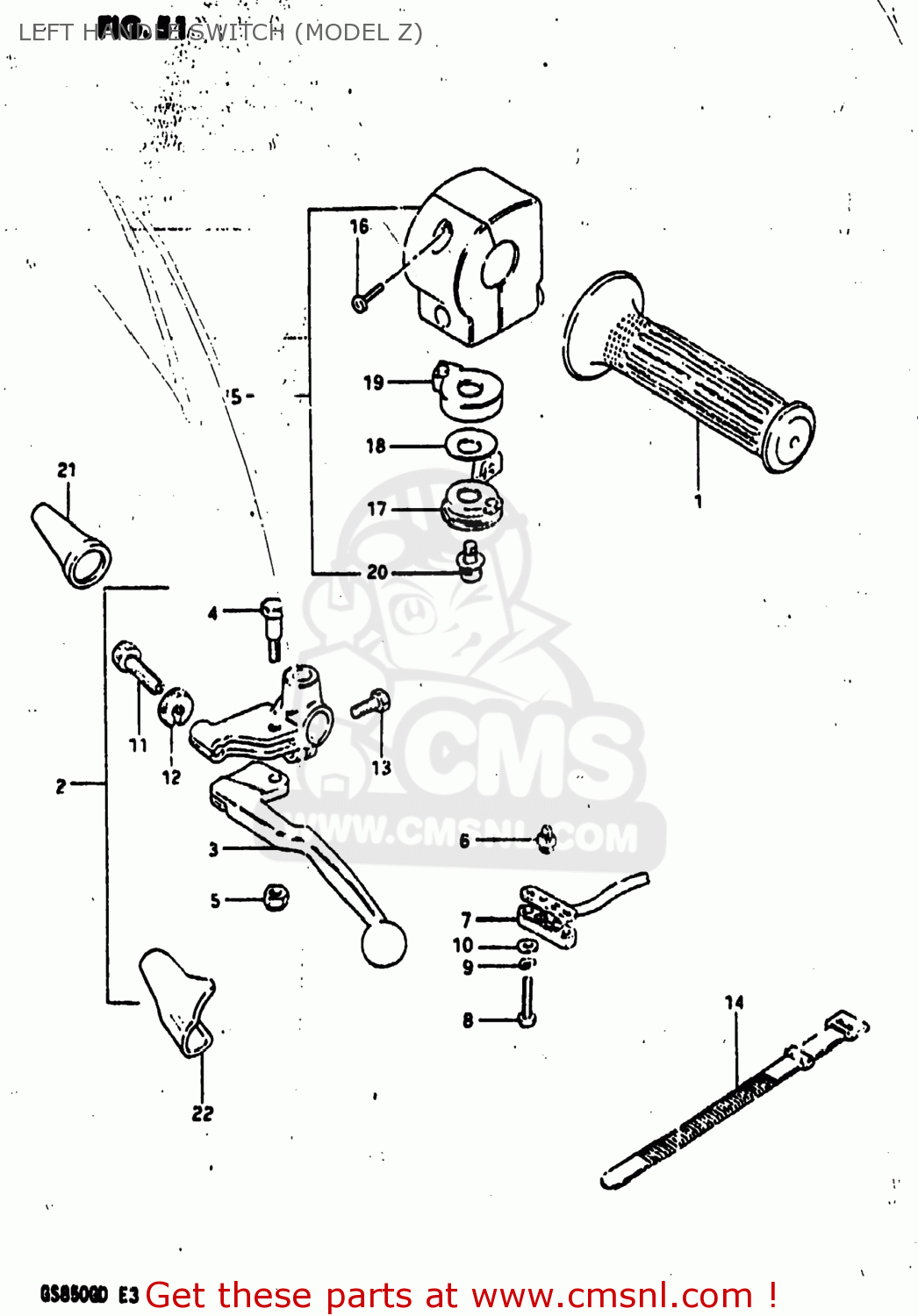

Left handle switch (model z) diagram GS850G 1982 (Z) USA (E03)
LEFT HANDLE SWITCH (MODEL Z) GS850G 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5721145010
ref: 1
57211-49510
GRIP,LEFT
€ 26.50
2
5750049112
ref: 2
57500-49301
LEVER ASSEMBLY
€ 53.50
3
5762049111
ref: 3
LEVER,CLUTCH
€ 34.00
4
5743111011
ref: 4
57431-11013
BOLT,LEVER
€ 6.00
5
0831921068
ref: 5
08319-2106A
NUT 6MM
€ 2.00
6
5746518601
ref: 6
CONTACT,SWITCH
€ 4.50
7
5748133010
ref: 7
COVER,FR BK TERMINAL BASE
€ 19.50
8
0912503105
ref: 8
09125-03105-XC0
SCREW
€ 2.50
9
0832121038
ref: 9
09162-03001
LOCK WASHER
€ 1.50
10
0832221038
ref: 10
08322-01037
WASHER
€ 2.00
11
5744111010
ref: 11
ADJUSTER,CABLE
€ 8.00
12
5744211010
ref: 12
NUT,CABLE ADJUSTER
€ 4.00
13
5745149100
ref: 13
BOLT,CLUTCH LEVER HOLDER
€ 3.00
14
0940712402
ref: 14
CLAMP(L:120)
€ 3.00
15
3740049470
ref: 15
37400-49473
SWITCH ASSEMBLY,HANDLE,LEFT
€ 141.00
16
0211205168
ref: 16
02112-05167
SCREW
€ 2.50
17
5872127502
ref: 17
58721-27503
LEVER,STARTER
€ 8.00
18
5872203010
ref: 18
WASHER,ADJUSTER
€ 3.00
19
3757249440
ref: 19
37572-49441
BODY,CHOCK
€ 15.50
20
3757449440
ref: 20
02112-7516A
SCREW,CHOKE LE
€ 2.50
21
5827331000
ref: 21
BOOT,CLUTCH CABLE
€ 2.50
22
5766131000
ref: 22
COVER,CLUTCH LEVER
€ 5.50
