GENERATOR

GS850G 1982 (Z) USA (E03)

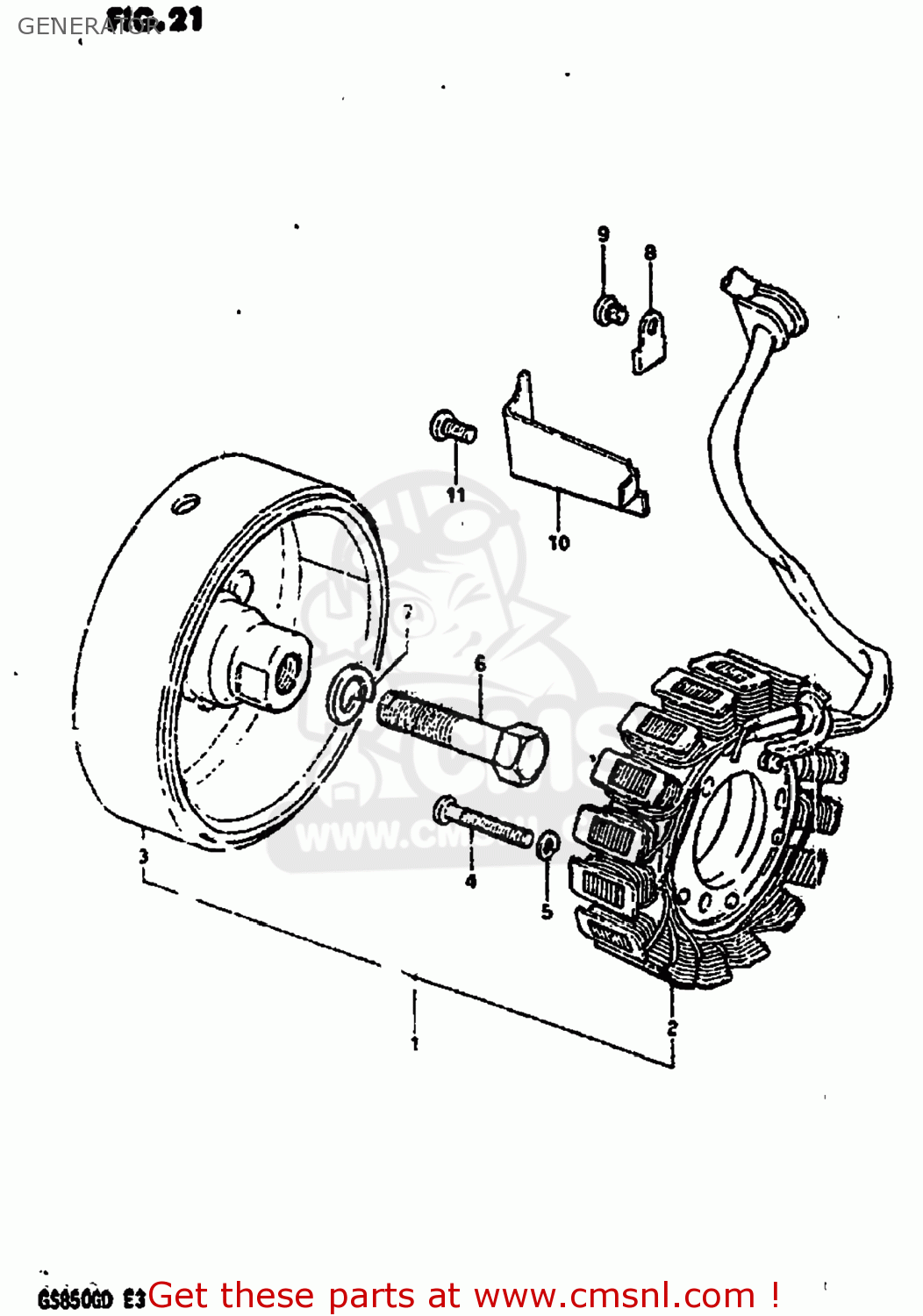

Generator diagram GS850G 1982 (Z) USA (E03)

GENERATOR GS850G 1982 (Z) USA (E03)

GENERATOR GS850G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

3140045110
ref: 1-1
31401-45120

GENERATOR ASSEMBLY

€ 341.00

1-2

3140045111
ref: 1-2
31401-45120

GENERATOR ASSEMBLY

€ 341.00

2-1

3140145110
ref: 2-1
31401-45120

STATOR ASSEMBLY

€ 341.00

2-2

3140145111
ref: 2-2
31401-45120

STATOR ASSEMBLY

€ 341.00

3

3140245110
ref: 3
31402-45120

ROTOR ASSEMBLY

€ 333.00

4

0211205308
ref: 4
02112-0530A

SCREW

€ 1.50

5

0832121058
ref: 5
08321-0105A

LOCK WASHER

€ 2.00

6

0110712458
ref: 6
01500-12457

BOLT 12X45

€ 5.50

7

0832131128
ref: 7
08321-01127

WASHER,LOCK 12

€ 2.50

8

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

9

0211205088
ref: 9
02112-05087

SCREW

€ 2.00

10

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

11

0211206108
ref: 11
02112-06107

SCREW

€ 1.50
