SEAT TAIL COVER (MODEL Z)

GS850G 1982 (Z) USA (E03)

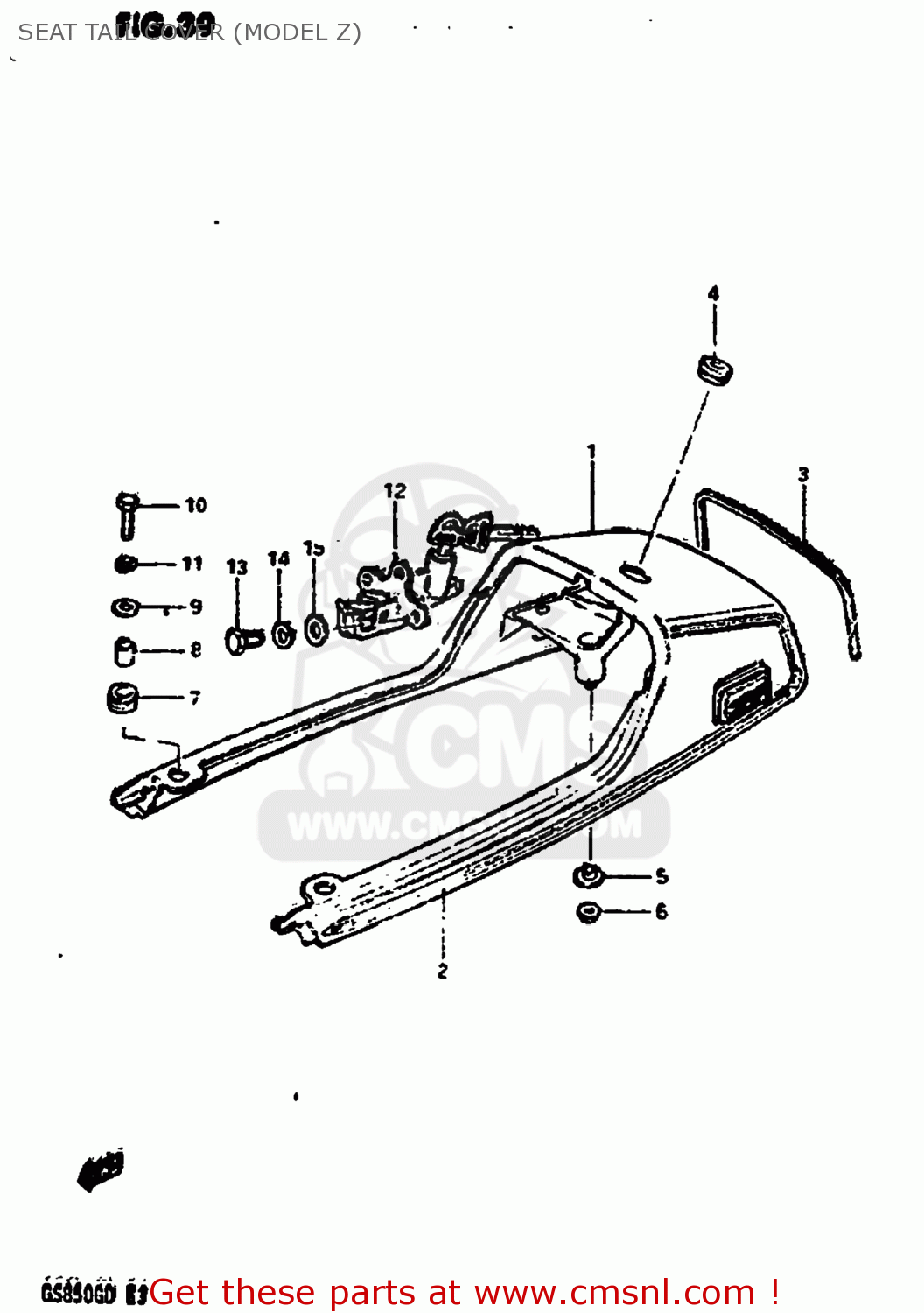

Seat tail cover (model z) diagram GS850G 1982 (Z) USA (E03)

SEAT TAIL COVER (MODEL Z) GS850G 1982 (Z) USA (E03)

SEAT TAIL COVER (MODEL Z) GS850G 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4550049410019
ref: 1-1
45510-49400

COVER SET,SEAT TAIL

€ 117.50

1-2

455004941010U
ref: 1-2
45510-49400

COVER SET,SEAT TAIL

€ 117.50

2

6816045710764
ref: 2

TAPE SET,SEAT TAIL COVER

€ 14.50

3

4556249400
ref: 3

MOLDING,SEAT TAIL COVER

€ 5.50

4

4552249200
ref: 4

GROMMET,SEAT LOCK HOLE

€ 5.50

5

0916906016
ref: 5

WASHER

€ 1.50

6

0831921068
ref: 6
08319-2106A

NUT 6MM

€ 2.00

7

0932010003
ref: 7

CUSHION

€ 2.50

8

0918007013
ref: 8
09180-06290

SPACER (7X10X12)

€ 2.50

9

0916006004
ref: 9
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

10

0110706258
ref: 10
01500-06257

BOLT

€ 2.00

11

0832121068
ref: 11
08321-01067

LOCK WASHER

€ 2.50

12

9570049830
ref: 12

LOCK SET,SEAT

€ 81.50

13

0110706128
ref: 13
01500-06127

BOLT

€ 2.00

14

0832121068
ref: 14
08321-01067

LOCK WASHER

€ 2.50

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00
