CYLINDER HEAD

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

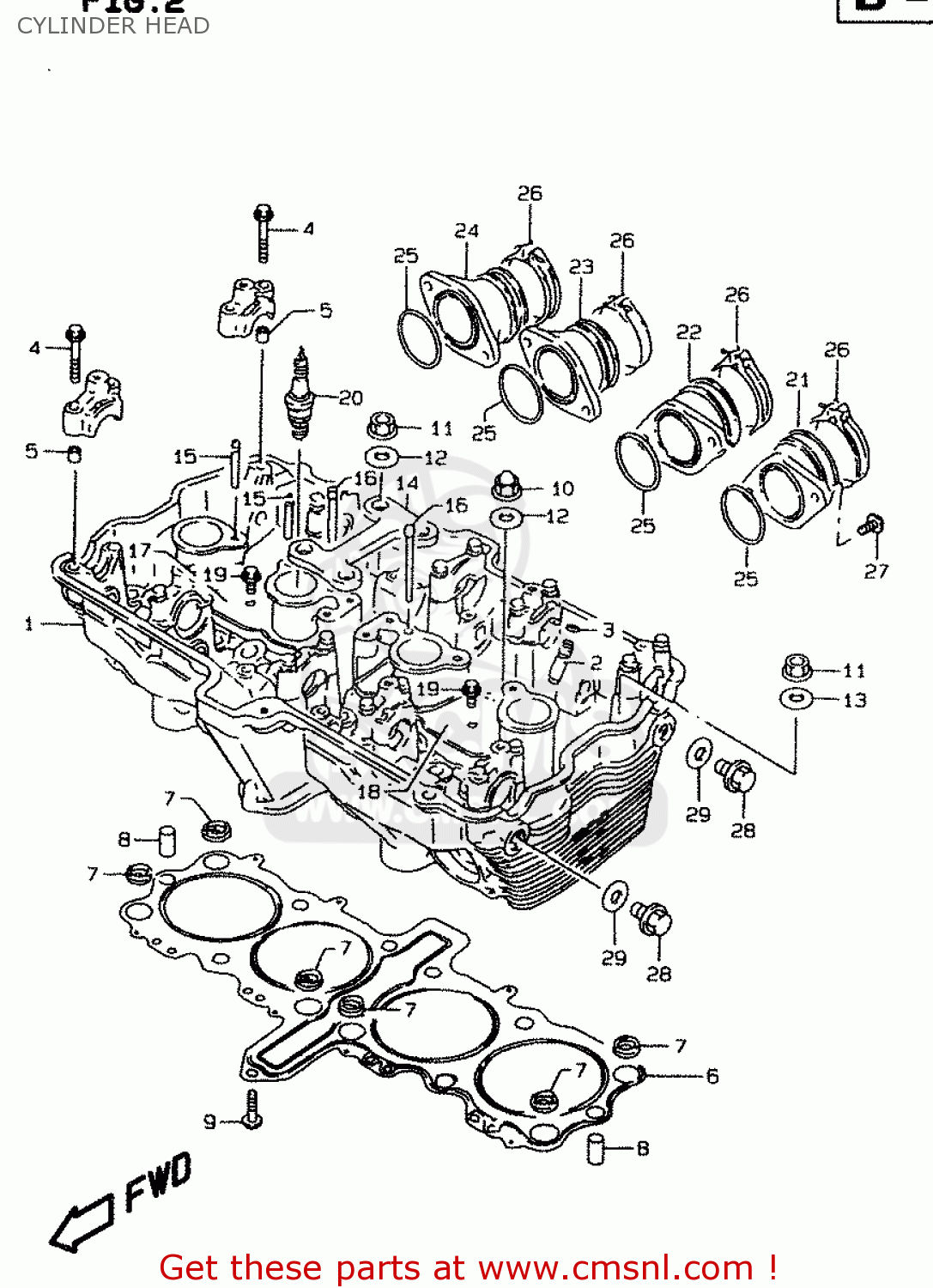

Cylinder head diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

CYLINDER HEAD GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

CYLINDER HEAD GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1110027E50
ref: 1

HEAD ASSY,CYLINDER

€ 1,817.50

1

1110027E60
ref: 1
E18

HEAD ASSY,CYLINDER

€ 1,855.50

2

1111606B70
ref: 2

GUIDE,VALVE

€ 43.00

3

0938110004
ref: 3

RING,SNAP

€ 1.50

4

0910306026
ref: 4

BOLT(6X39)

€ 2.00

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1114127E00
ref: 6

GASKET,CYLINDER HEAD

€ 91.50

7

1114348B01
ref: 7

O-RING,HEAD GASKET

€ 6.00

8

0920911007
ref: 8

PIN

€ 16.00

9

0155006303
ref: 9

BOLT

€ 2.50

10

0915910069
ref: 10

NUT

€ 5.00

11

0831610103
ref: 11

NUT

€ 2.00

12

0916810031
ref: 12

GASKET(10.2X20X2).3 (NAS)

€ 2.00

13

0916010060
ref: 13

WASHER (10.5X22X2.3)

€ 2.50

14

1113840C10
ref: 14

PLATE,HEAD REINFORCEMENT

€ 27.00

15

1113127A00
ref: 15

PIPE,OIL NO.1

€ 6.00

16

1113327A00
ref: 16

PIPE,OIL NO.3

€ 7.00

17

1113527A02
ref: 17

PLATE,OIL PIPE,R

€ 4.00

18

1113627A02
ref: 18

PLATE,OIL PIPE,L

€ 4.00

19

0155006123
ref: 19

BOLT

€ 2.50

20

0948200389
ref: 20

PLUG,SPARK(JR9B)

€ 8.00

20

0948200391
ref: 20
OPT

PLUG,SPARK(JR10B)

€ 9.00

21

1310140C00
ref: 21

PIPE,INTAKE NO.1

€ 43.50

22

1310240C00
ref: 22

PIPE,INTAKE NO.2

€ 43.50

23

1310340C00
ref: 23

PIPE,INTAKE NO.3

€ 43.50

24

1310440C00
ref: 24

PIPE,INTAKE NO.4

€ 38.00

25

0928040010
ref: 25

O RING(D:2.4,ID:39.7)

€ 3.50

26

0940252208
ref: 26

CLAMP

€ 5.50

27

0712006163
ref: 27

BOLT MAGNETO S

€ 2.50

28

0924814010
ref: 28

PLUG

€ 5.00

28

0924814010
ref: 28

PLUG

€ 5.00

28

0924814010
ref: 28
GSF1200W/X E18

PLUG

€ 5.00

28

0924714032
ref: 28
GSF1200W/X E18

PLUG

€ 5.00

29

0916814002
ref: 29

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50
