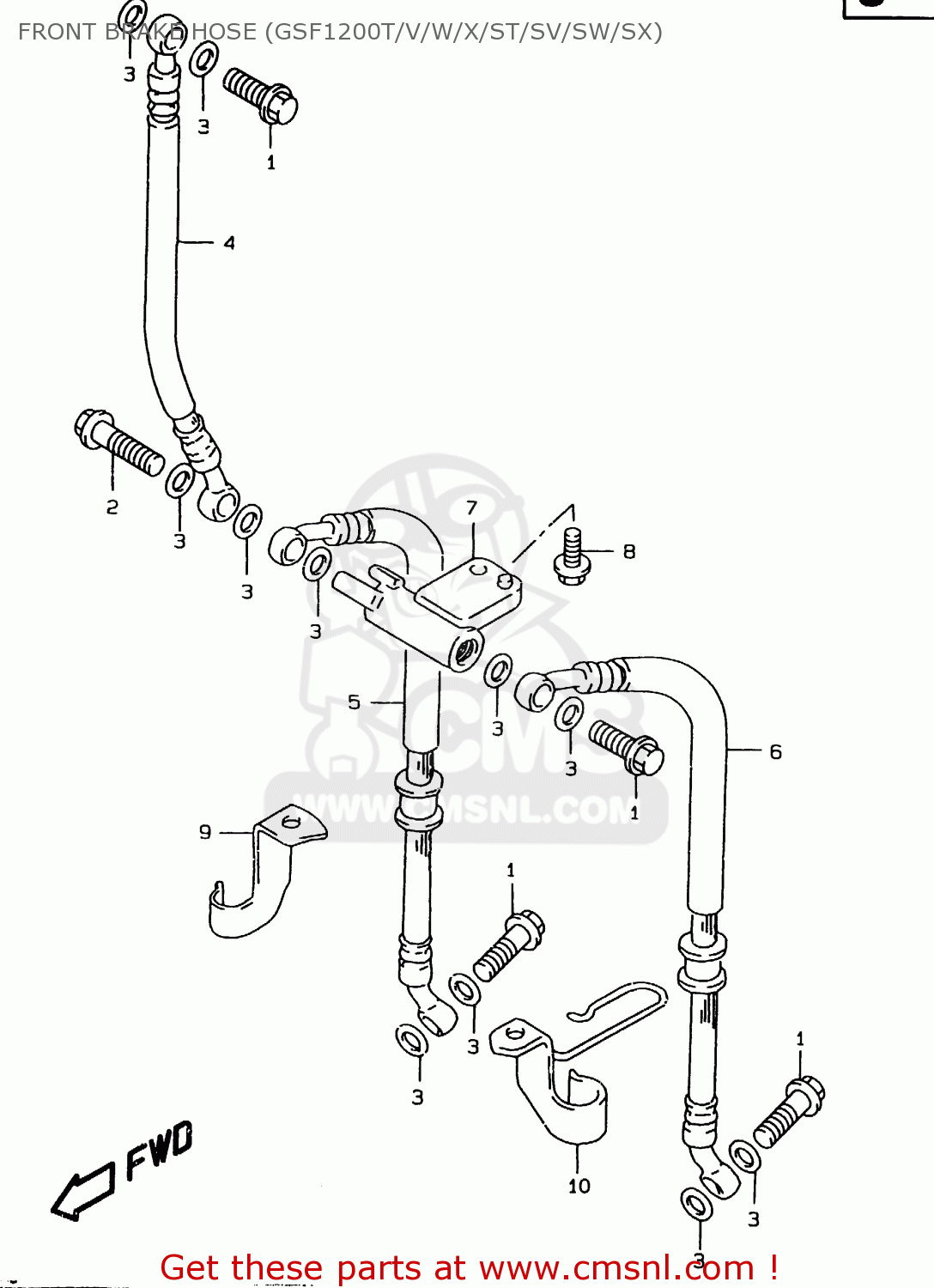

FRONT BRAKE HOSE (GSF1200T/V/W/X/ST/SV/SW/SX)

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

Front brake hose (gsf1200t/v/w/x/st/sv/sw/sx) diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

0936010039
ref: 1
GSF1200T/ST

BOLT UNION

€ 6.50

0936010041
ref: 1
GSF1200V/SV/W/SW/X/S

BOLT UNION

€ 6.50

0936010018
ref: 2
GSF1200T/ST

BOLT UNION

€ 7.00

0936010043
ref: 2
GSF1200V/SV/W/SW/X/S

BOLT UNION

€ 6.50

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

5948026E00
ref: 4
GSF1200T/V/W/X

HOSE,FR BRAKE NO.1

€ 48.00

5948026E10
ref: 4
GSF1200ST/SV/SW/SX

HOSE COMP,FRONT BRAKE

€ 65.00

5924027E00
ref: 5

HOSE,FR BRAKE NO.2,R

€ 61.00

5944027E00
ref: 6

HOSE COMP,FRONT BRAKE

€ 63.00

5949117E00
ref: 7

JOINT,BRAKE HOSE

€ 68.50

0155006163
ref: 8

BOLT

€ 2.50

5926807D00
ref: 9

CLAMP,FR BRAKE HOSE,R

€ 8.00

5926027E00
ref: 10

CLAMP,FR BRAKE HOSE,L

€ 17.50
