REAR FENDER (GSF1200SAV/SAW/SAX)

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

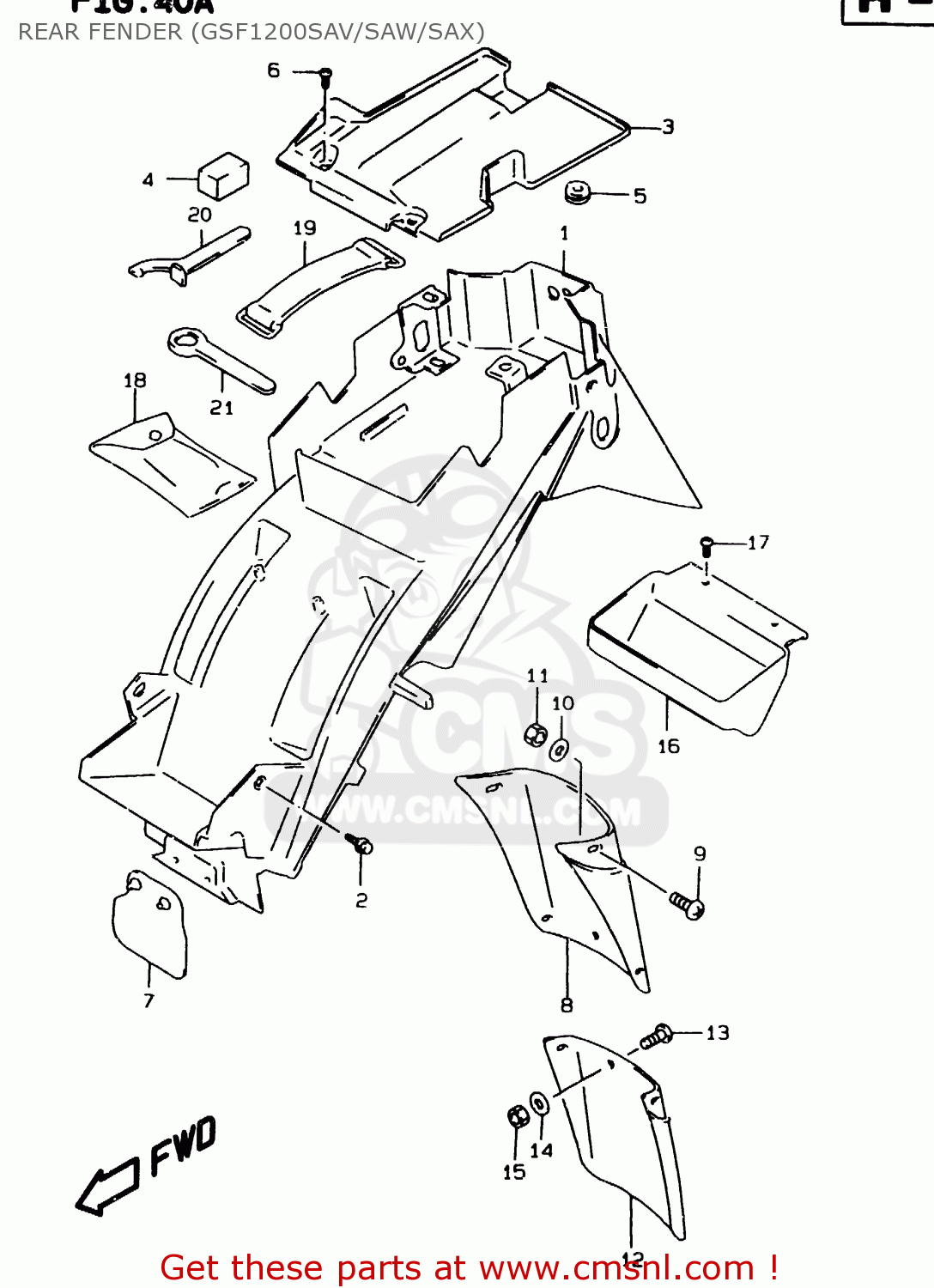

Rear fender (gsf1200sav/saw/sax) diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

REAR FENDER (GSF1200SAV/SAW/SAX) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

REAR FENDER (GSF1200SAV/SAW/SAX) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

6311027E00
ref: 1

FENDER, REAR

€ 111.00

1

6311027E10
ref: 1
E18

FENDER, REAR

€ 165.50

1

6311027E20
ref: 1
E17, E22

FENDER,RR

€ 0.00

2

6316143E00
ref: 2

BOLT

€ 3.00

3

6311727E00
ref: 3

COVER,ECU

€ 21.50

4

6311827E00
ref: 4

CUSHION,ECU COVER

€ 3.00

5

0932008013
ref: 5

CUSHION

€ 4.00

6

0354104123
ref: 6

SCREW

€ 1.50

7

6341133400
ref: 7

GUIDE,RR FENDER MUD

€ 7.50

8

6331026E20
ref: 8
E17, E22

EXTENSION,RR FENDER

€ 25.00

8

6331026E30
ref: 8
E18

EXTENSION,RR FENDER

€ 27.50

9

0214206163
ref: 9
E17, E18, E22

SCREW

€ 2.50

10

0916006084
ref: 10
E17, E18, E22

WASHER(6.5X18X1.6)

€ 2.00

11

0831921068
ref: 11
E17, E18, E22

NUT 6MM

€ 2.00

12

6333127E00
ref: 12
E18

MUDGUARD,RR FENDER EXTENSION

€ 10.50

13

0214206163
ref: 13
E18

SCREW

€ 2.50

14

0916006084
ref: 14
E18

WASHER(6.5X18X1.6)

€ 2.00

15

0831921068
ref: 15
E18

NUT 6MM

€ 2.00

16

4155127E00
ref: 16

HOLDER,TOOL

€ 26.00

17

0354105123
ref: 17

SCREW

€ 2.00

18

0980021017
ref: 18

TOOL ASSY

€ 59.00

19

0946200008
ref: 19

BAND

€ 4.50

20

0982200005
ref: 20

CLAMP

€ 22.00

21

0981700039
ref: 21

RING,SPANNER(24)

€ 6.50
