SECOND AIR (GSF1200ST/SV/SW/SX E18)

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

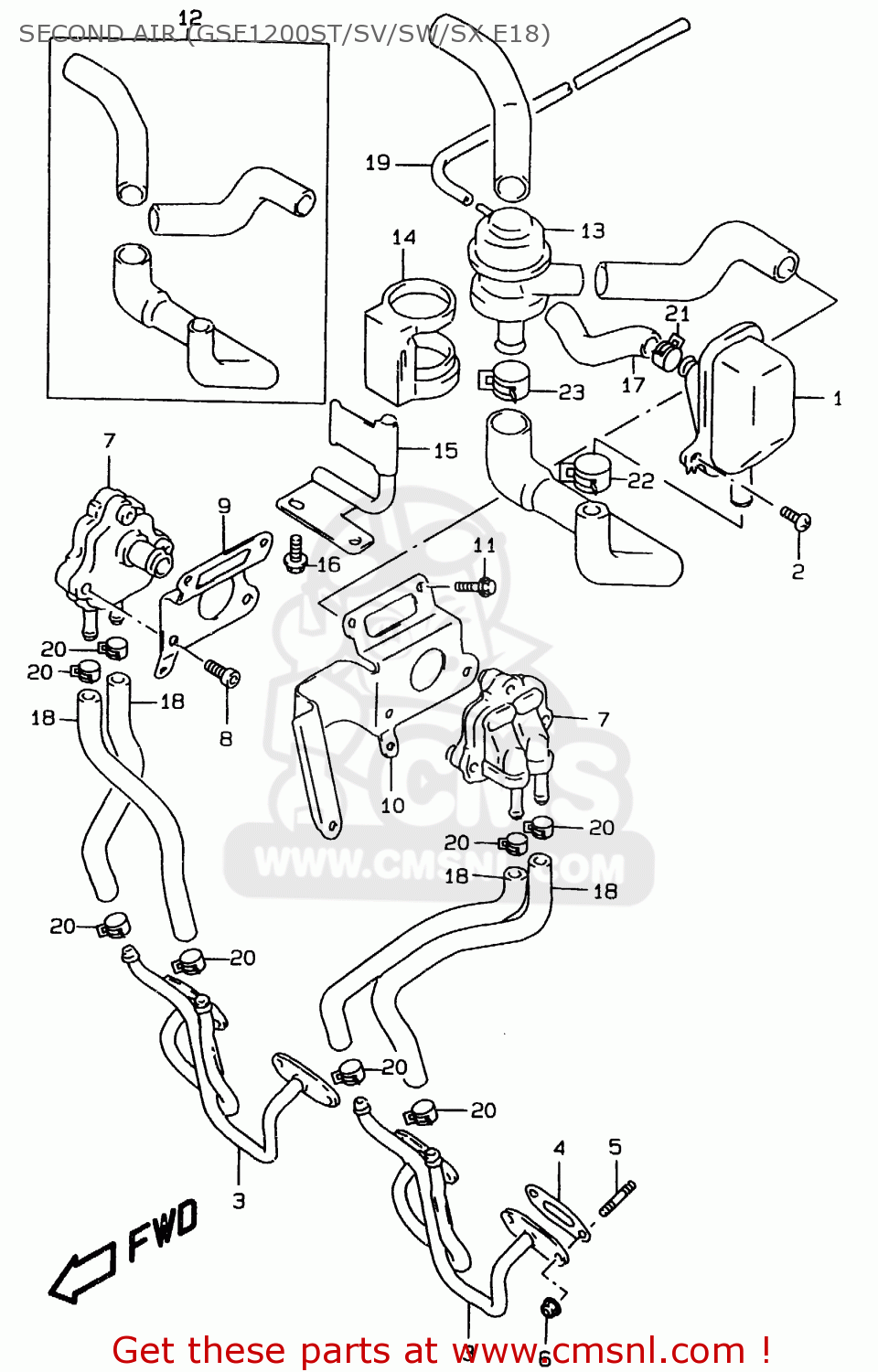

Second air (gsf1200st/sv/sw/sx e18) diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

SECOND AIR (GSF1200ST/SV/SW/SX E18) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

SECOND AIR (GSF1200ST/SV/SW/SX E18) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1380027E00
ref: 1

CLEANER ASSY,2ND AIR

€ 36.00

2

0214206163
ref: 2

SCREW

€ 2.50

3

1843026D00
ref: 3

PIPE,2ND AIR,L

€ 0.00

4

1844117C10
ref: 4

GASKET,SECOND AIR PIPE (NAS)

€ 7.00

5

0142106163
ref: 5

STUD BOLT

€ 2.00

6

0831610063
ref: 6

NUT

€ 2.50

7

1845048B00
ref: 7

VALVE ASSY,2ND AIR REED

€ 125.50

8

0713005167
ref: 8

BOLT

€ 2.50

9

1862127E00
ref: 9

BRACKET,REED VALVE,RIGHT

€ 0.00

10

1867027E00
ref: 10

BRACKET COMP,REED VALVE

€ 0.00

11

0155006123
ref: 11

BOLT

€ 2.50

12

1842027810
ref: 12

HOSE SET,SECOND AIR

€ 0.00

13

1851046E00
ref: 13

VALVE ASSEMBLY,SECOND AIR SWITCH

€ 0.00

14

1848701D00
ref: 14

CUSHION,2ND AIR VALVE

€ 10.00

15

1865027E00
ref: 15

BRACKET COMP,SECOND AIR S

€ 0.00

16

0155006123
ref: 16

BOLT

€ 2.50

17

0935212163600
ref: 17
L:600->100

HOSE(12X16X600)

€ 24.50

18

0935590145600
ref: 18
L:600->200

HOSE(9X14X600)

€ 10.00

19

0935940701600
ref: 19
L:600->400

HOSE(4X7X600)

€ 9.00

20

0940113417
ref: 20
<-09401-13413

CLIP

€ 2.50

21

0940116402
ref: 21
MODEL T/V

CLIP

€ 2.00

21

0940116403
ref: 21
MODEL W/X

CLIP

€ 2.00

22

0940121403
ref: 22
MODEL T/V

CLIP

€ 3.00

22

0940120405
ref: 22
MODEL W/X

CLIP

€ 3.00

23

0940123403
ref: 23
~E.NO.108880

CLIP

€ 4.50

23

0940125403
ref: 23
E.NO.108881~

CLIP

€ 3.00
