OIL PAN

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

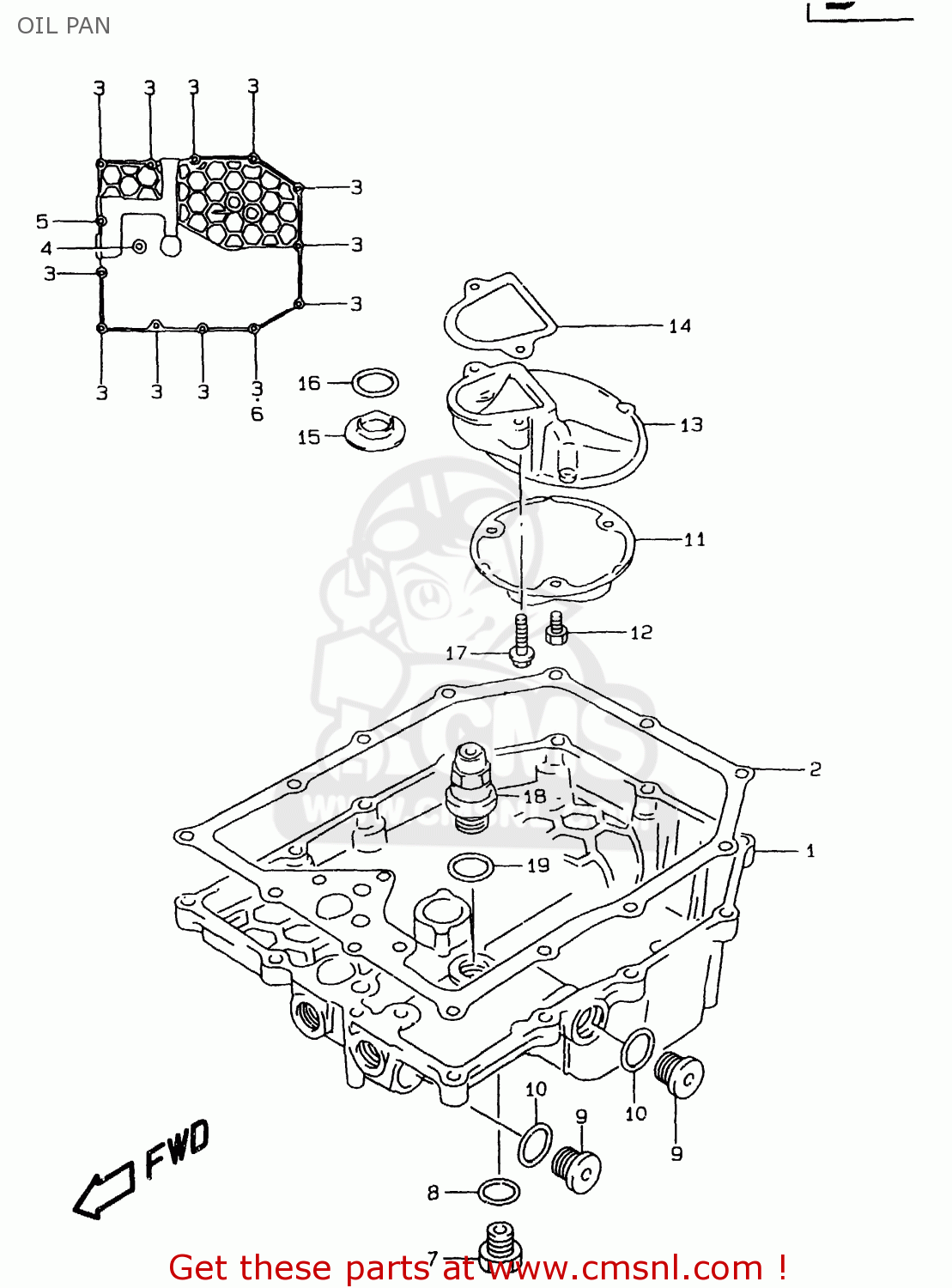

Oil pan diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

OIL PAN GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

OIL PAN GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1151126E10
ref: 1
MODEL T/V

PAN,OIL

€ 176.00

1

1151126E00
ref: 1
MODEL W/X

PAN,OIL

€ 260.50

2

1148927A20
ref: 2

GASKET,OIL PAN (NAS)

€ 23.00

3

0155006253
ref: 3

BOLT

€ 2.50

4

0155006303
ref: 4

BOLT

€ 2.50

5

0155006503
ref: 5

BOLT

€ 2.00

6

0916806024
ref: 6

GASKET(5.8X11X1.2) (NAS)

€ 2.00

7

0924714001
ref: 7

PLUG

€ 5.00

8

0916814002
ref: 8

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

9

0924816010
ref: 9

PLUG

€ 4.50

10

0916816002
ref: 10

GASKET(16X22X2) (NAS)

€ 2.00

11

1652009301
ref: 11

STRAINER,ENGINE OIL

€ 14.00

12

0157006123
ref: 12

BOLT

€ 1.50

13

1652506B00
ref: 13

PROTECTOR,OIL STRAINER

€ 33.50

14

1652827A20
ref: 14

GASKET,OIL STRAINER PROTECTOR (NAS)

€ 9.00

15

1652927A01
ref: 15

GASKET,OIL OUTLET (NAS)

€ 2.00

16

0928018009
ref: 16

O RING(D:3.2,ID:17.8)

€ 8.00

17

0155006253
ref: 17

BOLT

€ 2.50

18

1644017C01
ref: 18

VALVE ASSEMBLY,OIL RELIEF

€ 68.50

19

0916816002
ref: 19

GASKET(16X22X2) (NAS)

€ 2.00
