TURNSIGNAL LAMP

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

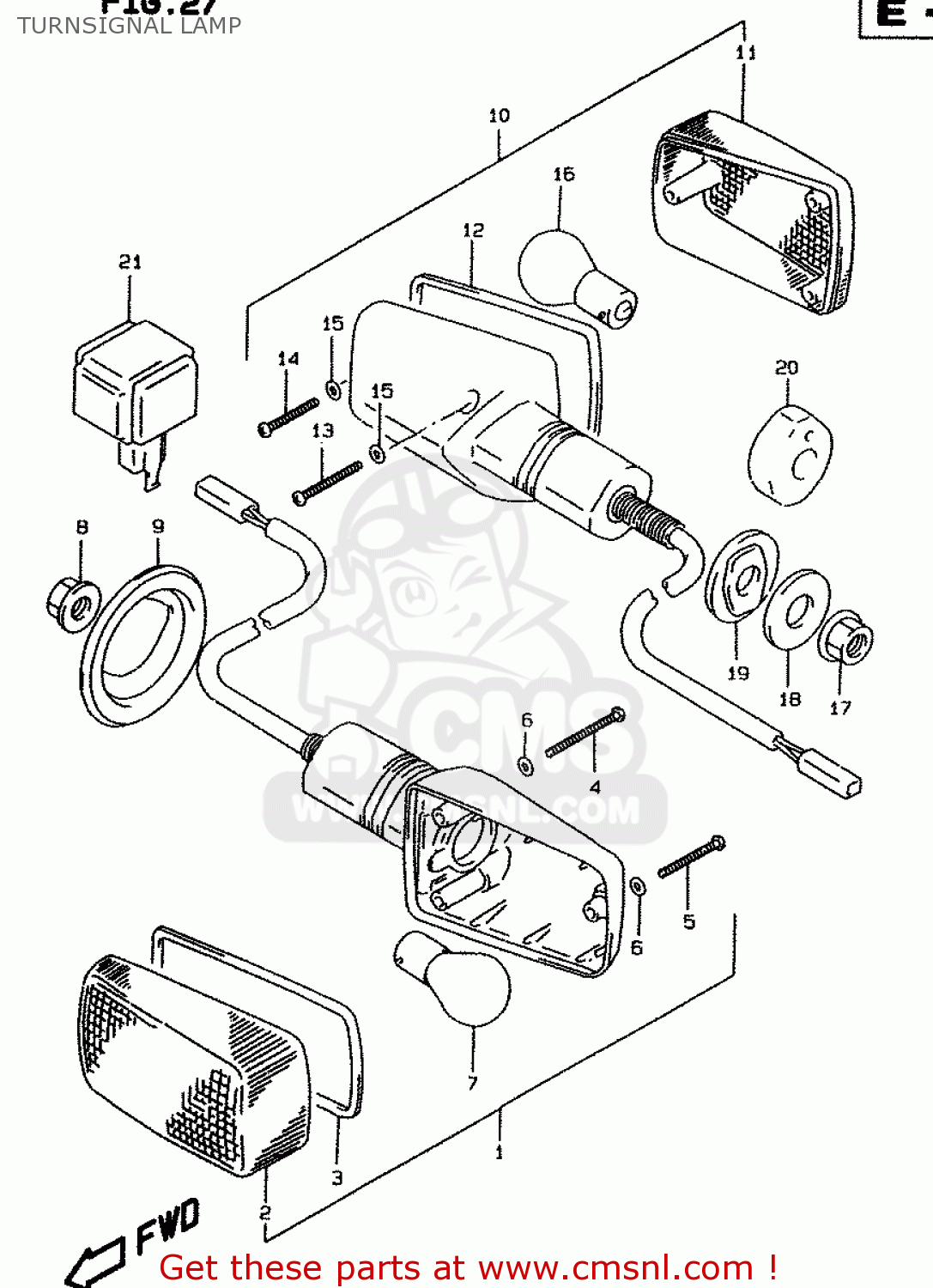

Turnsignal lamp diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

TURNSIGNAL LAMP GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

TURNSIGNAL LAMP GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3560129EC0
ref: 1

LAMP ASSY,FR TURN SIGNAL

€ 78.00

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

0831610103
ref: 8

NUT

€ 2.00

9

3567427A01
ref: 9
GSF1200ST/SV/SW/SX/S

GROMMET

€ 13.50

10

3560321E30
ref: 10

LAMP ASSY,RR TURNSIGNAL

€ 135.50

10

3560326EC0
ref: 10
E17

LAMP ASSY,RR TURNSIGNAL

€ 92.50

10

3560321EC0
ref: 10
E18

LAMP ASSY,RR TURNSIGNAL

€ 93.50

11

3565217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

0831000103
ref: 17

NUT

€ 2.00

18

0916010501
ref: 18

WASHER(10.5X30X2.3)

€ 2.50

19

3569517C00
ref: 19

SPACER,RR TURNSIGNAL

€ 3.00

20

3569503D40
ref: 20
E17

SPACER,FR TURNSIGNAL LAMP

€ 9.00

21

3861045D01
ref: 21
~F.NO.517782

RELAY ASSY,TURNSIGNAL LAMP

€ 68.50

21

3861026E00
ref: 21
F.NO.517783~

RELAY ASSY

€ 47.00

all assemblies
