FRAME (GSF1200SAV)

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

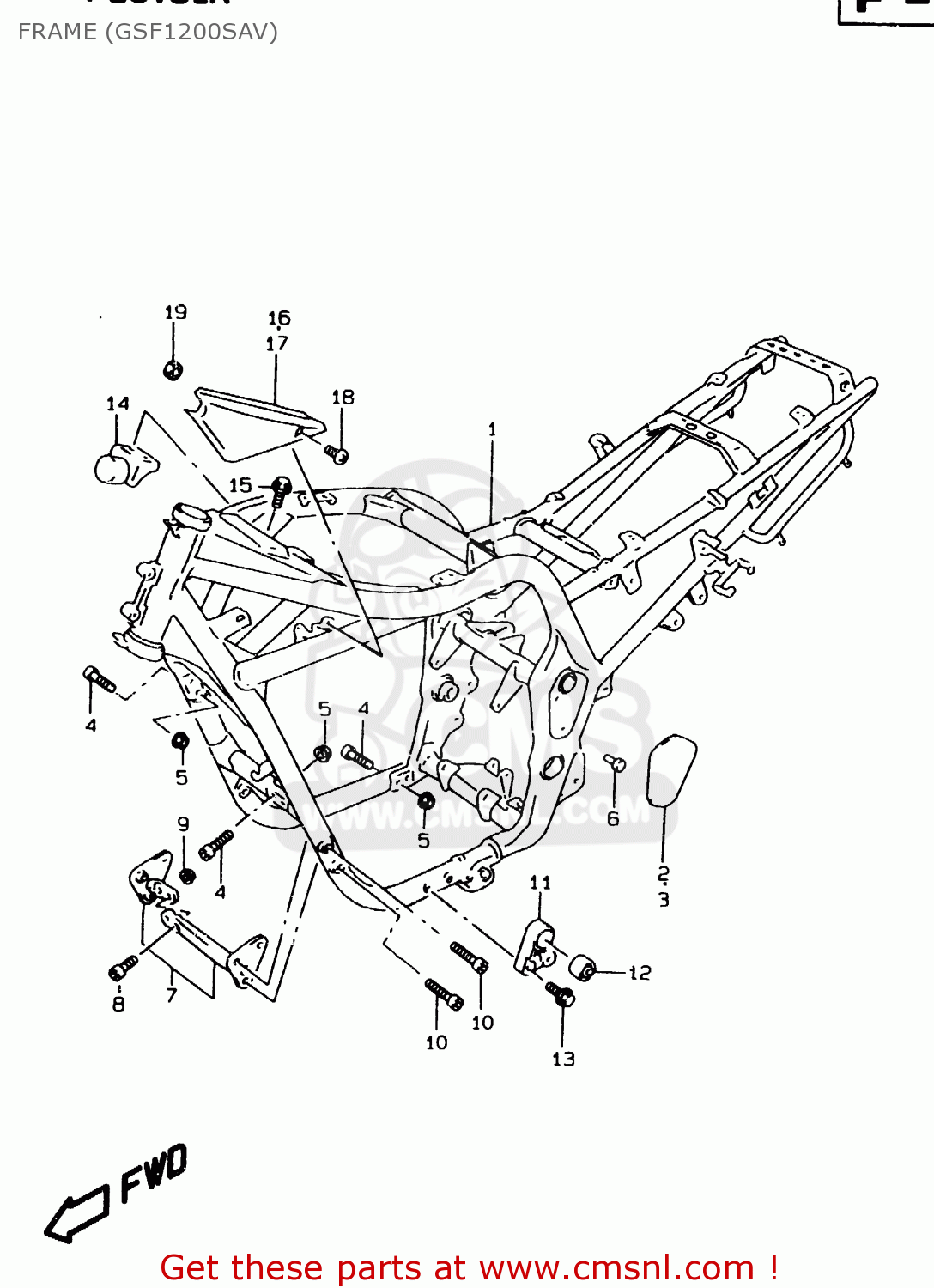

Frame (gsf1200sav) diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

FRAME (GSF1200SAV) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

FRAME (GSF1200SAV) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

4110027E2022U
ref: 1

FRAME COMP

€ 2,553.50

1

4110027E2033J
ref: 1

FRAME COMP

€ 2,553.50

1

4110027E20Y0N
ref: 1

FRAME COMP

€ 2,553.50

1

4110027E3022U
ref: 1
E18

FRAME COMP

€ 0.00

1

4110027E3033J
ref: 1
E18

FRAME COMP

€ 0.00

1

4110027E30Y0N
ref: 1
E18

FRAME COMP

€ 0.00

2

4163926E00
ref: 2

COVER,FRAME BODY,R

€ 12.50

3

4164926E00
ref: 3

COVER,FRAME BODY,L

€ 12.50

4

0910610019
ref: 4

BOLT(10X33)

€ 4.00

5

0831931103
ref: 5

NUT

€ 3.00

6

0940907329
ref: 6

CLIP

€ 3.00

7

4190027E0022U
ref: 7

PLATE ASSEMBLY,ENGINE MOUNT

€ 118.50

7

4190027E0033J
ref: 7

PLATE ASSEMBLY,ENGINE MOUNT

€ 111.00

7

4190027E00Y0N
ref: 7

PLATE ASSY,MOUNT NO.1(BLUE)

€ 115.50

8

0712010303
ref: 8

BOLT

€ 4.00

9

0831931103
ref: 9

NUT

€ 3.00

10

0713008503
ref: 10

BOLT

€ 3.50

11

4193127E50
ref: 11

BRACKET,ENGINE MOUNTING NO.2

€ 74.00

12

4193227E50
ref: 12

BUSH,ENG MOUNTING NO.2

€ 19.00

13

0712008253
ref: 13

BOLT

€ 2.50

14

4255027E50
ref: 14

DAMPER COMP,FRAME

€ 52.00

15

0155006123
ref: 15

BOLT

€ 2.50

16

4751126E00291
ref: 16

COVER,FRAME HEAD,R

€ 15.50

17

4752126E00291
ref: 17

COVER,FRAME HEAD,L

€ 22.00

18

0913905021
ref: 18

SCREW(5X12)

€ 2.00

19

0932008013
ref: 19

CUSHION

€ 4.00
