SIGNAL GENERATOR

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

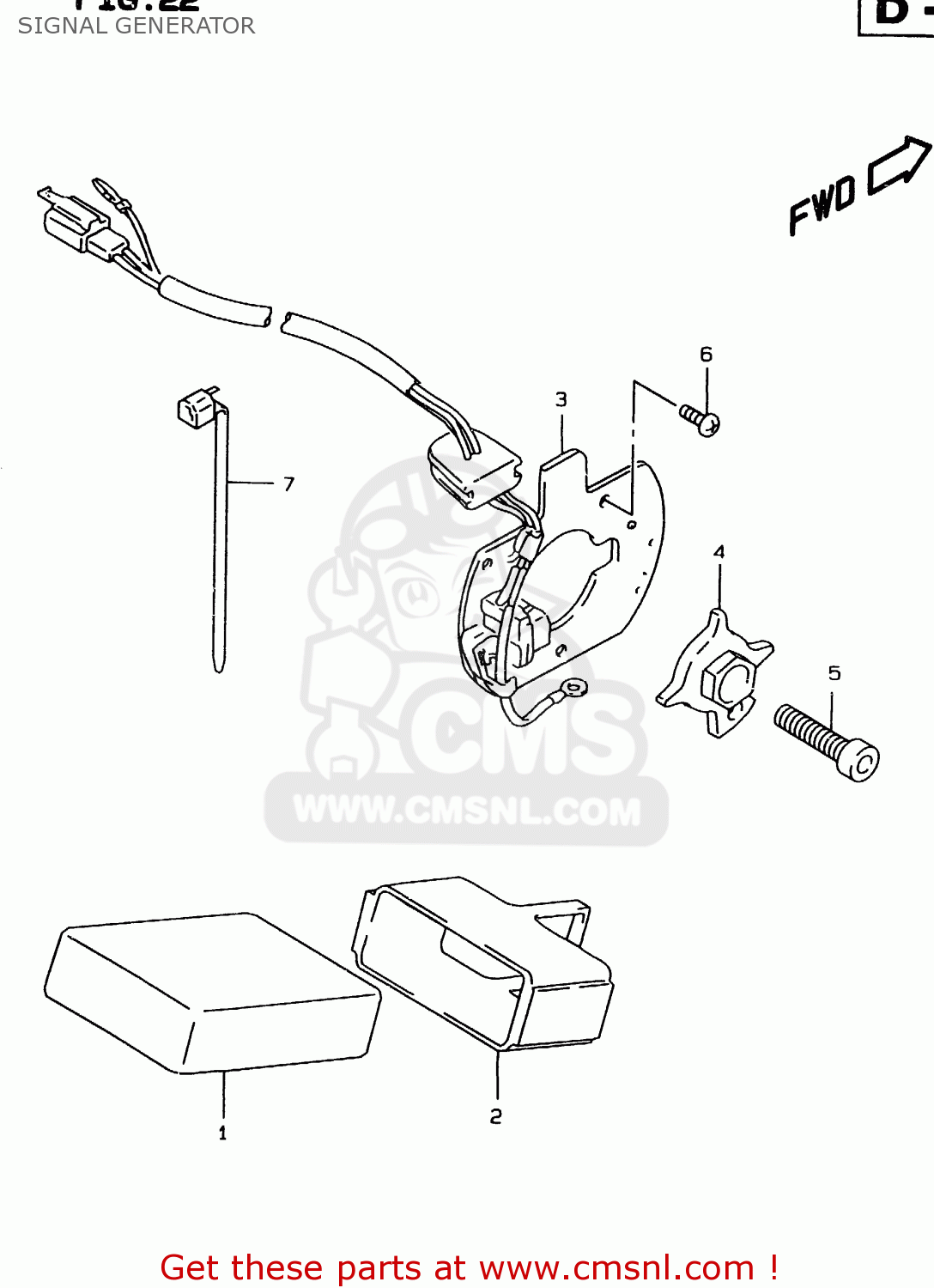

Signal generator diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

SIGNAL GENERATOR GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

SIGNAL GENERATOR GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3290027E10
ref: 1

IGNITOR ASSY

€ 605.00

1

3290027E20
ref: 1
E18

IGNITOR ASSY

€ 914.50

2

3298040C01
ref: 2

CUSHION,IGNITOR

€ 9.50

3

3311017C00
ref: 3

GENERATOR ASSY,SIGNAL

€ 324.00

4

3312019C20
ref: 4

ROTOR,SIGNAL GENERATOR

€ 182.00

5

0713008303
ref: 5

BOLT

€ 3.00

6

0211205103
ref: 6

SCREW

€ 2.00

7

0940714403
ref: 7
<-09407-11401

CLAMP(L:125)

€ 2.50
