Buy Suzuki GSF Parts Online


FRAME COVER (GSF1200X/SX)

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

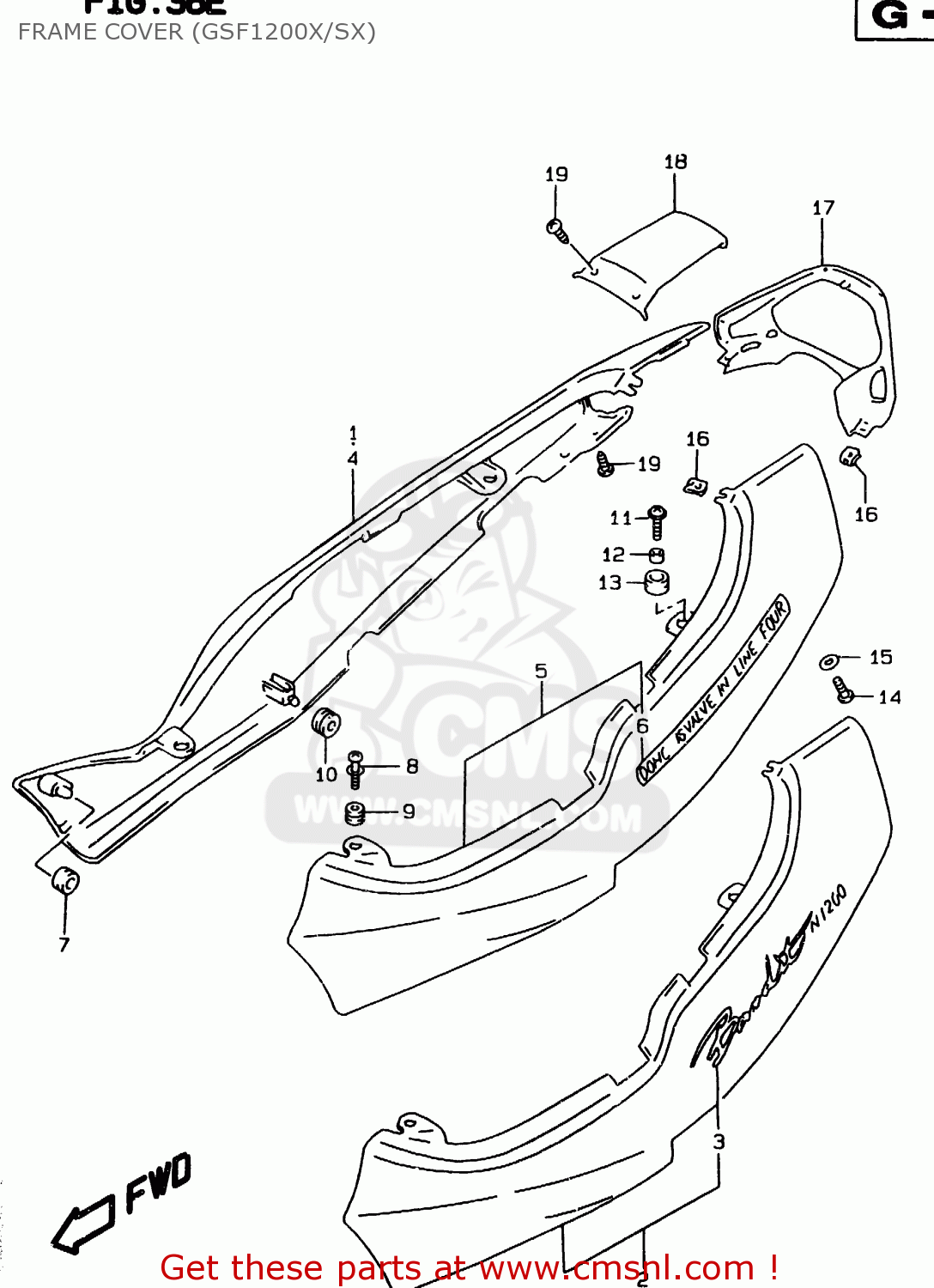

Frame cover (gsf1200x/sx) diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

FRAME COVER (GSF1200X/SX) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37
FRAME COVER (GSF1200X/SX) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37
FRAME COVER (GSF1200X/SX) GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
4711027E2022U
ref: 1
GSF1200X
COVER,FRAME,R(MAROON)
€ 179.50
1
4711027E2033J
ref: 1
GSF1200X
COVER,FRAME,R(BLACK)
4711027E2033J
€ 179.50
1
4711027E20Y7F
ref: 1
GSF1200X
COVER,FRAME,R(BROWN)
€ 165.50
1
4711027E20Y7G
ref: 1
GSF1200X
COVER,FRAME,R(GREEN)
€ 165.50
2
4721027E2022U
ref: 2
GSF1200X
COVER,FRAME,L(MAROON)
4721027E2022U
€ 179.50
2
4721027E2033J
ref: 2
GSF1200X
COVER,FRAME,L(BLACK)
4721027E2033J
€ 156.00
2
4721027E20Y7F
ref: 2
GSF1200X
COVER, FRAME LH (BROWN)
€ 153.00
2
4721027E20Y7G
ref: 2
GSF1200X
COVER,FRAME,L(GREEN)
€ 165.50
3
6813127E10F6G
ref: 3
GSF1200X FOR 22U, 33
EMBLEM,FRAME COVER
6813127E10F6G
€ 26.50
3
6813127E10L9D
ref: 3
GSF1200X FOR Y7F
EMBLEM,FRAME COVER
€ 18.00
3
6813127E10K1Z
ref: 3
GSF1200X FOR Y7G
EMBLEM,FRAME COVER
€ 17.00
4
4711026E5022U
ref: 4
GSF1200SX
COVER,FRAME,R(MAROON)
4711026E5022U
€ 174.50
4
4711026E5033J
ref: 4
GSF1200SX
COVER,FRAME,R(BLACK)
€ 172.00
4
4711026E50Y7F
ref: 4
GSF1200SX
COVER,FRAME,R(BROWN)
€ 161.00
4
4711026E50Y7G
ref: 4
GSF1200SX
COVER ASSEMBLY,FRAME,RIGHT (GREEN)
4711026E50Y7G
€ 151.50
5
4721026E5022U
ref: 5
GSF1200SX
COVER,FRAME,L(MAROON)
4721026E5022U
€ 174.50
5
4721026E5033J
ref: 5
GSF1200SX
COVER,FRAME,L(BLACK)
4721026E5033J
€ 174.50
5
4721026E50Y7F
ref: 5
GSF1200SX
COVER,FRAME,L(BROWN)
€ 161.00
5
4721026E50Y7G
ref: 5
GSF1200SX
COVER,FRAME,L(GREEN)
€ 173.50
6
6813126E3024G
ref: 6
GSF1200SX FOR 22U, 3
EMBLEM,FRAME COVER
6813126E3024G
€ 9.50
6
6813126E300FP
ref: 6
GSF1200SX FOR Y7F
EMBLEM,FRAME COVER
6813126E300FP
€ 7.00
6
6813126E301RR
ref: 6
GSF1200SX FOR Y7G
EMBLEM,FRAME COVER (GOLD)
€ 9.00
7
4716121E00
ref: 7
CUSHION,FRAME COVER FR
4716121E00
€ 7.50
8
0940910306
ref: 8
CLIP
0940910306
€ 3.00
9
0932010501
ref: 9
CUSHION
0932010501
€ 5.50
10
0932008018
ref: 10
CUSHION
0932008018
€ 4.00
11
0913606105
ref: 11
SCREW(6X20)
0913606105
€ 2.00
12
0918006286
ref: 12
SPACER(6.5X10X9.4)
0918006286
€ 2.50
13
0932010045
ref: 13
CUSHION
0932010045
€ 3.50
14
0214206163
ref: 14
SCREW
0214206163
€ 2.50
15
0916106021
ref: 15
WASHER(6.3X16X1.5)
0916106021
€ 2.50
16
0914805020
ref: 16
NUT
0914805020
€ 2.00
17
4733126E00291
ref: 17
COVER,FRAME RR
4733126E00291
€ 52.00
18
4731126E0022U
ref: 18
COVER,FRAME CTR
4731126E0022U
€ 35.00
18
4731126E0033J
ref: 18
COVER,FRAME CTR
4731126E0033J
€ 38.00
18
4731126E00Y7F
ref: 18
COVER,FRAME,CENTER (BROWN)
€ 35.50
18
4731126E00Y7G
ref: 18
COVER,FRAME CTR
€ 30.00
19
0324115123
ref: 19
SCREW
0324115123
€ 2.50
