HANDLE LEVER

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

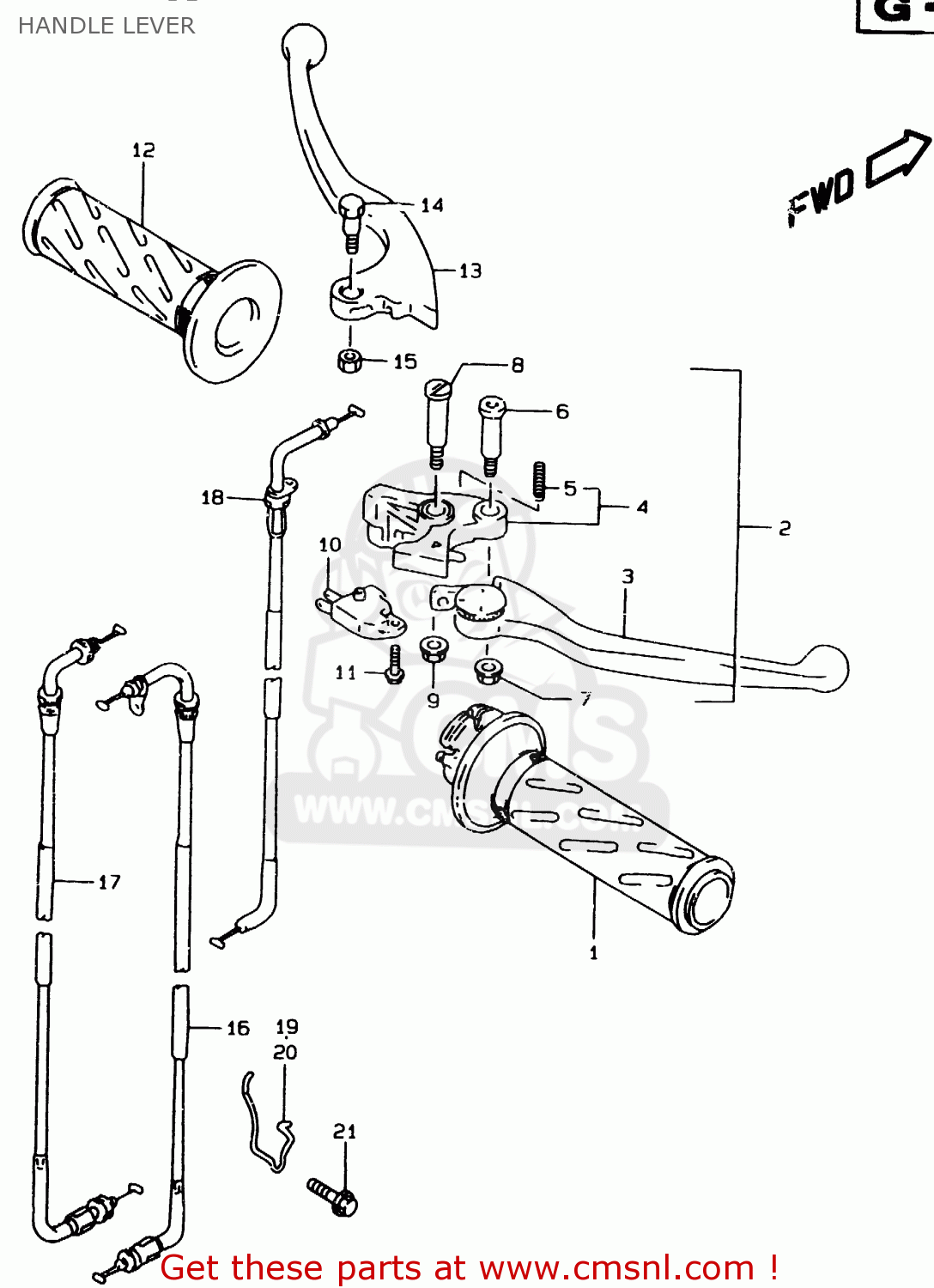

Handle lever diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

HANDLE LEVER GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

HANDLE LEVER GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

5711046E01
ref: 1

GRIP,THROTTLE

€ 26.00

2

5730040C01
ref: 2
MODEL T/V

LEVER ASSEMBLY,BRAKE

€ 75.00

2

5730040C10
ref: 2
MODEL W/X

LEVER ASSY,BRAKE

€ 75.00

3

5742032C00
ref: 3

LEVER,ADJUST

€ 39.50

4

5743040C00
ref: 4
MODEL T/V

KNOCKER

€ 51.00

4

5743040C10
ref: 4
MODEL W/X

RNOCKER

€ 51.00

5

5743832C00
ref: 5

SPRING

€ 4.00

6

5743732C01
ref: 6

BOLT,LEVER

€ 6.50

7

0831931063
ref: 7

NUT

€ 2.50

8

5743117C00
ref: 8

BOLT,LEVER PIVOT

€ 8.00

9

0831610063
ref: 9

NUT

€ 2.50

10

5746017C00
ref: 10

SWITCH ASSEMBLY,STOP

€ 32.50

11

5746517C00
ref: 11

SCREW

€ 1.50

12

5721122D01
ref: 12

GRIP,LEFT

€ 11.50

13

5762138A02
ref: 13

LEVER,CLUTCH (SILVER)

€ 31.50

14

5743105A00
ref: 14

BOLT,LEVER

€ 8.50

15

0831921063
ref: 15

NUT

€ 2.50

16

5830027E00
ref: 16

CABLE ASSY,THROTTLE NO.1

€ 54.00

17

5830027E10
ref: 17

CABLE ASSY,THROTTLE NO.2

€ 49.00

18

5841027E10
ref: 18
MODEL T/V/W

CABLE,STARTER

€ 45.00

18

5841027E11
ref: 18
MODEL X

CABLE,STARTER

€ 45.00

19

5862127E00
ref: 19

GUIDE,CABLE NO.1

€ 10.00

20

5862227E00
ref: 20

GUIDE,CABLE NO.2

€ 6.00

21

0155006163
ref: 21

BOLT

€ 2.50
