STAND

GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

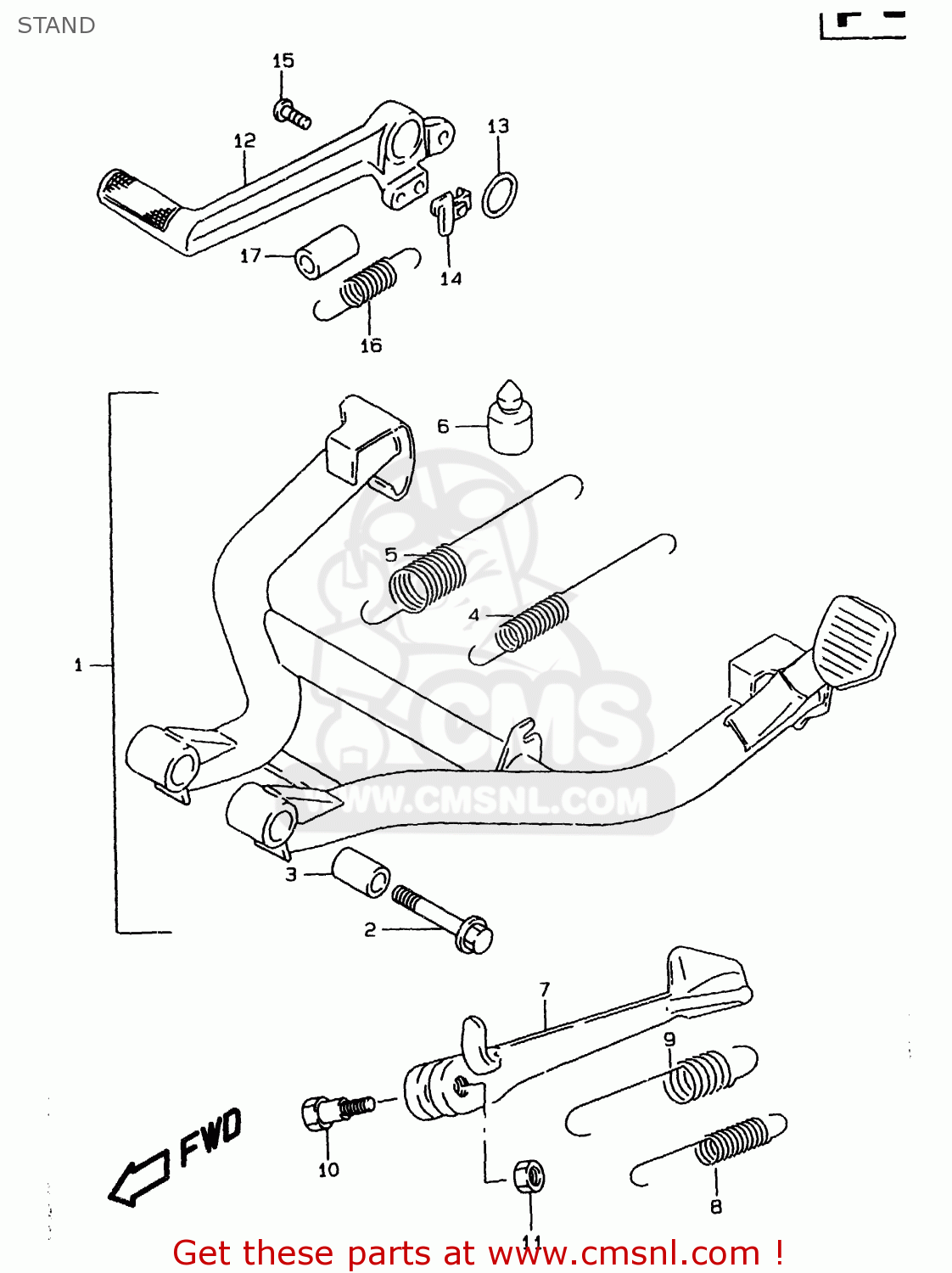

Stand diagram GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

STAND GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

STAND GSF1200 1998 (W) (E02 E04 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

4210026821
ref: 1
MODEL T

STAND,CENTER

€ 173.50

1

4210026822
ref: 1
MODEL V/W/X

STAND SET,CTR

€ 173.50

2

0910310126
ref: 2

BOLT(10X48)

€ 5.00

3

0918010113
ref: 3

SPACER(10X16X25.5)

€ 14.50

4

0944314059
ref: 4

SPRING

€ 10.50

5

0944322013
ref: 5

SPRING OUTER

€ 7.00

6

0932110017
ref: 6

CUSHION

€ 6.00

7

4231027E01
ref: 7

STAND,PROP

€ 118.50

8

0944312036
ref: 8

SPRING

€ 8.00

9

0944319010
ref: 9

SPRING

€ 7.50

10

0911110027
ref: 10

BOLT(10X34)

€ 4.00

11

0915910027
ref: 11
MODEL T/V/W

NUT

€ 3.50

11

0831921103
ref: 11
MODEL X

NUT

€ 2.50

12

4311131E01
ref: 12

PEDAL,BRAKE

€ 106.00

13

0916018022
ref: 13

WASHER(18X24X1)

€ 3.00

14

4356032C00
ref: 14

BRACKET,STOP LAMP SWITCH SPR

€ 3.00

15

0211205163
ref: 15

SCREW

€ 2.50

16

0944313029
ref: 16

SPRING

€ 6.00

17

4326117C00
ref: 17

TUBE,BRAKE SPRING GUIDE

€ 6.00
