CRANKCASE COVER

GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

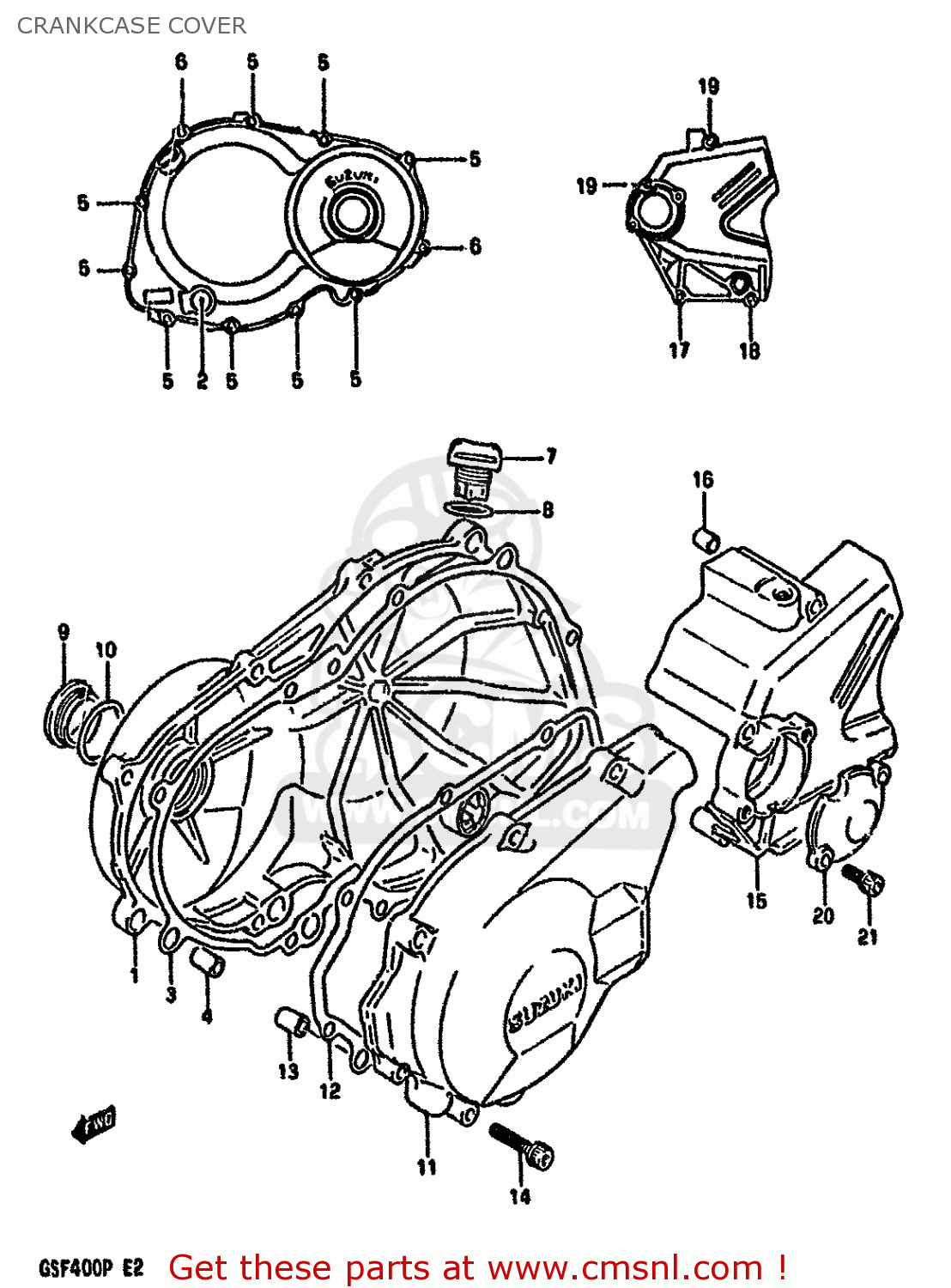

Crankcase cover diagram GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)

CRANKCASE COVER GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
CRANKCASE COVER GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
CRANKCASE COVER GSF400 1993 (P) (E02 E04 E16 E21 E22 E25 E30 E34 E53)
prices are in EUR
ref
part #
description
quantity
1
1134010D00
ref: 1
COVER,CLUTCH
€ 193.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
1197145010
€ 13.00
3-1
1148232C01
ref: 3-1
MODEL M
GASKET,CLUTCH COVER (NAS)
€ 24.50
3-2
1148232C11
ref: 3-2
MODEL N/P
GASKET,CLUTCH COVER (NAS)
1148232C11
€ 24.50
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0711006255
ref: 5
BOLT
0711006255
€ 3.00
6
0711006355
ref: 6
BOLT
€ 3.50
7
1197120A00
ref: 7
PLUG,OIL FILLE
1197120A00
€ 7.00
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
9
0925936007
ref: 9
PLUG
0925936007
€ 10.50
10
0928033004
ref: 10
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
11
1135110D01
ref: 11
COVER,STARTER GEAR
1135110D01
€ 120.00
12-1
1148330B01
ref: 12-1
MODEL M
GASKET,MAGNETO COVER (NAS)
€ 12.00
12-2
1148330B10
ref: 12-2
MODEL N/P
GASKET,STARTER GEAR COVER (NAS)
1148330B10
€ 12.00
13
0920611005
ref: 13
PIN (11X20)(SUS)
€ 6.50
14
0711006255
ref: 14
BOLT
0711006255
€ 3.00
15
1136110D00
ref: 15
COVER,SPROCKET
1136110D00
€ 102.50
16
0421109129
ref: 16
PIN
0421109129
€ 2.00
17
0711006355
ref: 17
BOLT
€ 3.50
18
0711006605
ref: 18
BOLT
€ 3.00
19
0711006805
ref: 19
BOLT
€ 3.00
20
1138710D00
ref: 20
CAP,CLUTCH RELEASE ADJUST
1138710D00
€ 22.50
21
0910606055
ref: 21
BOLT
0910606055
€ 2.50
